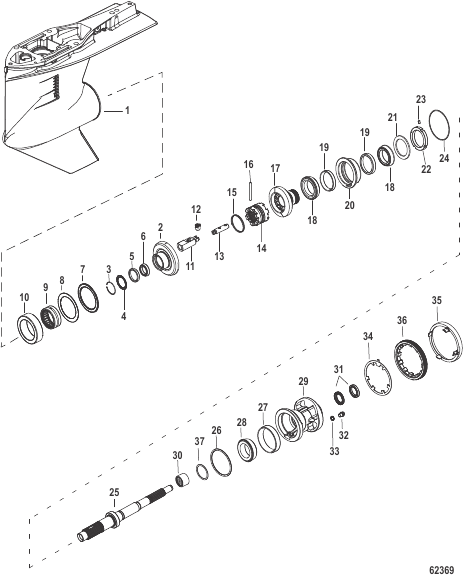

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0107156 |
GEAR HOUSING ASSEMBLY Complete, CXL
|
1 |
|
| 1 |
8M0057747 |
GEAR HOUSING Basic
|
1 |
|
| 10 |
8M0064369 |
BEARING ADAPTER Reverse Gear
|
1 |
|
| 11 |
8M0031018 |
FOLLOWER Cam (LH)
|
1 |
|
| 12 |
8M0077490 |
CAM Shift
|
1 |
|
| 13 |
8M0057749 |
ROD Clutch Actuator
|
1 |
|
| 14 |
8M0094479 |
CLUTCH Sliding, 6 Jaw
|
1 |
|
| 15 |
8M0047945 |
SPRING Retaining
|
1 |
|
| 16 |
8M0045759 |
PIN Cross
|
1 |
|
| 17 |
8M0107833 |
GEAR SET FORWARD/PINION (25T LH)
|
1 |
|
| 18 |
8M0094485 |
TAPERED ROLLER BEARING SET
|
2 |
|
| 19 |
NSS |
NOT SOLD SEPARATE
|
2 |
|
| 2 |
8M0107834 |
GEAR KIT Reverse 25T
|
1 |
|
| 20 |
8M0094486 |
ADAPTER Bearing, Forward Gear
|
1 |
|
| 21 |
8M0064177 |
WASHER Thrust
|
1 |
|
| 22 |
8M0094488 |
LOCK NUT
|
1 |
superseded
|
| 23 |
8M0066130 |
SCREW- HALF DOG POINT SET
|
1 |
|
| 24 |
8M0094490 |
SHIM SET
|
1 |
superseded
|
| 25 |
8M0088079 |
SHAFT - PROPELLER LH
|
1 |
|
| 26 |
8M0030845 |
O-RING 3.975X.210
|
1 |
|
| 27 |
884330T01 |
BEARING ASSEMBLY Taper
|
1 |
superseded
|
| 28 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 29 |
8M0094495 |
BEARING CARRIER C/R
|
1 |
|
| 3 |
8M0094502 |
RING Internal Retaining
|
1 |
|
| 30 |
8M0064306 |
SPACER Thrust
|
1 |
|
| 31 |
888483 |
SEAL Oil
|
2 |
superseded
|
| 32 |
8M0071653 |
SCREW Special, .375-16 UNC
|
1 |
|
| 33 |
830749 |
SEAL
|
1 |
superseded
|
| 34 |
8M0030784 |
WASHER Keyed
|
1 |
|
| 35 |
8M0054695 |
SLEEVE Propeller Bore
|
1 |
superseded
|
| 36 |
8M0030785 |
RETAINER Bearing Carrier
|
1 |
superseded
|
| 37 |
8M0076745 |
SHIM SET
|
1 |
|
| 4 |
8M0064432 |
WASHER Thrust
|
1 |
|
| 5 |
8M0094499 |
BEARING SET Taper Roller
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 7 |
815480 |
BEARING Thrust
|
1 |
|
| 8 |
815481 |
THRUST WASHER
|
1 |
|
| 9 |
8M0094497 |
BEARING Needle Roller
|
1 |
|
