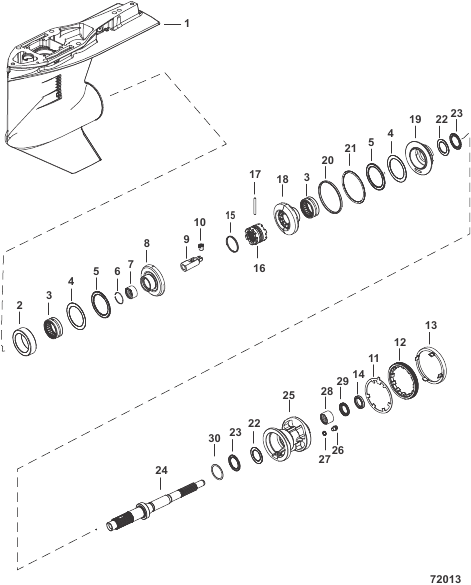

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0061029 |
GEAR HOUSING ASSEMBLY Complete, CXL
|
1 |
superseded
|
| 1 |
8M0057747 |
GEAR HOUSING Basic
|
1 |
|
| 10 |
8M0077490 |
CAM Shift
|
1 |
|
| 11 |
8M0030784 |
WASHER Keyed
|
1 |
|
| 12 |
8M0030785 |
RETAINER Bearing Carrier
|
1 |
superseded
|
| 13 |
8M0054695 |
SLEEVE Propeller Bore
|
1 |
superseded
|
| 14 |
76868 |
SEAL
|
1 |
superseded
|
| 15 |
8M0047945 |
SPRING Retaining
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 17 |
8M0045759 |
PIN Cross
|
1 |
|
| 18 |
8M0065268 |
GEAR SET Forward, 25T, Left Hand
|
1 |
|
| 19 |
8M0031509 |
BEARING ADAPTER Forward Gear
|
1 |
|
| 2 |
8M0031508 |
ADAPTER Reverse Gear
|
1 |
|
| 20 |
8M0038346 |
SHIM 5.316
|
AR |
|
| 20 |
8M0038347 |
SHIM 5.366
|
AR |
|
| 20 |
8M0038348 |
SHIM 5.416
|
AR |
|
| 20 |
8M0038349 |
SHIM 5.466
|
AR |
|
| 20 |
8M0038350 |
SHIM 5.516
|
AR |
|
| 20 |
8M0038351 |
SHIM 5.566
|
AR |
|
| 20 |
8M0038352 |
SHIM 5.616
|
AR |
|
| 20 |
8M0038353 |
SHIM 5.666
|
AR |
|
| 20 |
8M0038354 |
SHIM 5.716
|
AR |
|
| 20 |
8M0038355 |
SHIM 5.766
|
AR |
|
| 20 |
8M0038356 |
SHIM 5.816
|
AR |
|
| 21 |
8M0030845 |
O-RING 3.975X.210
|
1 |
|
| 22 |
18448 |
THRUST WASHER
|
2 |
|
| 23 |
15842 |
BEARING Thrust
|
2 |
|
| 24 |
8M0061835 |
PROPELLER SHAFT Left Hand
|
1 |
superseded
|
| 25 |
8M0031510 |
BEARING CARRIER Counter
|
1 |
|
| 26 |
880717A01 |
SCREW/SEAL KIT .38 Inch Long
|
1 |
|
| 26 |
8M0077071 |
SCREW/SEAL KIT .75 Inch Long
|
1 |
|
| 27 |
830749 |
SEAL
|
1 |
superseded
|
| 28 |
30956T |
BEARING Needle
|
1 |
|
| 29 |
14077 |
SEAL Oil
|
1 |
|
| 3 |
814653001 |
BEARING ASSEMBLY Needle Rollers
|
2 |
superseded
|
| 30 |
8M0076745 |
SHIM SET
|
1 |
|
| 4 |
815481 |
THRUST WASHER
|
2 |
|
| 5 |
815480 |
BEARING Thrust
|
2 |
|
| 6 |
8M0031506 |
RING Retaining
|
1 |
superseded
|
| 7 |
8M0057742 |
BEARING Needle
|
1 |
|
| 8 |
8M0065074 |
GEAR Reverse, 25T, Left Hand
|
1 |
disc.
|
| 9 |
8M0031018 |
FOLLOWER Cam (LH)
|
1 |
|
