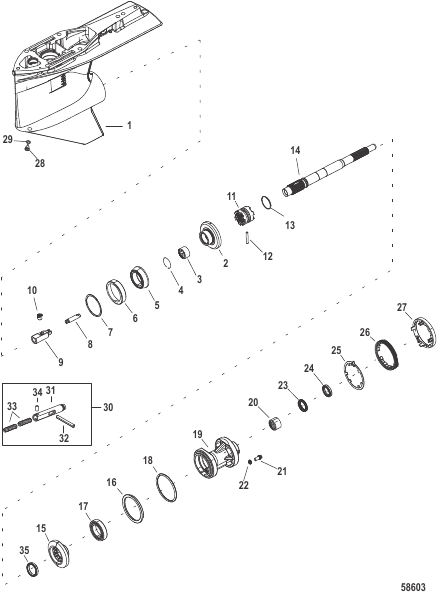

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0099909 |
GEAR HOUSING ASSEMBLY Complete, Long SeaPro
|
1 |
|
| - |
8M0099910 |
GEAR HOUSING ASSEMBLY Complete, X-Long SeaPro
|
1 |
|
| 1 |
8M0099907 |
GEAR HOUSING Basic SeaPro
|
1 |
|
| 10 |
8M0077490 |
CAM Shift Bellcrank
|
1 |
|
| 11 |
8M0094479 |
CLUTCH Sliding, 6 Jaw
|
1 |
|
| 12 |
8M0045759 |
PIN Cross
|
1 |
|
| 13 |
8M0047945 |
SPRING Retaining
|
1 |
|
| 14 |
8M0057750 |
SHAFT Propeller, Right Hand
|
1 |
superseded
|
| 15 |
8M0096705 |
GEAR ASSEMBLY Reverse
|
1 |
|
| 16 |
8M0030779 |
THRUST RING
|
1 |
|
| 17 |
88957T |
BEARING Ball
|
1 |
|
| 18 |
8M0030845 |
O-RING 3.975X.210
|
1 |
|
| 19 |
8M0030856 |
SPOOL Bearing Carrier
|
1 |
superseded
|
| 2 |
8M0096704 |
GEAR SET Forward/Pinion
|
1 |
|
| 20 |
30956T |
BEARING Needle
|
1 |
|
| 21 |
880717A01 |
SCREW/SEAL KIT .38 Inch Long
|
1 |
|
| 21 |
8M0077071 |
SCREW/SEAL KIT .75 Inch Long
|
1 |
|
| 22 |
830749 |
SEAL
|
1 |
superseded
|
| 23 |
14077 |
SEAL Oil
|
1 |
|
| 24 |
76868 |
SEAL
|
1 |
superseded
|
| 24 |
12224 |
SEAL Fish Line Cutting
|
1 |
|
| 25 |
8M0030784 |
WASHER Keyed
|
1 |
|
| 26 |
8M0030785 |
RETAINER Bearing Carrier
|
1 |
superseded
|
| 27 |
8M0054695 |
SLEEVE Propeller Bore
|
1 |
superseded
|
| 28 |
67892002 |
SCREW Magnetic
|
1 |
|
| 29 |
830749 |
SEAL
|
1 |
superseded
|
| 3 |
8M0057742 |
BEARING Needle
|
1 |
|
| 30 |
8M0120367 |
ACTUATOR KIT Double Acting Shift Design 2 SeaPro [2B384875] & Up
|
1 |
|
| 31 |
8M0102962 |
ROD CLUTCH ACTUATOR
|
1 |
|
| 32 |
8M0029113 |
PIN Cross
|
1 |
|
| 33 |
8M0096707 |
SPRING Compression
|
2 |
|
| 34 |
8M0084245 |
PIN Spring Locator
|
1 |
|
| 35 |
824108 |
SPACER
|
1 |
|
| 4 |
8M0031506 |
RING Retaining
|
1 |
superseded
|
| 5 |
8M0057724 |
BEARING ASSY Roller, Taper
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 7 |
47397A1 |
SHIM SET
|
1 |
|
| 8 |
8M0057749 |
ROD Clutch Actuator Design 1 [2B384874] & Below
|
1 |
|
| 9 |
8M0072550 |
FOLLOWER Cam, (RH) Bellcrank
|
1 |
|
