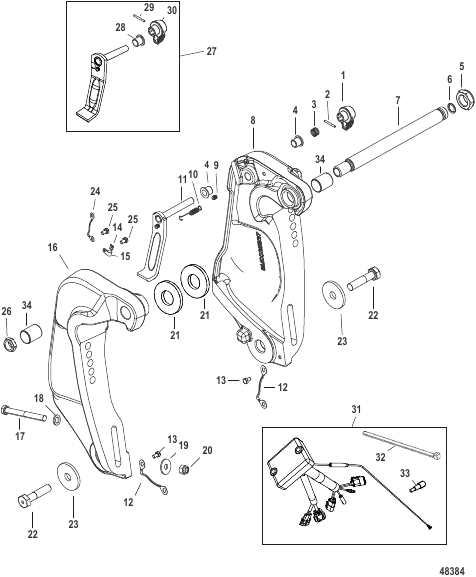

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0007470 |
KNOB
|
1 |
|
| 10 |
830899 |
SPRING Tension
|
1 |
|
| 11 |
8M0034841 |
LEVER ASSY Tilt Lock
|
1 |
superseded
|
| 12 |
8M0062746 |
CABLE ASSEMBLY
|
2 |
|
| 13 |
4000325 |
SCREW (M6 x 8)
|
2 |
|
| 14 |
8M0056607 |
C-WASHER
|
1 |
superseded
|
| 15 |
8M0051768 |
CLAMP Cable .375
|
1 |
|
| 16 |
8M0061365 |
TRANSOM BRACKET Starboard, Painted Black
|
1 |
|
| 16 |
8M0230844 |
TRANSOM BRACKET Starboard, Painted Silver
|
1 |
|
| 17 |
8M0071543 |
SCREW (.500-20 x 5.00 HX HD)
|
2 |
superseded
|
| 18 |
54012 |
WASHER (.530 x .870 x .105) Stainless Steel
|
4 |
superseded
|
| 19 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
2 |
superseded
|
| 2 |
8M0021914 |
PIN (.125 x 30 mm)
|
1 |
|
| 20 |
82671117 |
NUT (.500-20)
|
1 |
|
| 21 |
8M0057591 |
WASHER Thrust
|
2 |
|
| 22 |
8M0041013 |
SCREW M8X1.25 HEX HD
|
2 |
|
| 23 |
8M0054606 |
WASHER Flat 31.69 OD X 9.01 ID X 3.048 THK
|
2 |
|
| 24 |
8M0050046 |
CABLE ASSEMBLY
|
1 |
|
| 25 |
4010610 |
SCREW (M6 x 10) Stainless Steel
|
1 |
|
| 26 |
826164 |
NUT (.875-14)
|
1 |
superseded
|
| 27 |
8M0072610 |
TILT LOCK LEVER KIT-F150 Used only with splash well intrusion issues
|
1 |
|
| 28 |
8M0054598 |
BEARING Tilt Lock .05 inch ID FLG
|
1 |
|
| 29 |
8M0021914 |
PIN (.125 x 30 mm)
|
1 |
|
| 3 |
830900 |
SPRING Compression
|
1 |
|
| 30 |
8M0007470 |
KNOB
|
1 |
|
| 31 |
8M0059532 |
TRIM LIMIT MODULE
|
1 |
|
| 32 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 33 |
13541 |
PLUG Male
|
1 |
|
| 34 |
8M0059091 |
BEARING Tilt pin 26.38IDX42LG
|
2 |
|
| 4 |
8M0054598 |
BEARING Tilt Lock .05 inch ID FLG
|
2 |
|
| 5 |
826135 |
NUT Lock (1.00-14) Nylon Insert
|
1 |
|
| 6 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 7 |
826125A1 |
TILT TUBE
|
1 |
|
| 8 |
8M0057721 |
TRANSOM BRACKET Port, Painted Black
|
1 |
|
| 8 |
8M0230843 |
TRANSOM BRACKET Port, Painted Silver
|
1 |
|
| 9 |
893709 |
PIN
|
1 |
|
