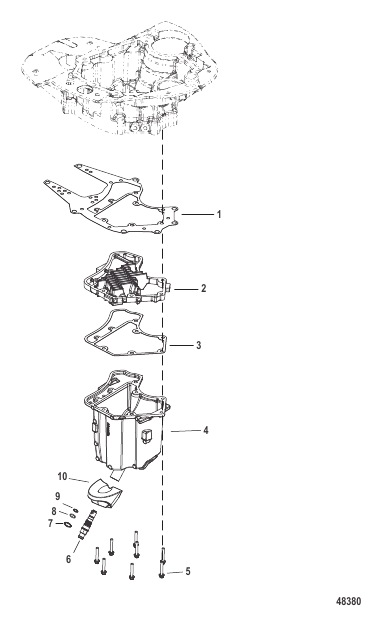

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0038753 | GASKET DSH/ADP Plate | 1 | |
| 10 | 8M0034754 | SEAL Oil Tank | 1 | |
| 2 | 8M0057714 | OIL COOLER | 1 | |
| 3 | 8M0046588 | GASKET Cooler to Sump | 1 | |
| 4 | 8M0038428 | OIL SUMP | 1 | superseded |
| 5 | 88552540 | SCREW (M6 x 40 MM) Stainless Steel | 8 | superseded |
| 6 | 8M0045813 | OIL PLUG ASSEMBLY | 1 | superseded |
| 7 | 85045 | O-RING (.551 x .070) | 1 | |
| 8 | 62706 | O-RING (.426 x .070) | 1 | |
| 9 | 8M0036228 | O-RING (8.1 X 1.6) | 1 |
