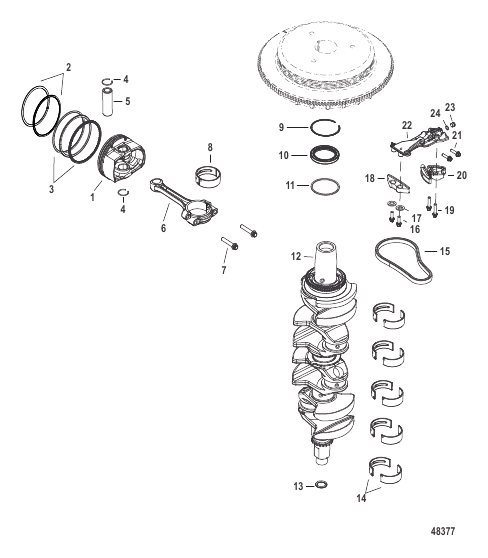

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0057661 |
PISTON ASSEMBLY [2B038048] & Below
|
4 |
superseded
|
| 1 |
8M0098836 |
PISTON ASSEMBLY [2B038049] & Up
|
4 |
disc.
|
| 1 |
8M0166302 |
PISTON ASSEMBLY Oversized .02
|
4 |
|
| 1 |
8M0166303 |
PISTON ASSEMBLY Oversized .03
|
4 |
|
| 10 |
8M0035127 |
SEAL Top main brg flywheel end
|
1 |
|
| 11 |
8M0036025 |
SPACER
|
1 |
|
| 12 |
8M0057666 |
CRANKSHAFT ASSY
|
1 |
|
| 13 |
8M0034912 |
O-RING 3.78 X 21.32
|
1 |
|
| 14 |
8M0057665 |
BEARING SET Main, Orange [2B203613] & Below
|
AR |
|
| 14 |
8M0109951 |
BEARING SET Main, Orange [2B203614] & Up
|
AR |
|
| 14 |
8M0057681 |
BEARING SET Main, White [2B203613] & Below
|
AR |
|
| 14 |
8M0109950 |
BEARING SET Main, White [2B203614] & Up
|
AR |
|
| 14 |
8M0057683 |
BEARING SET Main, Blue [2B203613] & Below
|
AR |
|
| 14 |
8M0109949 |
BEARING SET Main, Blue [2B203614] & Up
|
AR |
|
| 14 |
8M0057689 |
BEARING SET Main, Green [2B203613] & Below
|
AR |
|
| 14 |
8M0109953 |
BEARING SET Main, Green [2B203614] & Up
|
AR |
|
| 15 |
8M0057669 |
CHAIN Balance Shaft
|
1 |
|
| 16 |
88552520 |
SCREW (M6 x 20 MM) Stainless Steel
|
2 |
superseded
|
| 17 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
2 |
superseded
|
| 18 |
8M0056226 |
BALANCE SHAFT Vespel
|
1 |
superseded
|
| 19 |
88552530 |
SCREW (M6 x 30 MM) Stainless Steel
|
2 |
superseded
|
| 2 |
8M0084139 |
PISTON RING SET [2B038048] & Below
|
4 |
|
| 2 |
8M0098837 |
PISTON RING SET [2B038049] & Up
|
4 |
|
| 2 |
8M0166306 |
PISTON RING SET Oversized .02
|
4 |
|
| 2 |
8M0166307 |
PISTON RING SET Oversized .03
|
4 |
|
| 20 |
8M0057672 |
HYDRAULIC TENSIONER ASSY Vespel
|
1 |
superseded
|
| 21 |
8M0058350 |
SCREW M6X1X25
|
2 |
|
| 22 |
8M0056539 |
TENSIONER BRACKET Hydraulic
|
1 |
superseded
|
| 23 |
8M0087447 |
PLUG (10MM)
|
1 |
|
| 24 |
NSS |
NOT SOLD SEPARATE O-ring, M1.5 X 7
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE OIL RING ASSEMBLY
|
4 |
|
| 4 |
8M0057629 |
CIRCLIP Piston [2B038048] & Below
|
8 |
|
| 4 |
881184 |
CIRCLIP [2B038049] & Up
|
8 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Wrist pin
|
4 |
|
| 6 |
8M0057663 |
CONNECTING ROD ASSEMBLY
|
4 |
superseded
|
| 7 |
8M0046300 |
BOLT Rod
|
8 |
superseded
|
| 8 |
8M0057664 |
BEARING Connecting Rod, Orange
|
AR |
|
| 8 |
8M0057691 |
BEARING Connecting Rod, White
|
AR |
|
| 8 |
8M0057692 |
BEARING Connecting Rod,Navy Blue
|
AR |
|
| 9 |
8M0035288 |
RETAINING RING
|
1 |
superseded
|
