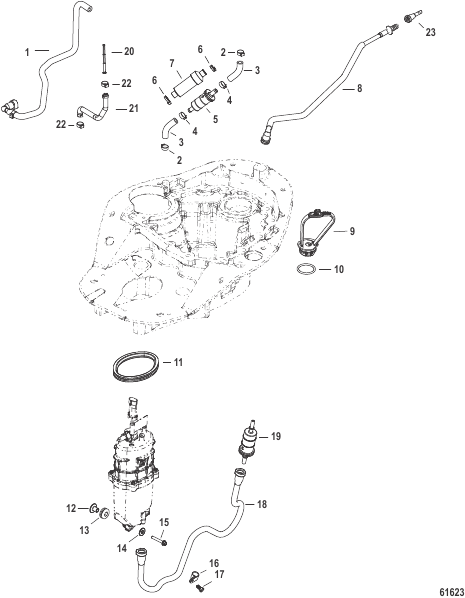

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0154660 |
FUEL FILTER KIT [2B178186] & Up
|
1 |
|
| 1 |
8M0034897 |
HOSE Manifold Ref
|
1 |
|
| 10 |
8M0240822 |
O RING (.921 x .139)
|
1 |
|
| 11 |
8M0037209 |
GROMMET FSM Retainer
|
1 |
|
| 12 |
856954 |
BUSHING
|
1 |
|
| 13 |
834985 |
GROMMET
|
1 |
superseded
|
| 14 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
1 |
|
| 15 |
88552525 |
SCREW (M6 x 25 MM) Stainless Steel
|
1 |
superseded
|
| 16 |
8M0037098 |
CLIP Hose
|
1 |
superseded
|
| 17 |
8M0037204 |
SCREW Nylon, Push-In (.25-20 x .50)
|
1 |
|
| 18 |
8M0028127 |
HOSE Fuel- Filter to FSM
|
1 |
superseded
|
| 19 |
879885Q |
FILTER Fuel In-Line
|
1 |
|
| 2 |
888988028 |
CLAMP (16.2 mm) [2B178185] & Below
|
2 |
superseded
|
| 20 |
8M0090809 |
SCREEN Fuel Rail
|
1 |
|
| 21 |
8M0095536 |
HOSE FSM to Fuel Rail
|
1 |
|
| 22 |
855697 |
CLAMP
|
2 |
superseded
|
| 23 |
8M6002065 |
FITTING 10MM
|
1 |
|
| 3 |
8M0028121 |
HOSE FSM to Rail [2B178185] & Below
|
2 |
disc.
|
| 4 |
888988028 |
CLAMP (16.2 mm) [2B178185] & Below
|
2 |
superseded
|
| 5 |
8M0057677 |
FUEL FILTER Inline [2B178185] & Below
|
1 |
disc.
|
| 6 |
816311T |
TIE STRAP (8.00 Inches) [2B178185] & Below
|
1 |
|
| 7 |
8M0059106 |
SLEEVE Static, Dia 19.05 [2B178185] & Below
|
1 |
disc.
|
| 8 |
8M0028125 |
HOSE Fuel- Inlet to Filter
|
1 |
superseded
|
| 9 |
8M0057680 |
RETAINER Fuel Filter
|
1 |
|
