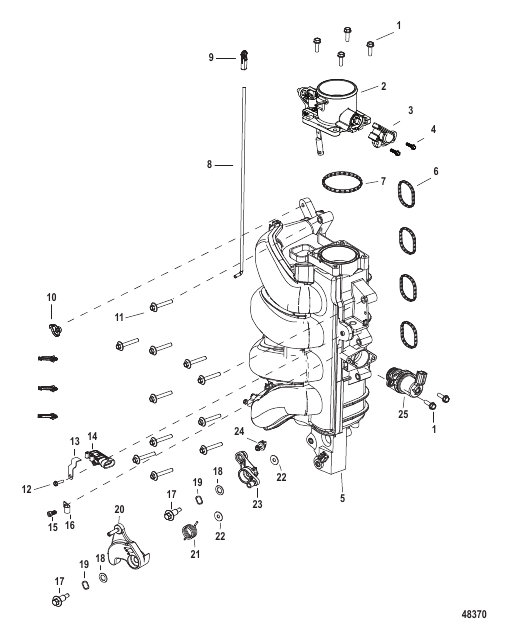

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
897445501 |
SCREW (M6 x 20 MM)
|
6 |
|
| 10 |
899145 |
CLIP Tie Strap
|
4 |
|
| 11 |
8M0047308 |
SCREW M6X1X40 HEX FLNG HD
|
11 |
superseded
|
| 12 |
895054 |
SCREW (M4 x 16 MM)
|
1 |
|
| 13 |
8M0047951 |
BRACKET Map
|
1 |
|
| 14 |
854445 |
SENSOR MAP
|
1 |
|
| 15 |
8M0037204 |
SCREW Nylon, Push-In (.25-20 x .50)
|
1 |
|
| 16 |
22740 |
CLIP
|
1 |
|
| 17 |
8M0010411 |
BOLT
|
2 |
superseded
|
| 18 |
897937 |
WASHER
|
2 |
|
| 19 |
898093 |
WASHER Wave
|
2 |
|
| 2 |
8M0057684 |
THROTTLE BODY ASSEMBLY
|
1 |
superseded
|
| 20 |
8M0033987 |
CAM THROTTLE ASSEMBLY
|
1 |
|
| 21 |
897535005 |
SPRING Throttle Cam Return
|
1 |
|
| 22 |
897936 |
WASHER
|
2 |
|
| 23 |
8M0033989 |
LEVER THROTTLE FOLLOWER ASSY
|
1 |
superseded
|
| 24 |
932481 |
BUSHING
|
1 |
superseded
|
| 25 |
897526T |
IAC VALVE
|
1 |
superseded
|
| 3 |
881070T |
SENSOR Position
|
1 |
superseded
|
| 4 |
8M0063490 |
SCREW (M4 X .7 X 16 MM)
|
2 |
|
| 5 |
8M0057685 |
INTAKE MANIFOLD ASSEMBLY
|
1 |
|
| 6 |
8M0035337 |
SEAL Port
|
4 |
|
| 7 |
8M0038429 |
SEAL Throttle Body
|
1 |
|
| 8 |
8M0033992 |
LINK ROD ASSEMBLY
|
1 |
superseded
|
| 9 |
19384 |
SOCKET
|
1 |
superseded
|
