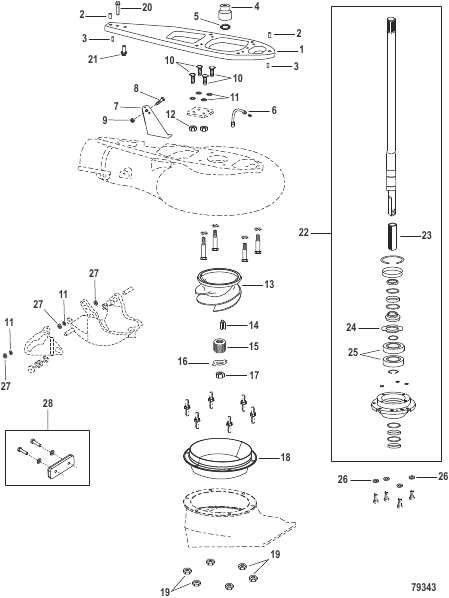

Jet Pump
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0230771 |
JET PUMP ASSEMBLY JET PUMP ASSEMBLY |
1 | |
| - | 8M0190470 |
EXTREME GREASE QS, 14 oz EXTREME GREASE QS, 14 oz |
1 | |
| 1 | 8M0231567 |
ADAPTER PLATE ADAPTER PLATE |
1 | |
| 10 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь SCREW (.250-20 x .620) Stainless Steel |
4 | |
| 11 | 879652003 |
ШАЙБА WASHER |
6 | |
| 12 | 8267098 |
ГАЙКА (0.250-20), нержавеющая сталь NUT (.250-20) Stainless Steel |
2 | |
| 13 | 8M0231569 |
IMPELLER (7.375) IMPELLER (7.375) |
1 | |
| 14 | 8M0231570 |
KEY (1/2 Round) Impeller Tee KEY (1/2 Round) Impeller Tee |
1 | |
| 15 | 801404875 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА Крыльчатка SHIM Impeller |
7 | |
| 16 | 801403875 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 17 | 8271901 |
ГАЙКА NUT |
1 | |
| 18 | 855771 |
ОТДЕЛКА LINER |
1 | |
| 19 | 82670910 |
ГАЙКА (0.312-18), нержавеющая сталь NUT (.312-18) Stainless Steel |
6 | |
| 2 | 8M0204929 |
PIN (0.375 x 0.875) Dowel PIN (0.375 x 0.875) Dowel |
2 | |
| 20 | 806327 |
ВИНТ (0.437-14 x 1.750) SCREW (.437-14 x 1.750) |
1 | superseded |
| 21 | 8M0102995 |
ВИНТ (M12) SCREW (M12) |
1 | |
| 22 | 8M0231568 |
DRIVESHAFT ASSEMBLY DRIVESHAFT ASSEMBLY |
1 | |
| 23 | 8271891 |
РУКАВ SLEEVE |
1 | |
| 24 | 8796522 |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | |
| 25 | 8796531 |
ПОДШИПНИК Шарик BEARING Ball |
2 | |
| 26 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
4 | |
| 27 | 35888 |
ГАЙКА (0.250-28), нержавеющая сталь NUT (.250-28) Stainless Steel |
3 | |
| 28 | 889246A72 |
КОМПЛЕКТ АНОДОВ ANODE KIT |
1 | |
| 3 | 8M0084627 |
ШТИФТ Штифт PIN (0.1875 x 0.5) Dowel |
2 | |
| 4 | 8M0236653 |
COUPLER COUPLER |
1 | |
| 5 | 8M0204645 |
O-RING (.796 x .139) O-RING (.796 x .139) |
1 | |
| 6 | 827490 |
РУКАВ Смазка HOSE Lube |
1 | |
| 7 | 801410 |
КРОНШТЕЙН Опора кабеля BRACKET Cable Support |
1 | |
| 8 | 60411 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
1 | |
| 9 | 82670910 |
ГАЙКА (0.312-18), нержавеющая сталь NUT (.312-18) Stainless Steel |
1 |
