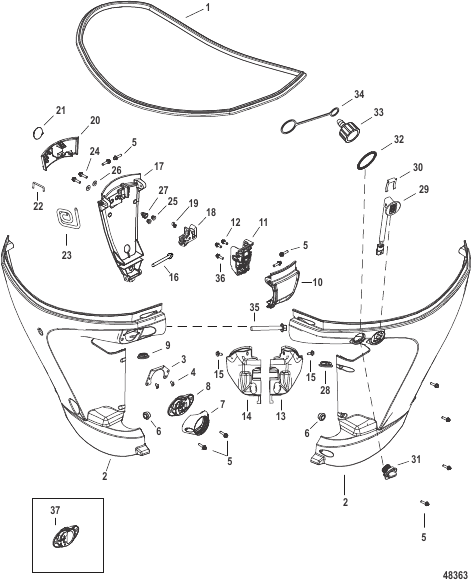

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0031347 |
SEAL Top Cowl
|
1 |
superseded
|
| 10 |
8M0057758 |
LOWER COWL FRONT ASSEMBLY Black
|
1 |
|
| 10 |
8M0230759 |
LOWER COWL FRONT ASSEMBLY Cold Fusion
|
1 |
|
| 10 |
8M0230767 |
LOWER COWL FRONT ASSEMBLY Warm Fusion
|
1 |
|
| 11 |
8M0047810 |
RETAINER Top Cowl Latch
|
1 |
|
| 12 |
88552516 |
SCREW (M6 x 16 MM) Stainless Steel
|
2 |
superseded
|
| 13 |
8M0047300 |
COVER Upper Mount - Port
|
1 |
superseded
|
| 14 |
8M0054905 |
COVER Upper Mount - STBD
|
1 |
superseded
|
| 15 |
892073002 |
SHOULDER SCREW (M6)
|
2 |
superseded
|
| 16 |
8M0047252 |
SCREW M6 X 85 MM
|
1 |
superseded
|
| 17 |
8M0057760 |
PANEL ASSEMBLY Rear Black
|
1 |
|
| 17 |
8M0230760 |
PANEL ASSEMBLY Rear Cold Fusion
|
1 |
|
| 17 |
8M0230768 |
PANEL ASSEMBLY Rear Warm Fusion
|
1 |
|
| 18 |
8M0041031 |
REAR LATCH ASSEMBLY
|
1 |
|
| 19 |
8M0006054 |
RETAINER
|
1 |
|
| 2 |
8M0057756 |
CHAP ASSEMBLY Port and Starboard Black
|
1 |
|
| 2 |
8M0230762 |
CHAP ASSEMBLY Port and Starboard Cold Fusion
|
1 |
|
| 2 |
8M0230770 |
CHAP ASSEMBLY Port and Starboard Warm Fusion
|
1 |
|
| 20 |
8M0047782 |
HANDLE LATCH Black
|
1 |
|
| 20 |
8M0230761 |
HANDLE LATCH Cold Fusion
|
1 |
|
| 20 |
8M0230769 |
HANDLE LATCH Warm Fusion
|
1 |
|
| 21 |
8M0043701 |
M-ICON 39MM - Small
|
1 |
|
| 22 |
8M0031367 |
LATCH LINK Rear
|
1 |
|
| 23 |
8M0034065 |
PIN Handle
|
1 |
|
| 24 |
88552525 |
SCREW (M6 x 25 MM) Stainless Steel
|
2 |
superseded
|
| 25 |
8M0047796 |
BUSHING
|
2 |
|
| 26 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
2 |
superseded
|
| 27 |
8M0056980 |
SEAL Rear Latch
|
1 |
|
| 28 |
8M0048008 |
GROMMET Trim Sensor Wires
|
1 |
|
| 29 |
8M0037225 |
TRIM SWITCH Round Bezel
|
1 |
superseded
|
| 3 |
8M0047717 |
PLATE Ingress Mounting
|
1 |
|
| 30 |
8M0032848 |
RETAINER Switch
|
1 |
|
| 31 |
888958001 |
PLUG Flush Port
|
1 |
superseded
|
| 32 |
8M0047301 |
SEAL Flush Plug Pocket
|
1 |
superseded
|
| 33 |
885361A01 |
FITTING ASSEMBLY Flush
|
1 |
|
| 34 |
889823001 |
TETHER Flush Plug
|
1 |
superseded
|
| 35 |
88552550 |
SCREW (M6 x 50 MM) Stainless Steel
|
1 |
|
| 36 |
88552520 |
SCREW (M6 x 20 MM) Stainless Steel
|
1 |
superseded
|
| 37 |
8M0062583 |
GROMMET Rigging Tube (Accessory)
|
1 |
|
| 4 |
8M0047718 |
SCREW (M5 X 8MM)
|
2 |
|
| 5 |
8M0022324 |
SCREW (M6 x 25 MM)
|
10 |
superseded
|
| 6 |
8M0039082 |
CAP Chap Support
|
2 |
superseded
|
| 7 |
8M0057348 |
ADAPTER Rigging Hose
|
1 |
superseded
|
| 8 |
8M0061055 |
INGRESS GROMMET
|
1 |
superseded
|
| 9 |
8M0048006 |
GROMMET Trim Wires
|
1 |
|
