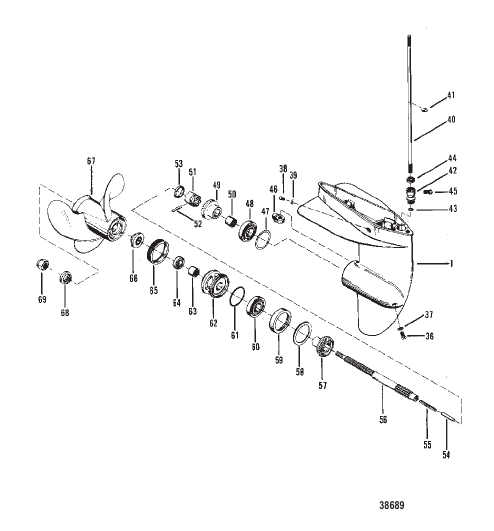

GEAR HOUSING (PROPELLER SHAFT)
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 7360A29 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (SHORT SHAFT) GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT) |
1 | discontinued |
| - | 7360A30 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (LONG SHAFT) GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT) |
1 | discontinued |
| - | 78139A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 7360A11 |
КАРТЕР РЕДУКТОРА В СБОРЕ GEAR HOUSING ASSEMBLY |
1 | discontinued |
| 36 | 79953 |
ВИНТ (0.375-16 x 0.250) GREASE FILLER HOLE SCREW (.375-16 x .250) GREASE FILLER HOLE |
1 | superseded |
| 37 | 20260 |
ШАЙБА GREASE FILLER HOLE SCREW WASHER GREASE FILLER HOLE SCREW |
1 | superseded |
| 38 | 28653 |
ВИНТ (№10-32 x 0.25) GREASE VENT HOLE SCREW (#10-32 x 0.25) GREASE VENT HOLE |
1 | |
| 39 | 20262 |
ШАЙБА GREASE VENT HOLE SCREW WASHER GREASE VENT HOLE SCREW |
1 | superseded |
| 40 | 71659A1 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ В СБОРЕ SHIFT (SHORT SHAFT) SHIFT SHAFT ASSEMLBY SHIFT (SHORT SHAFT) |
1 | discontinued |
| 40 | 71658A1 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ В СБОРЕ SHIFT (LONG SHAFT) SHIFT SHAFT ASSEMBLY SHIFT (LONG SHAFT) |
1 | discontinued |
| 41 | 22899 |
КОЛЬЦО Стопор SHIFT SHAFT RING Retaining SHIFT SHAFT |
1 | |
| 42 | 30676A1 |
ВТУЛКА В СБОРЕ SHIFT SHAFT BUSHING ASSEMBLY SHIFT SHAFT |
1 | |
| 43 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) SHIFT SHAFT BUSHING O-RING (.424 x .103) SHIFT SHAFT BUSHING |
1 | |
| 44 | 30696 |
УПЛОТНЕНИЕ Масло SHIFT SHAFT BUSHING SEAL Oil SHIFT SHAFT BUSHING |
1 | |
| 45 | 39149 |
ВИНТ (№10-24 x 0.500) SCREW (#10-24 x .500) |
1 | discontinued |
| 46 | 44434 |
КУЛАЧОК CAM |
1 | discontinued |
| 47 | 30522A1 |
ПРОКЛАДКА В СБОРЕ (.002-3-5-10) SHIM ASSEMBLY (.002-3-5-10) |
AR | discontinued |
| 48 | 21889 |
ПОДШИПНИК Шарик FORWARD GEAR BEARING Ball FORWARD GEAR |
1 | |
| 49 | 48577A3 |
РЕДУКТОР В СБОРЕ Передняя GEAR ASSEMBLY Forward |
1 | discontinued |
| 50 | 22458 |
ПОДШИПНИК Ролик FORWARD GEAR BEARING Roller FORWARD GEAR |
1 | |
| 51 | 63314 |
ХРАПОВИК SLIDING CLUTCH RATCHET SLIDING CLUTCH |
1 | discontinued |
| 52 | 30535 |
ШТИФТ Разрез RATCHET TO PROPELLER SHAFT PIN Cross RATCHET TO PROPELLER SHAFT |
1 | discontinued |
| 53 | 32449 |
КОЛЬЦО Стопор CROSS PIN RING Retaining CROSS PIN |
1 | discontinued |
| 54 | 31334 |
ТОЛКАТЕЛЬ FOLLOWER |
1 | discontinued |
| 55 | 76298 |
ПРУЖИНА COMPRESSION - CAM FOLLOWER SPRING COMPRESSION - CAM FOLLOWER |
1 | discontinued |
| 56 | 75667A2 |
ВАЛ ГРЕБНОГО ВИНТА В СБОРЕ PROELLER SHAFT ASSEMBLY |
1 | discontinued |
| 57 | 63316 |
ПЕРЕДАЧА Задняя GEAR Reverse |
1 | discontinued |
| 58 | 71479 |
РУКАВ THRUST - REVERSE GEAR SLEEVE THRUST - REVERSE GEAR |
1 | discontinued |
| 59 | 30532A1 |
ПРОКЛАДКА В СБОРЕ (.002-3-5-10) SHIM ASSEMBLY (.002-3-5-10) |
AR | discontinued |
| 60 | 21889 |
ПОДШИПНИК Шарик REVERSE GEAR BEARING Ball REVERSE GEAR |
1 | |
| 61 | 30529 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.925 x 0.103) BEARING CARRIER O-RING (1.925 x .103) BEARING CARRIER |
1 | |
| 62 | 72673A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 63 | 22458 |
ПОДШИПНИК Ролик BEARING CARRIER BEARING Roller BEARING CARRIER |
1 | |
| 64 | 66022 |
УПЛОТНЕНИЕ Масло BEARING CARRIER SEAL Oil BEARING CARRIER |
1 | |
| 65 | 86236 |
КРЫШКА GEAR HOUSING COVER GEAR HOUSING |
1 | |
| 66 | 86665A1 |
ВТУЛКА PROPELLER COLLAR PROPELLER |
1 | discontinued |
| 67 | 77716A10 |
ГРЕБНОЙ ВИНТ В СБОРЕ (2 BLADE - ALUMINUM - 7" PITCH) PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 7" PITCH) |
1 | superseded |
| 67 | 63494A10 |
ГРЕБНОЙ ВИНТ В СБОРЕ (2 BLADE ALUMINUM - 6" PITCH) PROPELLER ASSEMBLY (2 BLADE ALUMINUM - 6" PITCH) |
OPT | discontinued |
| 68 | 65439 |
ПРОСТАВКА SPLINED - PROPELLER NUT SPACER SPLINED - PROPELLER NUT |
1 | superseded |
| 69 | 89103 |
ГАЙКА NUT |
1 | superseded |
