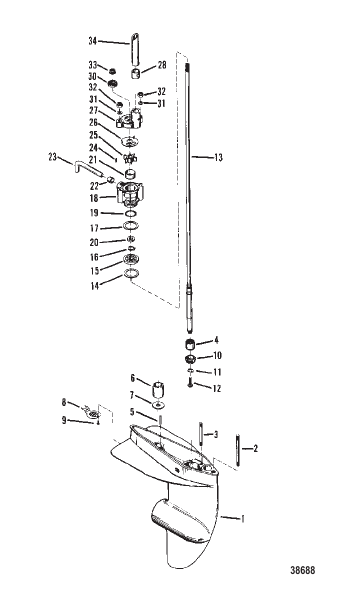

GEAR HOUSING (DRIVESHAFT)
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 7360A29 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (SHORT SHAFT) GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT) |
1 | discontinued |
| - | 7360A30 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (LONG SHAFT) GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT) |
1 | discontinued |
| - | 78139A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| - | 70941A3 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос (USE WITH 47-89981 IMPELLER) REPAIR KIT Water Pump (USE WITH 47-89981 IMPELLER) |
1 | |
| - | 92970A5 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос (USE WITH 47-89980 IMPELLER) REPAIR KIT Water Pump (USE WITH 47-89980 IMPELLER) |
1 | discontinued |
| - | 77066A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Водяной насос SEAL KIT Water Pump |
1 | |
| 1 | 7360A11 |
КАРТЕР РЕДУКТОРА В СБОРЕ GEAR HOUSING ASSEMBLY |
1 | discontinued |
| 10 | 98696 |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | discontinued |
| 11 | 30377 |
ЛЕПЕСТКОВАЯ ШАЙБА PINION GEAR SCREW TAB WASHER PINION GEAR SCREW |
1 | discontinued |
| 12 | 30376 |
ВИНТ (№12-28 x 0.750) PINION GEAR TO DRIVE SHAFT SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT |
1 | discontinued |
| 13 | 95873A1 |
ВЕДУЩИЙ ВАЛ (SHORT SHAFT)(USE WITH 47-89980 IMPELLER) DRIVESHAFT (SHORT SHAFT)(USE WITH 47-89980 IMPELLER) |
1 | discontinued |
| 13 | 95874A1 |
ВЕДУЩИЙ ВАЛ (LONG SHAFT)(USE WITH 47-89980 IMPELLER) DRIVESHAFT (LONG SHAFT)(USE WITH 47-89980 IMPELLER) |
1 | discontinued |
| 14 | 30527A1 |
ПРОКЛАДКА В СБОРЕ BALL BEARING (.002-3-5-10) SHIM ASSEMBLY BALL BEARING (.002-3-5-10) |
AR | discontinued |
| 15 | 70944 |
ПОДШИПНИК Шарик DRIVE SHAFT BEARING Ball DRIVE SHAFT |
1 | |
| 16 | 30523 |
КОЛЬЦО Стопор BALL BEARING RING Retaining BALL BEARING |
1 | discontinued |
| 17 | 30527A1 |
ПРОКЛАДКА В СБОРЕ BALL BEARING (.002-3-5-10) SHIM ASSEMBLY BALL BEARING (.002-3-5-10) |
AR | discontinued |
| 18 | 70941A1 |
КОРПУС В СБОРЕ Водяной насос (USE WITH 47-89981 IMPELLER) HOUSING ASSEMBLY Water Pump (USE WITH 47-89981 IMPELLER) |
1 | superseded |
| 18 | 92970A1 |
КОРПУС В СБОРЕ Водяной насос (USE WITH 47-89980 IMPELLER) HOUSING ASSEMBLY Water Pump (USE WITH 47-89980 IMPELLER) |
1 | |
| 19 | 29439 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 2 | 58138 |
ШПИЛЬКА GEAR HOUSING (3-1/2") STUD GEAR HOUSING (3-1/2") |
1 | discontinued |
| 20 | 30900 |
УПЛОТНЕНИЕ Масло (USE WITH 47-89981 IMPELLER) SEAL Oil (USE WITH 47-89981 IMPELLER) |
1 | superseded |
| 20 | 96063 |
УПЛОТНЕНИЕ Масло (USE WITH 47-89980 IMPELLER) SEAL Oil (USE WITH 47-89980 IMPELLER) |
1 | superseded |
| 21 | 70977 |
ВСТАВКА INSERT |
1 | superseded |
| 22 | 33613 |
УПЛОТНЕНИЕ WATER INTAKE TUBE SEAL WATER INTAKE TUBE |
1 | |
| 23 | 34293 |
ТРУБА WATER INTAKE TUBE WATER INTAKE |
1 | discontinued |
| 24 | 56655 |
КЛЮЧ IMPELLER DRIVE KEY IMPELLER DRIVE |
1 | superseded |
| 25 | 89981 |
КРЫЛЬЧАТКА (MOLDED 47-89981 - .456 I.D.) IMPELLER (MOLDED 47-89981 - .456 I.D.) |
1 | |
| 25 | 89980 |
КРЫЛЬЧАТКА (MOLDED 47-89980 - .438 I.D.) IMPELLER (MOLDED 47-89980 - .438 I.D.) |
1 | |
| 26 | 46895 |
ЦИФЕРБЛАТ WATER PUMP FACE PLATE WATER PUMP |
1 | |
| 27 | 93224A1 |
КРЫШКА В СБОРЕ Водяной насос COVER ASSEMBLY Water Pump |
1 | |
| 28 | 36558 |
УПЛОТНЕНИЕ WATER PUMP COVER SEAL WATER PUMP COVER |
1 | |
| 3 | 58136 |
ШПИЛЬКА WATER PUMP HOUSING (2-3/4") STUD WATER PUMP HOUSING (2-3/4") |
2 | discontinued |
| 30 | 30913 |
УПЛОТНЕНИЕ Масло WATER PUMP COVER SEAL Oil WATER PUMP COVER |
1 | |
| 31 | 20533 |
ШАЙБА WASHER |
2 | |
| 32 | 13438 |
ГАЙКА (0.250-28) WATER PUMP HOUSING STUD NUT (.250-28) WATER PUMP HOUSING STUD |
2 | superseded |
| 33 | 30526 |
КОЛЬЦО RUBBER - CENTRIFUGAL SLINGER RING RUBBER - CENTRIFUGAL SLINGER |
1 | |
| 34 | 31792 |
РУКАВ GUIDE - INLET TUBE SLEEVE GUIDE - INLET TUBE |
1 | superseded |
| 4 | 22756 |
ПОДШИПНИК Ролик DRIVE SHAFT BEARING Roller DRIVE SHAFT |
1 | |
| 5 | 20032 |
ШТИФТ Штифт LOCATING PIN Dowel LOCATING |
1 | discontinued |
| 6 | 33613 |
УПЛОТНЕНИЕ RUBBER - WATER INTAKE TUBE SEAL RUBBER - WATER INTAKE TUBE |
1 | |
| 7 | 86215 |
ПОДШИПНИК NYLON - INTAKE TUBE SEAL BEARING NYLON - INTAKE TUBE SEAL |
1 | |
| 8 | 33425 |
ЭКРАН WATER INTAKE SCREEN WATER INTAKE |
1 | discontinued |
| 9 | 25612 |
ВИНТ WATER INTAKE SCREEN SCREW WATER INTAKE SCREEN |
1 | discontinued |
