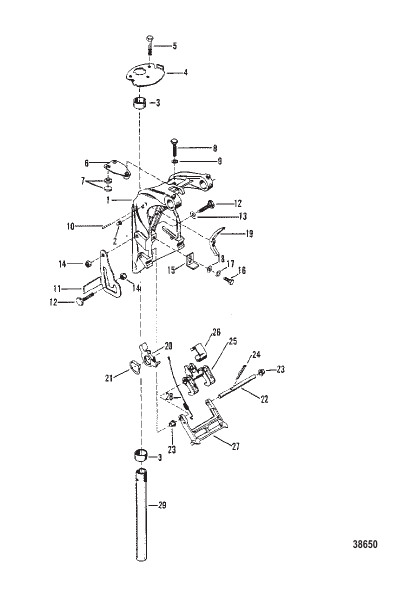

SWIVEL BRACKET ASSEMBLY
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 7324A1 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ SWIVEL BRACKET ASSEMBLY |
1 | discontinued |
| 10 | 25319 |
ШТИФТ (0.125 x 0.75") SPRING GUIDE PIN (.125 x 0.75 Inches) SPRING GUIDE |
1 | |
| 11 | 879841 |
РЫЧАГ В СБОРЕ TILT STOP (SAILPOWER) LEVER ASSEMBLY TILT STOP (SAILPOWER) |
1 | discontinued |
| 11 | 87984A1 |
РЫЧАГ В СБОРЕ TILT STOP LEVER ASSEMBLY TILT STOP |
1 | discontinued |
| 12 | 41433 |
ВИНТ (0.250-28 x 1.00) TILT STOP LEVER SCREW (.250-28 x 1.00) TILT STOP LEVER |
2 | discontinued |
| 13 | 31030 |
ВОЛНИСТАЯ ШАЙБА LEVER ANCHOR SCREW WAVE WASHER LEVER ANCHOR SCREW |
1 | |
| 14 | 35888 |
ГАЙКА (0.250-28), нержавеющая сталь TILT STOP LEVER SCREW NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW |
2 | |
| 15 | 72794 |
СТОП REVERSE LOCK STOP REVERSE LOCK |
1 | discontinued |
| 16 | 71056 |
ВИНТ (0.250-28 x 0.560) REVERSE STOP TO SWIVEL BRACKET SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET |
1 | discontinued |
| 17 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь REVERSE STOP SCREW LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW |
1 | |
| 18 | 71055 |
ШАЙБА REVERSE STOP SCREW WASHER REVERSE STOP SCREW |
1 | |
| 19 | 63554 |
НАПРАВЛЯЮЩАЯ SPRING GUIDE SPRING |
1 | discontinued |
| 2 | 74036 |
ФИТИНГ Смазка SWIVEL BRACKET FITTING Grease SWIVEL BRACKET |
3 | superseded |
| 20 | 79744 |
РЫЧАГ CONTROL - TROLL BRACKET LEVER CONTROL - TROLL BRACKET |
1 | discontinued |
| 21 | 63631 |
ВОЛНИСТАЯ ШАЙБА TROLL BRACKET LEVER WAVE WASHER TROLL BRACKET LEVER |
1 | discontinued |
| 22 | 71419 |
ШТОК REVERSE LOCK TO SWITCH BRACKET ROD REVERSE LOCK TO SWITCH BRACKET |
1 | discontinued |
| 23 | 26841 |
ВТУЛКА NYLON - REVERSE LOCK LEVER ROD BUSHING NYLON - REVERSE LOCK LEVER ROD |
2 | |
| 24 | 45882 |
ШПЛИНТ REVERSE LOCK LEVER TO ROD COTTER PIN REVERSE LOCK LEVER TO ROD |
1 | |
| 25 | 63628 |
РЫЧАГ REVERSE LOCK LEVER REVERSE LOCK |
1 | superseded |
| 26 | 61007 |
ФИКСАТОР ROD - REVERSE LOCK RETAINER ROD - REVERSE LOCK |
1 | discontinued |
| 27 | 63559 |
КРОНШТЕЙН TROLL BRACKET TROLL |
1 | superseded |
| 28 | 63630 |
ПРУЖИНА EXTENSION - TROLL BRACKET SPRING EXTENSION - TROLL BRACKET |
1 | discontinued |
| 29 | 66559 |
ТРУБА SWIVEL BRACKET TO SADDLE TUBE SWIVEL BRACKET TO SADDLE |
1 | discontinued |
| 3 | 64028 |
ВТУЛКА SWIVEL BRACKET BUSHING SWIVEL BRACKET |
2 | discontinued |
| 4 | 77334 |
ПЛАСТИНА CO-PILOT PLATE CO-PILOT |
1 | discontinued |
| 5 | 78038 |
ВИНТ (0.250-20 x 1.75) CO-PILOT DISC TO SADDLE SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE |
3 | |
| 6 | 72845A1 |
ПЛАСТИНА В СБОРЕ CLAMP - CO-PILOT PLATE ASSEMBLY CLAMP - CO-PILOT |
1 | discontinued |
| 7 | 20203 |
ДИСК FRICTION DISC FRICTION |
4 | |
| 8 | 36154 |
ВИНТ (0.250-28 x 1.380) CLAMP PLATE ADJUSTING SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING |
1 | discontinued |
| 9 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
1 |
