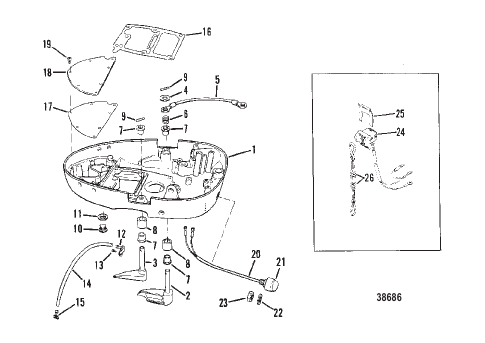

BOTTOM COWL ASSEMBLY
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 78139A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 7711A4 |
НИЖНИЙ КОЖУХ BOTTOM COWL |
1 | discontinued |
| 10 | 79953 |
ВИНТ (0.375-16 x 0.250) BOTTOM COWL FLUSHING HOLE SCREW (.375-16 x .250) BOTTOM COWL FLUSHING HOLE |
1 | superseded |
| 11 | 20260 |
ШАЙБА BOTTOM COWL FLUSHING HOLE SCREW WASHER BOTTOM COWL FLUSHING HOLE SCREW |
1 | superseded |
| 12 | 56712 |
ШТУЦЕР TELL TALE NOZZLE TELL TALE |
1 | discontinued |
| 13 | 35519 |
ВИНТ (№10-16 x 0.500) TELL TALE NOZZLE TO BOTTOM COWL SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL |
1 | discontinued |
| 14 | 34395A1 |
РУКАВ TELL TALE (7-1/4") HOSE TELL TALE (7-1/4") |
1 | superseded |
| 15 | 99664 |
КОЛЕНЧАТЫЙ TELL TALE - HOSE TO CYLINDER BLOCK ELBOW TELL TALE - HOSE TO CYLINDER BLOCK |
1 | superseded |
| 16 | 89937 |
ПРОКЛАДКА GASKET |
1 | |
| 17 | 55847 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 18 | 55936 |
КРЫШКА EXHAUST RELIEF COVER EXHAUST RELIEF |
1 | discontinued |
| 19 | 69079 |
ВИНТ (№10-16 x 0.440) SCREW (#10-16 x .440) |
9 | |
| 2 | 36187A1 |
РЫЧАГ В СБОРЕ CLAMPING - PORT LEVER ASSEMBLY CLAMPING - PORT |
1 | discontinued |
| 20 | 69508A31 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп PUSH BUTTON SWITCH SWITCH ASSEMBLY Stop PUSH BUTTON SWITCH |
1 | |
| 21 | 99525A1 |
КРЫШКА В СБОРЕ PUSH BUTTON SWITCH COVER ASSEMBLY PUSH BUTTON SWITCH |
1 | |
| 22 | 69845 |
СТОПОРНАЯ ШАЙБА PUSH BUTTON SWITCH LOCKWASHER PUSH BUTTON SWITCH |
1 | discontinued |
| 23 | 69844 |
ГАЙКА STOP SWITCH PUSH BUTTON SWITCH NUT STOP SWITCH PUSH BUTTON SWITCH |
1 | discontinued |
| 24 | 11083A9 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп TOGGLE SWITCH SWITCH ASSEMBLY Stop TOGGLE SWITCH |
1 | discontinued |
| 25 | 12044 |
ФИКСАТОР TOGGLE SWITCH RETANER TOGGLE SWITCH |
1 | superseded |
| 26 | 86352A54 |
ТАЛРЕП В СБОРЕ TOGGLE SWITCH LANYARD ASSEMBLY TOGGLE SWITCH |
1 | superseded |
| 3 | 36188A1 |
РЫЧАГ В СБОРЕ CLAMPING - STARBOARD LEVER ASSEMBLY CLAMPING - STARBOARD |
1 | discontinued |
| 4 | 55891 |
ФИКСАТОР CLAMPING LEVER FASTENER CLAMPING LEVER |
2 | discontinued |
| 5 | 60871A7 |
СКОБА В СБОРЕ Заземление STRAP ASSEMBLY Ground |
1 | discontinued |
| 6 | 63399 |
ПРУЖИНА GROUNG STRAP SPRING GROUNG STRAP |
1 | discontinued |
| 7 | 26819 |
ВТУЛКА NYLON - CLAMPING LEVER BUSHING NYLON - CLAMPING LEVER |
4 | discontinued |
| 8 | 31293 |
ВТУЛКА RUBBER - CLAMPING LEVER BUSHING RUBBER - CLAMPING LEVER |
2 | discontinued |
| 9 | 58997 |
ШТИФТ Ролик (0.164 x 0.750) CLAMPING LEVER PIN Roll (.164 x .750) CLAMPING LEVER |
2 | discontinued |
