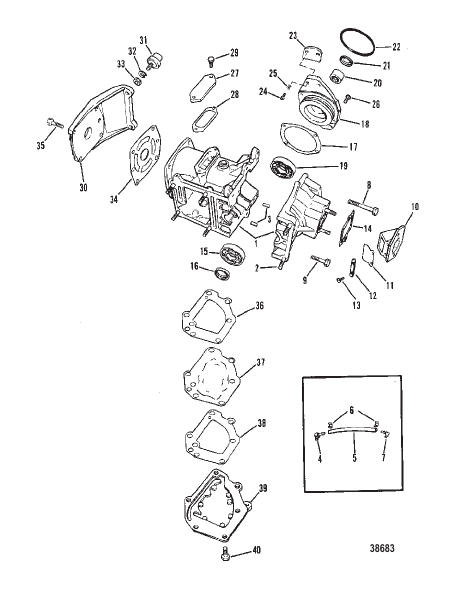

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 78139A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
discontinued | |
| - | 87096A79 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 8694A3 |
БЛОК ЦИЛИНДРА CYLINDER BLOCK |
1 | discontinued |
| 10 | 70726 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ REED BLOCK |
1 | discontinued |
| 11 | 35836 |
ПЛАСТИНЧАТЫЙ КЛАПАН INLET VALVE REED INLET VALVE |
2 | |
| 12 | 22215 |
ФИКСАТОР REED RETAINER REED |
2 | discontinued |
| 13 | 28430 |
ВИНТ (№6-32 x 0.25) SCREW (#6-32 x .25) |
4 | |
| 14 | 35739 |
ПРОКЛАДКА REED BLOCK TO CRANKCASE GASKET REED BLOCK TO CRANKCASE |
1 | superseded |
| 15 | 72961 |
ПОДШИПНИК Шарик CRANKCASE (LOWER) BEARING Ball CRANKCASE (LOWER) |
1 | |
| 16 | 56397 |
УПЛОТНЕНИЕ Масло CRANKCASE (LOWER) SEAL Oil CRANKCASE (LOWER) |
1 | discontinued |
| 17 | 31412A1 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
AR | discontinued |
| 18 | 6352A1 |
КОРПУС В СБОРЕ Подшипник UPPER HOUSING ASSEMBLY Bearing UPPER |
1 | discontinued |
| 19 | 72961 |
ПОДШИПНИК Шарик UPPER BEARING HOUSING BEARING Ball UPPER BEARING HOUSING |
1 | |
| 2 | 66021 |
ШПИЛЬКА STUD |
8 | discontinued |
| 20 | 31410 |
ПОДШИПНИК Ролик UPPER BEARING HOUSING BEARING Roller UPPER BEARING HOUSING |
1 | discontinued |
| 21 | 66301 |
УПЛОТНЕНИЕ Масло UPPER BEARING HOUSING SEAL Oil UPPER BEARING HOUSING |
1 | |
| 22 | 20863 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО UPPER BEARING HOUSING O-RING UPPER BEARING HOUSING |
1 | |
| 23 | 34598 |
ЗАЖИМ HOLD DOWN CLAMP HOLD DOWN |
2 | discontinued |
| 24 | 36205 |
ВИНТ (№10-24 x 0.563) SCREW (#10-24 x .563) |
4 | discontinued |
| 25 | 34731 |
ПРУЖИНА HOLD DOWN RING CLAMP SPRING HOLD DOWN RING CLAMP |
4 | discontinued |
| 26 | 39002 |
ВИНТ (1/2") SCREW (1/2") |
4 | discontinued |
| 27 | 35658 |
КРЫШКА TRANSFER COVER COVER TRANSFER COVER |
1 | discontinued |
| 28 | 35657 |
ПРОКЛАДКА TRANSFER PORT COVER GASKET TRANSFER PORT COVER |
1 | discontinued |
| 29 | 20720 |
ВИНТ (0.190-24 x 0.62) SCREW (.190-24 x .62) |
2 | discontinued |
| 3 | 85500 |
ШТИФТ Штифт (0.187 x 0.530) CRANKCASE TO CYLINDER BLOCK PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK |
2 | superseded |
| 30 | 7070A1 |
КРЫШКА В СБОРЕ CYLINDER BLOCK COVER ASSEMBLY CYLINDER BLOCK |
1 | discontinued |
| 31 | 66019 |
КРЕПЛЕНИЕ RUBBER - COVER TO TOP COWL MOUNT RUBBER - COVER TO TOP COWL |
2 | discontinued |
| 32 | 20202 |
СТОПОРНАЯ ШАЙБА RUBBER MOUNT LOCKWASHER RUBBER MOUNT |
2 | discontinued |
| 33 | 22053 |
ГАЙКА (0.312-24) RUBBER MOUNT TO COVER NUT (.312-24) RUBBER MOUNT TO COVER |
2 | |
| 34 | 416151 |
ПРОКЛАДКА COVER TO CYLINDER BLOCK GASKET COVER TO CYLINDER BLOCK |
1 | |
| 35 | 76630 |
ВИНТ (0.250-20 x 1.00) SCREW (.250-20 x 1.00) |
4 | superseded |
| 36 | 416141 |
ПРОКЛАДКА CYLINDER BLOCK TO BAFFLE PLATE GASKET CYLINDER BLOCK TO BAFFLE PLATE |
1 | |
| 37 | 46234 |
ПЛАСТИНА BAFFLE - EXHAUST MANIFOLD PLATE BAFFLE - EXHAUST MANIFOLD |
1 | discontinued |
| 38 | 416141 |
ПРОКЛАДКА GASKET |
1 | |
| 39 | 46171 |
КРЫШКА EXHAUST MANIFOLD COVER EXHAUST MANIFOLD |
1 | discontinued |
| 4 | 89275 |
ФИТИНГ BLEED DRAIN FITTING BLEED DRAIN |
1 | discontinued |
| 40 | 49668 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
6 | |
| 5 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") BLEED DRAIN TUBING (36.00 Inches Bulk) BLEED DRAIN |
1 | |
| 6 | 68424 |
ЗАЖИМ BLEED HOSE ATTACHING CLAMP BLEED HOSE ATTACHING |
2 | discontinued |
| 7 | 88780 |
КОЛЕНЧАТЫЙ Трубопровод контрольного устройства BLEED DRAIN ELBOW Tell-Tale Tubing BLEED DRAIN |
1 | superseded |
| 8 | 73280 |
ВИНТ CRANKCASE TO CYLINDER BLOCK (1-1/2") SCREW CRANKCASE TO CYLINDER BLOCK (1-1/2") |
2 | discontinued |
| 9 | 76621 |
ВИНТ CRANKCASE TO CYLINDER BLOCK (1") SCREW CRANKCASE TO CYLINDER BLOCK (1") |
8 | discontinued |
