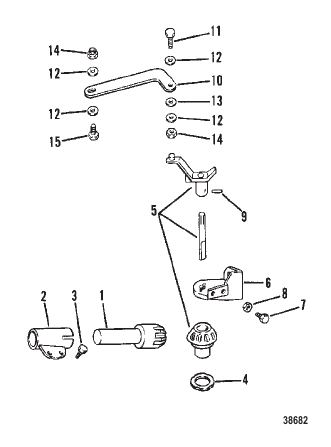

THROTTLE CONTROL LINKAGE
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 60856 |
ПЕРЕДАЧА THROTTLE CONTROL GEAR THROTTLE CONTROL |
1 | discontinued |
| 10 | 60920 |
СОЕДИНИТЕЛЬ THROTTLE LEVER TO STATOR PLATE LINK THROTTLE LEVER TO STATOR PLATE |
1 | discontinued |
| 11 | 34696 |
ВИНТ (№8-32 x .750) SCREW (#8-32 x .750) |
1 | discontinued |
| 12 | 34392 |
ШАЙБА WASHER |
3 | discontinued |
| 13 | 29720 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 14 | 28656 |
ГАЙКА NUT |
2 | discontinued |
| 15 | 56027 |
ВИНТ SCREW |
1 | discontinued |
| 2 | 60885 |
КОРПУС HORIZONTAL GEAR HOUSING HORIZONTAL GEAR |
1 | superseded |
| 3 | 47910 |
ВИНТ (1/4-28 x 5/8) SCREW (1/4-28 x 5/8) |
2 | superseded |
| 4 | 64653A1 |
ПРОКЛАДКА В СБОРЕ PINION GEAR TO BOTTOM COWL SHIM ASSEMBLY PINION GEAR TO BOTTOM COWL |
1 | discontinued |
| 5 | 42666A3 |
ПЕРЕДАЧА И ВАЛ В СБОРЕ GEAR AND SHAFT ASSEMBLY |
1 | discontinued |
| 6 | 62099 |
КРОНШТЕЙН THROTTLE CONTROL LEVER BRACKET THROTTLE CONTROL LEVER |
1 | superseded |
| 7 | 23015 |
ВИНТ (0.190-32 x 1.00) ADJUSTING - THROTTLE SCREW (.190-32 x 1.00) ADJUSTING - THROTTLE |
2 | discontinued |
| 8 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
2 | |
| 9 | 69745 |
ШТИФТ Ролик LEVER TO VERTICAL SHAFT PIN Roll LEVER TO VERTICAL SHAFT |
1 |
