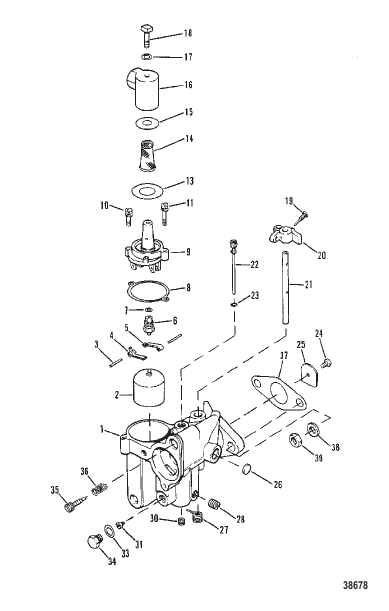

CARBURETOR ASSEMBLY (WALBRO)
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 1717 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 9019 |
РЕМОНТНЫЙ КОМПЛЕКТ ДЕТАЛЕЙ REPAIR PARTS KIT |
1 | discontinued |
| 1 | 8740A1 |
КАРБЮРАТОР COMPLETE CARBURETOR COMPLETE |
1 | discontinued |
| 10 | 52195 |
ВИНТ FLOAT BOWL COVER (SHORT) SCREW FLOAT BOWL COVER (SHORT) |
1 | discontinued |
| 11 | 52196 |
ВИНТ FLOAT BOWL COVER (LARGE) SCREW FLOAT BOWL COVER (LARGE) |
1 | discontinued |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, strainer cover (Large) NOT SOLD SEPARATE Gasket, strainer cover (Large) |
1 | |
| 14 | 3938 |
ЭКРАН FILTER SCREEN FILTER |
1 | discontinued |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screen, filter NOT SOLD SEPARATE Screen, filter |
1 | |
| 16 | 1135 |
КРЫШКА STRAINER (90 DEGREE) COVER STRAINER (90 DEGREE) |
1 | discontinued |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, strainer cover screw NOT SOLD SEPARATE Gasket, strainer cover screw |
1 | |
| 18 | 25822 |
ВИНТ STRAINER COVER SCREW STRAINER COVER |
1 | discontinued |
| 19 | 20847 |
ВИНТ THROTTLE STOP LEVER SCREW THROTTLE STOP LEVER |
1 | superseded |
| 2 | 8983 |
ПОПЛАВОК В СБОРЕ FLOAT ASSEMBLY |
1 | superseded |
| 20 | 97 |
РЫЧАГ THROTTLE STOP LEVER THROTTLE STOP |
1 | superseded |
| 21 | 1716 |
ВАЛ SHAFT |
1 | discontinued |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Idle Tube NOT SOLD SEPARATE Idle Tube |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, idle tube NOT SOLD SEPARATE Gasket, idle tube |
1 | |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw, throttle shutter NOT SOLD SEPARATE Screw, throttle shutter |
1 | |
| 25 | 3739 |
ЗАСЛОНКА SHUTTER |
1 | discontinued |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Welch Plug, body channel NOT SOLD SEPARATE Welch Plug, body channel |
1 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring, throttle shaft return NOT SOLD SEPARATE Spring, throttle shaft return |
1 | |
| 28 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw, plug - body channel NOT SOLD SEPARATE Screw, plug - body channel |
1 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pin, float lever pinion NOT SOLD SEPARATE Pin, float lever pinion |
2 | |
| 30 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw, plug - main nozzle NOT SOLD SEPARATE Screw, plug - main nozzle |
1 | |
| 31 | 3252 |
ВОДОМЕТНЫЙ (0.032) MAIN FUEL JET (.032) MAIN FUEL |
OPT | discontinued |
| 31 | 3251 |
ВОДОМЕТНЫЙ (0.034) MAIN FUEL - STANDARD JET (.034) MAIN FUEL - STANDARD |
1 | discontinued |
| 31 | 3026 |
ВОДОМЕТНЫЙ (0.036) MAIN FUEL JET (.036) MAIN FUEL |
OPT | |
| 31 | 2407 |
ВОДОМЕТНЫЙ Главн. топл. (0.039) MAIN FUEL JET Main Fuel (.039) MAIN FUEL |
OPT | discontinued |
| 31 | 1896 |
ВОДОМЕТНЫЙ MAIN FUEL (.041) JET MAIN FUEL (.041) |
OPT | discontinued |
| 33 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, jet channel plug screw NOT SOLD SEPARATE Gasket, jet channel plug screw |
1 | |
| 34 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw, plug - main fuel jet channel NOT SOLD SEPARATE Screw, plug - main fuel jet channel |
1 | |
| 35 | 3740 |
ВИНТ IDLE ADJUSTMENT SCREW IDLE ADJUSTMENT |
1 | discontinued |
| 36 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring, idle adjustment screw NOT SOLD SEPARATE Spring, idle adjustment screw |
1 | |
| 37 | 63309 |
ПРОКЛАДКА CARBURETOR TO REED BLOCK GASKET CARBURETOR TO REED BLOCK |
1 | |
| 38 | 20583 |
ШАЙБА CARBURETOR MOUNTING STUD WASHER CARBURETOR MOUNTING STUD |
1 | |
| 39 | 24652 |
ГАЙКА (0.250-28) CARBURETOR MOUNTING STUD NUT (.250-28) CARBURETOR MOUNTING STUD |
2 | discontinued |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Lever, float (Lower) NOT SOLD SEPARATE Lever, float (Lower) |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Lever, float (Upper) NOT SOLD SEPARATE Lever, float (Upper) |
1 | |
| 6 | 8318 |
ИГЛА Впуск SEAT AND GASKET NEEDLE Inlet SEAT AND GASKET |
1 | superseded |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, inlet seat NOT SOLD SEPARATE Gasket, inlet seat |
1 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, float bowl cover NOT SOLD SEPARATE Gasket, float bowl cover |
1 | |
| 9 | 1133 |
КРЫШКА FLOAT BOWL COVER FLOAT BOWL |
1 |
