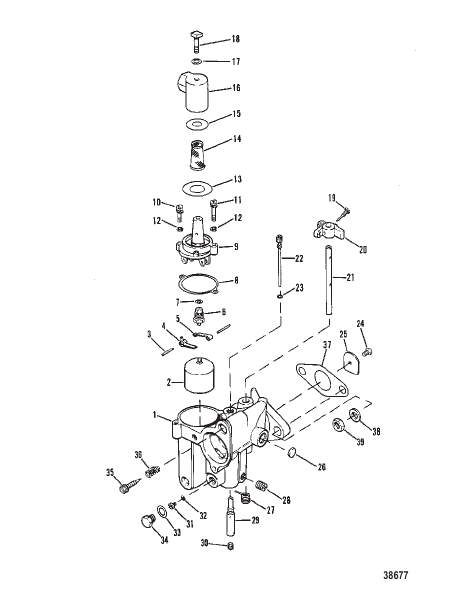

CARBURETOR ASSEMBLY (TILLOTSON)
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 1717 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
||
| - | 3741 |
РЕМОНТНЫЙ КОМПЛЕКТ ДЕТАЛЕЙ REPAIR PARTS KIT |
superseded | |
| 1 | 3711 |
КАРБЮРАТОР В СБОРЕ COMPLETE CARBURETOR ASSEMBLY COMPLETE |
1 | superseded |
| 10 | 52195 |
ВИНТ FLOAT BOWL (SHORT) SCREW FLOAT BOWL (SHORT) |
1 | discontinued |
| 11 | 52196 |
ВИНТ FLOAT BOWL COVER (LONG) SCREW FLOAT BOWL COVER (LONG) |
1 | discontinued |
| 12 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь FLOAT BOWL COVER SCREW LOCKWASHER (#8) Stainless Steel FLOAT BOWL COVER SCREW |
2 | |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Strainer cover (Large) NOT SOLD SEPARATE Gasket-Strainer cover (Large) |
1 | |
| 14 | 3938 |
ЭКРАН FILTER SCREEN FILTER |
1 | discontinued |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, Strainer cover (Small) NOT SOLD SEPARATE Gasket, Strainer cover (Small) |
1 | |
| 16 | 1135 |
КРЫШКА STRAINER (90 DEGREES) COVER STRAINER (90 DEGREES) |
1 | discontinued |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, Strainer cover Screw NOT SOLD SEPARATE Gasket, Strainer cover Screw |
1 | |
| 18 | 25822 |
ВИНТ STRAINER COVER SCREW STRAINER COVER |
1 | discontinued |
| 19 | 20847 |
ВИНТ THROTTLE STOP LEVER SCREW THROTTLE STOP LEVER |
1 | superseded |
| 2 | 8983 |
ПОПЛАВОК В СБОРЕ FLOAT ASSEMBLY |
1 | superseded |
| 20 | 97 |
РЫЧАГ THROTTLE STOP LEVER THROTTLE STOP |
1 | superseded |
| 21 | 1716 |
ВАЛ SHAFT |
1 | discontinued |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Idle Tube NOT SOLD SEPARATE Idle Tube |
||
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, Idle tube NOT SOLD SEPARATE Gasket, Idle tube |
1 | |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-throttle Shutter NOT SOLD SEPARATE Screw-throttle Shutter |
1 | |
| 25 | 3739 |
ЗАСЛОНКА SHUTTER |
1 | discontinued |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Welch Plug, Body Channel NOT SOLD SEPARATE Welch Plug, Body Channel |
1 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring, throttle shaft return NOT SOLD SEPARATE Spring, throttle shaft return |
1 | |
| 28 | 28845 |
ВИНТ PLUG-BODY CHANNEL SCREW PLUG-BODY CHANNEL |
1 | discontinued |
| 29 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Main Nozzle NOT SOLD SEPARATE Main Nozzle |
1 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pin-Float Lever Pinion NOT SOLD SEPARATE Pin-Float Lever Pinion |
2 | |
| 30 | 23178 |
ВИНТ PLUG-MAIN NOZZLE SCREW PLUG-MAIN NOZZLE |
1 | discontinued |
| 31 | 3252 |
ВОДОМЕТНЫЙ (0.032) MAIN FUEL JET (.032) MAIN FUEL |
OPT | discontinued |
| 31 | 3251 |
ВОДОМЕТНЫЙ (0.034) MAIN FUEL JET (.034) MAIN FUEL |
OPT | discontinued |
| 31 | 3026 |
ВОДОМЕТНЫЙ (0.036) MAIN FUEL-STANDARD JET (.036) MAIN FUEL-STANDARD |
1 | |
| 31 | 2407 |
ВОДОМЕТНЫЙ Главн. топл. (0.039) JET Main Fuel (.039) |
OPT | discontinued |
| 31 | 1896 |
ВОДОМЕТНЫЙ MAIN FUEL (.041) JET MAIN FUEL (.041) |
OPT | discontinued |
| 32 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Main Fuel Jet NOT SOLD SEPARATE Gasket-Main Fuel Jet |
1 | |
| 33 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, Jet Channel Plug Screw NOT SOLD SEPARATE Gasket, Jet Channel Plug Screw |
1 | |
| 34 | 28405 |
ВИНТ PLUG-MAIN FUEL JET CHANNEL SCREW PLUG-MAIN FUEL JET CHANNEL |
1 | discontinued |
| 35 | 3740 |
ВИНТ IDLE ADJUSTMENT SCREW IDLE ADJUSTMENT |
1 | discontinued |
| 36 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring, Idle Adjustment Screw NOT SOLD SEPARATE Spring, Idle Adjustment Screw |
1 | |
| 37 | 63309 |
ПРОКЛАДКА CARBURETOR TO REED BLOCK GASKET CARBURETOR TO REED BLOCK |
1 | |
| 38 | 20583 |
ШАЙБА CARBURETOR MOUNTING STUD WASHER CARBURETOR MOUNTING STUD |
1 | |
| 39 | 24652 |
ГАЙКА (0.250-28) CARBURETOR MOUNTING STUD NUT (.250-28) CARBURETOR MOUNTING STUD |
2 | discontinued |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Float Lever-Lower NOT SOLD SEPARATE Float Lever-Lower |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Float Lever-Upper NOT SOLD SEPARATE Float Lever-Upper |
1 | |
| 6 | 9258 |
КОМПЛЕКТ ИГЛ / СЕДЕЛ Впуск SEAT AND GASKET NEEDLE/SEAT KIT Inlet SEAT AND GASKET |
1 | superseded |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Inlet Seat NOT SOLD SEPARATE Gasket-Inlet Seat |
1 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Float Bowl Cover NOT SOLD SEPARATE Gasket-Float Bowl Cover |
1 | |
| 9 | 1133 |
КРЫШКА FLOAT BOWL COVER FLOAT BOWL |
1 |
