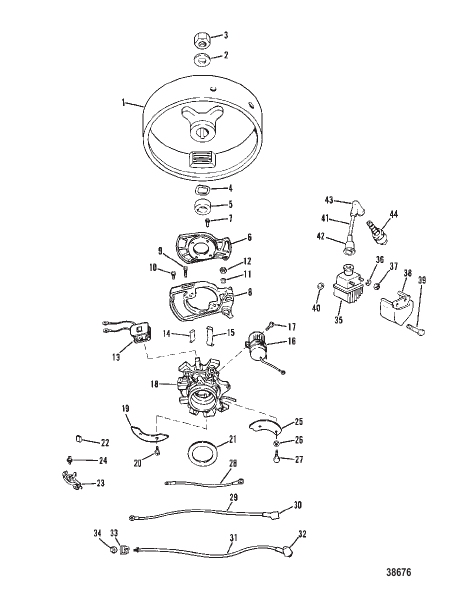

FLYWHEEL AND IGNITION COMPONENTS
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 4475A1 |
МАХОВИК В СБОРЕ FLYWHEEL ASSEMBLY |
1 | discontinued |
| 10 | 36046 |
ВИНТ MODULE-COIL LEAD (1/4") SCREW MODULE-COIL LEAD (1/4") |
3 | discontinued |
| 11 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь MODUEL TERMINALS LOCKWASHER (#10) Stainless Steel MODUEL TERMINALS |
2 | |
| 12 | 45076 |
ГАЙКА (№10-32), латунь MODULE TERMINALS NUT (#10-32) Brass MODULE TERMINALS |
2 | |
| 13 | 4470A1 |
КАТУШКА В СБОРЕ HIGH SPPED COIL ASSEMBLY HIGH SPPED |
1 | discontinued |
| 13 | 4469A1 |
КАТУШКА В СБОРЕ LOW SPEED COIL ASSEMBLY LOW SPEED |
1 | discontinued |
| 14 | 59538 |
ЗАЖИМ COIL RETAINING CLIP COIL RETAINING |
2 | discontinued |
| 15 | 59539 |
ЗАЖИМ COIL RETAINING CLIP COIL RETAINING |
2 | discontinued |
| 16 | 4463 |
КОНДЕНСАТОР В СБОРЕ CONDENSER ASSEMBLY |
1 | discontinued |
| 17 | 62269 |
ВИНТ (№10-32 x 0.437) CONDENSER ATTACHING SCREW (#10-32 x .437) CONDENSER ATTACHING |
2 | discontinued |
| 18 | 4476A1 |
СТАТОР В СБОРЕ STATOR ASSEMBLY |
1 | superseded |
| 19 | 4458 |
ПЛАСТИНА STATOR HOLD DOWN PLATE STATOR HOLD DOWN |
2 | discontinued |
| 2 | 36245 |
ШАЙБА FLYWHEEL NUT WASHER FLYWHEEL NUT |
1 | discontinued |
| 20 | 35400 |
ВИНТ HOLD DOWN PLATE TO STATOR (7/16") SCREW HOLD DOWN PLATE TO STATOR (7/16") |
4 | discontinued |
| 21 | 33910015 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА STATOR PLATE TO UPPER END CAP SHIM STATOR PLATE TO UPPER END CAP |
1 | discontinued |
| 22 | 3989 |
ФИТИЛЬ CAM WIPER WICK CAM WIPER |
1 | discontinued |
| 23 | 4318A2 |
ЗАМЫКАТЕЛЬ В СБОРЕ STATOR HOUSING MAKER ASSEMBLY STATOR HOUSING |
1 | discontinued |
| 24 | 56266 |
ВИНТ MAKER TO STATOR HOUSING (3/8") SCREW MAKER TO STATOR HOUSING (3/8") |
2 | discontinued |
| 25 | 56520 |
КУЛАЧОК CAM |
1 | discontinued |
| 26 | 69054 |
ВИНТ (0.250-20 x 0.620) THROTTLE CAM TO CONTACT HOUSING SCREW (.250-20 x .620) THROTTLE CAM TO CONTACT HOUSING |
2 | discontinued |
| 27 | 37998 |
ШАЙБА THROTTLE CAM ATTACHING SCREW WASHER THROTTLE CAM ATTACHING SCREW |
1 | |
| 28 | 56757A5 |
ПРОВОД В СБОРЕ Перемычка (BLACK-4-1/4") WIRE ASSEMBLY Jumper (BLACK-4-1/4") |
1 | discontinued |
| 29 | 56318A11 |
ЖИЛА В СБОРЕ (GREEN-12-1/4") LEAD ASSEMBLY (GREEN-12-1/4") |
1 | discontinued |
| 3 | 20696 |
ГАЙКА FLYWHEEL NUT FLYWHEEL |
1 | discontinued |
| 30 | 38938 |
ЧЕХОЛ LEAD ASSEMBLY BOOT LEAD ASSEMBLY |
1 | discontinued |
| 31 | 56316A4 |
КАБЕЛЬ В СБОРЕ STATOR HOUSING (WHITE-103/4") CABLE ASSEMBLY STATOR HOUSING (WHITE-103/4") |
1 | discontinued |
| 32 | 38938 |
ЧЕХОЛ CABLE BOOT CABLE |
1 | discontinued |
| 33 | 4460 |
РАЗЪЕДИНИТЕЛЬ CABLE TO CONTACT HOUSING INSULATOR CABLE TO CONTACT HOUSING |
1 | |
| 34 | 56325 |
ГАЙКА CABLE INSULATOR NUT CABLE INSULATOR |
1 | discontinued |
| 35 | 4528A3 |
КАТУШКА В СБОРЕ Зажигание COIL ASSEMBLY Ignition |
1 | superseded |
| 36 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь IGNITION COIL TERMINAL LOCKWASHER (#10) Stainless Steel IGNITION COIL TERMINAL |
2 | |
| 37 | 45076 |
ГАЙКА (№10-32), латунь IGNITION COIL TERMINAL NUT (#10-32) Brass IGNITION COIL TERMINAL |
2 | |
| 38 | 66355 |
КРЫШКА COVER |
1 | discontinued |
| 39 | 61530 |
ВИНТ SCREW |
3 | |
| 4 | 35629 |
ШАЙБА WAVE-CAM TENSION WASHER WAVE-CAM TENSION |
1 | discontinued |
| 40 | 27164 |
ГАЙКА И СТОПОРНАЯ ШАЙБА (№10-32) COIL COVER SCREW NUT AND LOCKWASHER (#10-32) COIL COVER SCREW |
3 | |
| 41 | 99215A25 |
ЖИЛА В СБОРЕ HIGH TENSION LEAD ASSEMBLY HIGH TENSION |
1 | superseded |
| 42 | 2854 |
ЧЕХОЛ IGNITION COIL BOOT IGNITION COIL |
1 | superseded |
| 43 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ SPARK PLUG BOOT/TERMINAL KIT SPARK PLUG |
1 | |
| 44 | 97182 |
СВЕЧА ЗАЖИГАНИЯ (NGK #BUHW-2) SPARK PLUG (NGK #BUHW-2) |
1 | superseded |
| 44 | 75739 |
СВЕЧА ЗАЖИГАНИЯ CANADA AND BELGIUM SPARK PLUG CANADA AND BELGIUM |
1 | superseded |
| 5 | 4465 |
КУЛАЧОК CAM |
1 | discontinued |
| 6 | 4524A1 |
КРЫШКА В СБОРЕ COVER ASSEMBLY |
1 | discontinued |
| 7 | 60491 |
ВИНТ (№8-32 x 0.620) COVER TO MODULE SCREW (#8-32 x .620) COVER TO MODULE |
2 | discontinued |
| 8 | 4516A2 |
БЛОК ЗАЖИГАНИЯ В СБОРЕ IGNITION MODULE ASSEMBLY |
1 | discontinued |
| 9 | 59800 |
ВИНТ MODULE TO STATOR (9/16") SCREW MODULE TO STATOR (9/16") |
2 | discontinued |
