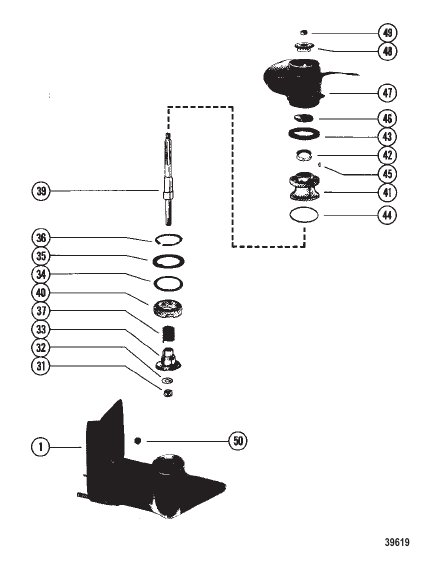

GEAR HOUSING ASSEMBLY (PROPELLER SHAFT)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 7726A1 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (SHORT SHAFT) [US-5571989] & Below GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT) [US-5571989] & Below |
1 | superseded |
| - | 7726A2 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (LONG SHAFT) [US-5571989] & Below GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT) [US-5571989] & Below |
1 | superseded |
| - | 7811A1 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (SHORT SHAFT) [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT) [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] |
1 | superseded |
| - | 7811A2 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (LONG SHAFT) [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT) [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] |
1 | superseded |
| - | 7811A18 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (SHORT SHAFT) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| - | 7811A19 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (LONG SHAFT) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| - | 88139A79 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| - | 71140A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Картер редуктора SEAL KIT Gear Housing |
1 | discontinued |
| 1 | 7726A5 |
КАРТЕР РЕДУКТОРА В СБОРЕ BASIC [US-5571989] & Below GEAR HOUSING ASSEMBLY BASIC [US-5571989] & Below |
1 | superseded |
| 1 | 7811A9 |
КАРТЕР РЕДУКТОРА В СБОРЕ BASIC [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up GEAR HOUSING ASSEMBLY BASIC [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
1 | discontinued |
| 31 | 20696 |
ГАЙКА PROPELLER SHAFT NUT PROPELLER SHAFT |
1 | discontinued |
| 32 | 73672 |
ШАЙБА PROPELLER SHAFT WASHER PROPELLER SHAFT |
1 | discontinued |
| 33 | 77422 |
ПЕРЕДАЧА Привод [US-5571989] & Below GEAR Drive [US-5571989] & Below |
1 | superseded |
| 33 | 90795 |
ПЕРЕДАЧА Привод [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] GEAR Drive [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] |
1 | superseded |
| 33 | 93398 |
ПЕРЕДАЧА Привод [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up GEAR Drive [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| 34 | 79603 |
ШАЙБА SPECIAL-PROPELLER SHAFT WASHER SPECIAL-PROPELLER SHAFT |
1 | discontinued |
| 35 | 79602A1 |
НАБОР ПРОКЛАДОК PROPELLER SHAFT (.002-3-5-10-20) SHIM SET PROPELLER SHAFT (.002-3-5-10-20) |
AR | discontinued |
| 36 | 79601 |
КОЛЬЦО Стопор RING Retaining |
1 | discontinued |
| 37 | 91813 |
ПРУЖИНА CLUTCH SPRING CLUTCH |
1 | discontinued |
| 39 | 77425 |
ВАЛ ГРЕБНОГО ВИНТА [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below PROPELLER SHAFT [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
1 | discontinued |
| 39 | 93397 |
ВАЛ ГРЕБНОГО ВИНТА [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up PROPELLER SHAFT [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| 40 | 77424 |
ПРОСТАВКА PROPELLER SHAFT SPACER PROPELLER SHAFT |
1 | discontinued |
| 41 | 77431A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 42 | 71140 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | superseded |
| 43 | 75812 |
КРЫШКА GEAR HOUSING COVER GEAR HOUSING |
1 | discontinued |
| 44 | 68935 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.799 x 0.103) BEARING CARRIER O-RING (1.799 x .103) BEARING CARRIER |
1 | |
| 45 | 32003 |
КЛЮЧ BEARING CARRIER KEY BEARING CARRIER |
1 | discontinued |
| 46 | 70588 |
УПОРНАЯ ВТУЛКА FORWARD THRUST HUB FORWARD |
1 | discontinued |
| 47 | 86903A1 |
ГРЕБНОЙ ВИНТ В СБОРЕ [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below PROPELLER ASSEMBLY [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
1 | discontinued |
| 47 | 93357A1 |
ГРЕБНОЙ ВИНТ В СБОРЕ [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up PROPELLER ASSEMBLY [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | superseded |
| 48 | 70589 |
УПОРНАЯ ВТУЛКА AFT [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below THRUST HUB AFT [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
1 | discontinued |
| 48 | 93356 |
УПОРНАЯ ВТУЛКА AFT [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up THRUST HUB AFT [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| 49 | 35814 |
ГАЙКА (0.312-24), нержавеющая сталь PROPELLER NUT (.312-24) Stainless Steel PROPELLER |
1 | superseded |
| 50 | 35814 |
ГАЙКА (0.312-24), нержавеющая сталь DRIVESHAFT HOUSING STUD NUT (.312-24) Stainless Steel DRIVESHAFT HOUSING STUD |
1 | superseded |
