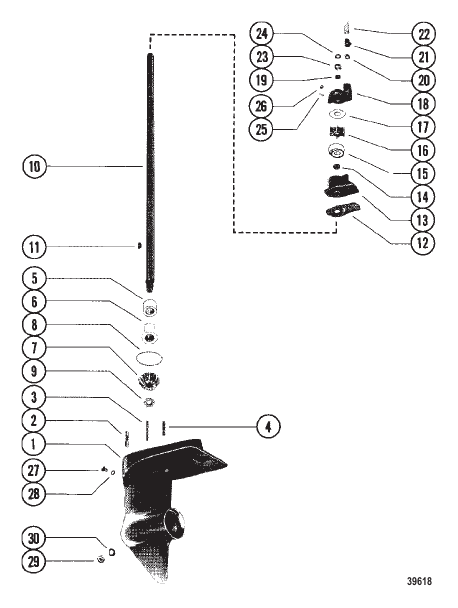

GEAR HOUSING ASSEMBLY (DRIVESHAFT)
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 7726A1 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (SHORT SHAFT) [US-5571989] & Below GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT) [US-5571989] & Below |
1 | superseded |
| - | 7726A2 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (LONG SHAFT) [US-5571989] & Below GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT) [US-5571989] & Below |
1 | superseded |
| - | 7811A1 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (SHORT SHAFT) [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT) [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] |
1 | superseded |
| - | 7811A2 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (LONG SHAFT) [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT) [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] THRU [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] |
1 | superseded |
| - | 7811A18 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (SHORT SHAFT) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| - | 7811A19 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (LONG SHAFT) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| - | 90844A2 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос REPAIR KIT Water Pump |
1 | discontinued |
| - | 71140A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Картер редуктора SEAL KIT Gear Housing |
1 | discontinued |
| - | 88139A79 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 7726A5 |
КАРТЕР РЕДУКТОРА В СБОРЕ BASIC [US-5571989] & Below GEAR HOUSING ASSEMBLY BASIC [US-5571989] & Below |
1 | superseded |
| 1 | 7811A9 |
КАРТЕР РЕДУКТОРА В СБОРЕ BASIC [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up GEAR HOUSING ASSEMBLY BASIC [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
1 | discontinued |
| 10 | 87617 |
ВЕДУЩИЙ ВАЛ (SHORT SHAFT) DRIVESHAFT (SHORT SHAFT) |
1 | discontinued |
| 10 | 87663 |
ВЕДУЩИЙ ВАЛ (LONG SHAFT) DRIVESHAFT (LONG SHAFT) |
1 | discontinued |
| 11 | 56655 |
КЛЮЧ IMPELLER DRIVE KEY IMPELLER DRIVE |
1 | superseded |
| 12 | 68939 |
ПРОКЛАДКА WATER PUMP-LOWER GASKET WATER PUMP-LOWER |
1 | discontinued |
| 13 | 90844A1 |
КОРПУС В СБОРЕ Водяной насос HOUSING ASSEMBLY Water Pump |
1 | discontinued |
| 14 | 77066 |
УПЛОТНЕНИЕ Масло WATER PUMP SEAL Oil WATER PUMP |
1 | superseded |
| 15 | 70977 |
ВСТАВКА WATER PUMP INSERT WATER PUMP |
1 | superseded |
| 16 | 89980 |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 17 | 68955 |
ЦИФЕРБЛАТ WATER PUMP FACE PLATE WATER PUMP |
1 | discontinued |
| 18 | 68984A1 |
КРЫШКА В СБОРЕ Водяной насос [US-5571989] & Below COVER ASSEMBLY Water Pump [US-5571989] & Below |
1 | superseded |
| 18 | 90846A1 |
КРЫШКА В СБОРЕ Водяной насос [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up COVER ASSEMBLY Water Pump [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
1 | superseded |
| 19 | 30913 |
УПЛОТНЕНИЕ Масло WATER PUMP COVER SEAL Oil WATER PUMP COVER |
1 | |
| 2 | 68927 |
ШПИЛЬКА GEAR HOUSING (2 1/8") (SHORT SHAFT) STUD GEAR HOUSING (2 1/8") (SHORT SHAFT) |
1 | discontinued |
| 2 | 75321 |
ШПИЛЬКА GEAR HOUSING (7 1/4") (LONG SHAFT) STUD GEAR HOUSING (7 1/4") (LONG SHAFT) |
1 | discontinued |
| 20 | 86214 |
ПОДШИПНИК WATER TUBE SEAL BEARING WATER TUBE SEAL |
1 | superseded |
| 21 | 36558 |
УПЛОТНЕНИЕ WATER TUBE SEAL WATER TUBE |
1 | |
| 22 | 31792 |
РУКАВ WATER TUBE GUIDE SLEEVE WATER TUBE GUIDE |
1 | superseded |
| 23 | 30526 |
КОЛЬЦО RUBBER-DRIVESHAFT RING RUBBER-DRIVESHAFT |
1 | |
| 24 | 85148 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО DRIVESHAFT O-RING DRIVESHAFT |
1 | superseded |
| 25 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь WATER PUMP STUDS WASHER (.192 x .375 x .0312) Stainless Steel WATER PUMP STUDS |
3 | |
| 26 | 45812 |
ГАЙКА (№10-32), нержавеющая сталь WATER PUMP STUDS NUT (#10-32) Stainless Steel WATER PUMP STUDS |
3 | superseded |
| 27 | 28653 |
ВИНТ (№10-32 x 0.25) VENT-GEAR HOUSING SCREW (#10-32 x 0.25) VENT-GEAR HOUSING |
1 | |
| 28 | 20262 |
ШАЙБА VENT SCREW WASHER VENT SCREW |
1 | superseded |
| 29 | 79953 |
ВИНТ (0.375-16 x 0.250) GREASE FILLER SCREW (.375-16 x .250) GREASE FILLER |
1 | superseded |
| 3 | 68928 |
ШПИЛЬКА WATER PUMP (2 1/8") STUD WATER PUMP (2 1/8") |
2 | discontinued |
| 30 | 20260 |
ШАЙБА GREASE FILLER SCREW WASHER GREASE FILLER SCREW |
1 | superseded |
| 4 | 70741 |
ШПИЛЬКА WATER PUMP (1 1/8") STUD WATER PUMP (1 1/8") |
1 | discontinued |
| 5 | 77428 |
ПОДШИПНИК GEAR HOUSING BEARING GEAR HOUSING |
1 | discontinued |
| 6 | 77429 |
ВТУЛКА FLANGED-GEAR HOUSING [US-5571989] & Below BUSHING FLANGED-GEAR HOUSING [US-5571989] & Below |
1 | superseded |
| 6 | 90770 |
ВТУЛКА FLANGED-GEAR HOUSING [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up BUSHING FLANGED-GEAR HOUSING [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
1 | discontinued |
| 7 | 77427 |
ПЕРЕДАЧА Шестерня [US-5571989] & Below GEAR Pinion [US-5571989] & Below |
1 | discontinued |
| 7 | 90796 |
ПЕРЕДАЧА Шестерня [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up GEAR Pinion [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
1 | discontinued |
| 8 | 21148A1 |
НАБОР ПРОКЛАДОК (.002-3-5-10) [US-5571989] & Below SHIM SET (.002-3-5-10) [US-5571989] & Below |
AR | discontinued |
| 9 | 20922 |
ГАЙКА PINION GEAR NUT PINION GEAR |
1 | discontinued |
