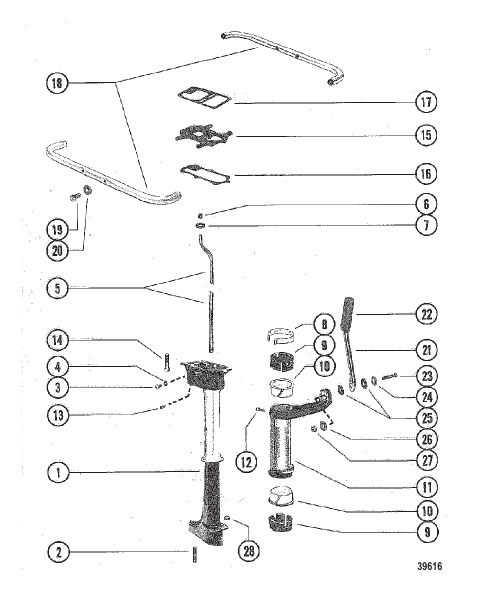

DRIVESHAFT HOUSING ASSEMBLY
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 75311 |
ПЕРЕХОДНИК DRIVESHAFT HOUSING (LONG SHAFT) ADAPTER DRIVESHAFT HOUSING (LONG SHAFT) |
1 | superseded |
| - | 76265 |
БЛОК Подшипник DRIVESHAFT (LONG SHAFT) BLOCK Bearing DRIVESHAFT (LONG SHAFT) |
1 | superseded |
| - | 88139A79 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 7601A3 |
КОРПУС В СБОРЕ Карданный вал [US-5571989] & Below HOUSING ASSEMBLY Driveshaft [US-5571989] & Below |
1 | superseded |
| 1 | 7723A4 |
КОРПУС В СБОРЕ Карданный вал [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up HOUSING ASSEMBLY Driveshaft [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
1 | superseded |
| 10 | 74308 |
ВТУЛКА RUBBER MOUNT BUSHING RUBBER MOUNT |
2 | discontinued |
| 11 | 68990A3 |
КРОНШТЕЙН В СБОРЕ STEERING ARM [US-5571989] & Below BRACKET ASSEMBLY STEERING ARM [US-5571989] & Below |
1 | superseded |
| 11 | 89744A1 |
КРОНШТЕЙН В СБОРЕ STEERING ARM [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up BRACKET ASSEMBLY STEERING ARM [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
1 | superseded |
| 12 | 75840 |
ВИНТ (№10-24 x 0.880) STEERING ARM BRACKET SCREW (#10-24 x .880) STEERING ARM BRACKET |
4 | |
| 13 | 88184 |
ПРОБКА DRIVESHAFT HOUSING [US-5571989] & Below PLUG DRIVESHAFT HOUSING [US-5571989] & Below |
1 | discontinued |
| 14 | 69067 |
ВИНТ (0.250-20 x 1.375) DRIVESHAFT HOUSING TO POWERHEAD SCREW (.250-20 x 1.375) DRIVESHAFT HOUSING TO POWERHEAD |
6 | |
| 15 | 90253 |
ПЛАСТИНА ADAPTOR PLATE ADAPTOR |
1 | superseded |
| 16 | 88138 |
ПРОКЛАДКА PLATE TO DRIVESHAFT HOUSING [US-5571989] & Below GASKET PLATE TO DRIVESHAFT HOUSING [US-5571989] & Below |
1 | superseded |
| 16 | 90254 |
ПРОКЛАДКА PLATE TO DRIVESHAFT HOUSING [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up GASKET PLATE TO DRIVESHAFT HOUSING [US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
1 | superseded |
| 17 | 88139 |
ПРОКЛАДКА PLATE TO POWERHEAD [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below GASKET PLATE TO POWERHEAD [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
1 | superseded |
| 17 | 92875 |
ПРОКЛАДКА PLATE TO POWERHEAD [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up GASKET PLATE TO POWERHEAD [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | superseded |
| 18 | 87664 |
РУКОЯТКА CARRYING HANDLE CARRYING |
1 | discontinued |
| 19 | 54615 |
ВИНТ (0.250-20 x 0.625) HANDLE TO ADAPTOR PLATE SCREW (.250-20 x .625) HANDLE TO ADAPTOR PLATE |
4 | discontinued |
| 2 | 68927 |
ШПИЛЬКА DRIVESHAFT HOUSING (SHORT SHAFT) STUD DRIVESHAFT HOUSING (SHORT SHAFT) |
1 | discontinued |
| 2 | 75321 |
ШПИЛЬКА DRIVE SHAFT HOUSING (LONG SHAFT) STUD DRIVE SHAFT HOUSING (LONG SHAFT) |
1 | discontinued |
| 20 | 21249 |
ШАЙБА HANDLE SCREW WASHER HANDLE SCREW |
4 | |
| 21 | 87667 |
РУКОЯТКА STEERING HANDLE STEERING |
1 | superseded |
| 22 | 87668 |
РУКОЯТКА STEERING HANDLE GRIP STEERING HANDLE |
1 | discontinued |
| 23 | 63327 |
ВИНТ STEERING HANDLE TO BRACKET (1 1/2") SCREW STEERING HANDLE TO BRACKET (1 1/2") |
1 | superseded |
| 24 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) STEERING HANDLE SCREW LOCKWASHER (.312) STEERING HANDLE SCREW |
1 | |
| 25 | 56720 |
ШАЙБА (0.330 x 0.750 x 0.060), нержавеющая сталь STEERING HANDLE SCREW WASHER (.330 x .750 x .060) Stainless Steel STEERING HANDLE SCREW |
2 | |
| 26 | 26825 |
ШАЙБА (0.328 x 0.750 x 0.06) STEERING HANDLE SCREW WASHER (.328 x .750 x .06) STEERING HANDLE SCREW |
1 | |
| 27 | 68292 |
ГАЙКА (0.312-18) STEERING HANDLE SCREW NUT (.312-18) STEERING HANDLE SCREW |
1 | superseded |
| 28 | 35814 |
ГАЙКА (0.312-24), нержавеющая сталь GEAR HOUSING STUD NUT (.312-24) Stainless Steel GEAR HOUSING STUD |
1 | superseded |
| 3 | 79953 |
ВИНТ (0.375-16 x 0.250) GREASE FILLER SCREW (.375-16 x .250) GREASE FILLER |
1 | superseded |
| 4 | 20260 |
ШАЙБА GREASE FILLER SCREW WASHER GREASE FILLER SCREW |
1 | superseded |
| 5 | 88996 |
ТРУБА Вода (SHORT SHAFT) TUBE Water (SHORT SHAFT) |
1 | discontinued |
| 5 | 88997 |
ТРУБА Вода (LONG SHAFT) TUBE Water (LONG SHAFT) |
1 | discontinued |
| 6 | 36556 |
УПЛОТНЕНИЕ (Наружный диаметр 0.500") WATER TUBE SEAL (.500 Inch Outside Diameter) WATER TUBE |
1 | |
| 7 | 86214 |
ПОДШИПНИК Water Tube Seal BEARING Water Tube Seal |
1 | superseded |
| 8 | 79791 |
ЗАЖИМ CO-PILOT CLAMP CO-PILOT |
1 | discontinued |
| 9 | 88669 |
КРЕПЛЕНИЕ RUBBER-DRIVESHAFT HOUSING MOUNT RUBBER-DRIVESHAFT HOUSING |
2 | discontinued |
