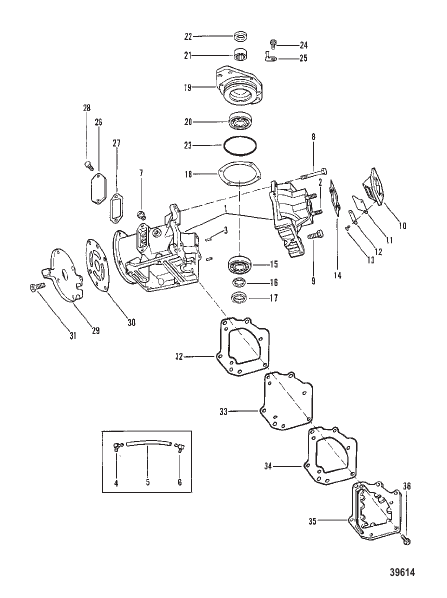

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 88139A79 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| - | 88675A79 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| 1 | 7744A2 |
БЛОК ЦИЛИНДРА В СБОРЕ [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below CYLINDER BLOCK ASSEMBLY [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
1 | superseded |
| 1 | 7696A2 |
БЛОК ЦИЛИНДРА В СБОРЕ [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up CYLINDER BLOCK ASSEMBLY [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | superseded |
| 10 | 70726 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ REED BLOCK |
1 | discontinued |
| 11 | 35836 |
ПЛАСТИНЧАТЫЙ КЛАПАН INLET VALVE REED INLET VALVE |
2 | |
| 12 | 22215 |
ФИКСАТОР REED RETAINER REED |
2 | discontinued |
| 13 | 28430 |
ВИНТ (№6-32 x 0.25) REED AND RETAINER TO BLOCK SCREW (#6-32 x .25) REED AND RETAINER TO BLOCK |
4 | |
| 14 | 35739 |
ПРОКЛАДКА REED BLOCK TO CRANKCASE GASKET REED BLOCK TO CRANKCASE |
1 | superseded |
| 15 | 72961 |
ПОДШИПНИК Шарик CRANKCASE (LOWER) BEARING Ball CRANKCASE (LOWER) |
1 | |
| 16 | 89794 |
ПРОСТАВКА LOWER BALL BEARING SPACER LOWER BALL BEARING |
1 | discontinued |
| 17 | 56397 |
УПЛОТНЕНИЕ Масло CRANKCASE (LOWER) SEAL Oil CRANKCASE (LOWER) |
1 | discontinued |
| 18 | 31412A1 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
AR | discontinued |
| 19 | 7536A1 |
КОРПУС В СБОРЕ Подшипник HOUSING ASSEMBLY Bearing |
1 | superseded |
| 2 | 66021 |
ШПИЛЬКА CARBURETOR STUD CARBURETOR |
2 | discontinued |
| 20 | 72961 |
ПОДШИПНИК Шарик BEARING HOUSING BEARING Ball BEARING HOUSING |
1 | |
| 21 | 31410 |
ПОДШИПНИК Ролик BEARING HOUSING BEARING Roller BEARING HOUSING |
1 | discontinued |
| 22 | 66301 |
УПЛОТНЕНИЕ Масло BEARING HOUSING SEAL Oil BEARING HOUSING |
1 | |
| 23 | 20863 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BEARING HOUSING O-RING BEARING HOUSING |
1 | |
| 24 | 39002 |
ВИНТ BEARING HOUSING (1/2") SCREW BEARING HOUSING (1/2") |
4 | discontinued |
| 25 | 88222 |
ТРАНЦЕВАЯ ПЛИТА GROUND-BEARING HOUSING SCREW TAB GROUND-BEARING HOUSING SCREW |
1 | discontinued |
| 26 | 35658 |
КРЫШКА TRANSFER COVER COVER TRANSFER COVER |
1 | discontinued |
| 27 | 35657 |
ПРОКЛАДКА TRANSFER PORT COVER GASKET TRANSFER PORT COVER |
1 | discontinued |
| 28 | 20720 |
ВИНТ (0.190-24 x 0.62) SCREW (.190-24 x .62) |
2 | discontinued |
| 29 | 7527 |
КРЫШКА CYLINDER BLOCK COVER CYLINDER BLOCK |
1 | discontinued |
| 3 | 85500 |
ШТИФТ Штифт (0.187 x 0.530) CRANKCASE TO CYLINDER BLOCK PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK |
2 | superseded |
| 30 | 78140 |
ПРОКЛАДКА COVER TO CYLINDER BLOCK GASKET COVER TO CYLINDER BLOCK |
1 | superseded |
| 31 | 76630 |
ВИНТ (0.250-20 x 1.00) SCREW (.250-20 x 1.00) |
4 | superseded |
| 32 | 78139 |
ПРОКЛАДКА CYLINDER BLOCK TO BAFFLE PLATE GASKET CYLINDER BLOCK TO BAFFLE PLATE |
1 | superseded |
| 33 | 46234 |
ПЛАСТИНА BAFFLE-EXHAUST MANIFOLD PLATE BAFFLE-EXHAUST MANIFOLD |
1 | discontinued |
| 34 | 78139 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 35 | 46171 |
КРЫШКА EXHAUST MANIFOLD COVER EXHAUST MANIFOLD |
1 | discontinued |
| 36 | 49668 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
6 | |
| 4 | 89275 |
ФИТИНГ BLEED DRAIN FITTING BLEED DRAIN |
1 | discontinued |
| 5 | 52742A1 |
РУКАВ BLEED DRAIN (8") HOSE BLEED DRAIN (8") |
1 | superseded |
| 6 | 88780 |
КОЛЕНЧАТЫЙ Трубопровод контрольного устройства BLEED DRAIN ELBOW Tell-Tale Tubing BLEED DRAIN |
1 | superseded |
| 7 | 35268 |
ВИНТ CYLINDER BLOCK SCREW CYLINDER BLOCK |
1 | superseded |
| 8 | 73280 |
ВИНТ CRANKCASE TO CYLINDER BLOCK (1 1/2") SCREW CRANKCASE TO CYLINDER BLOCK (1 1/2") |
2 | discontinued |
| 9 | 76621 |
ВИНТ CRANKCASE TO CYLINDER BLOCK (1") SCREW CRANKCASE TO CYLINDER BLOCK (1") |
8 | discontinued |
