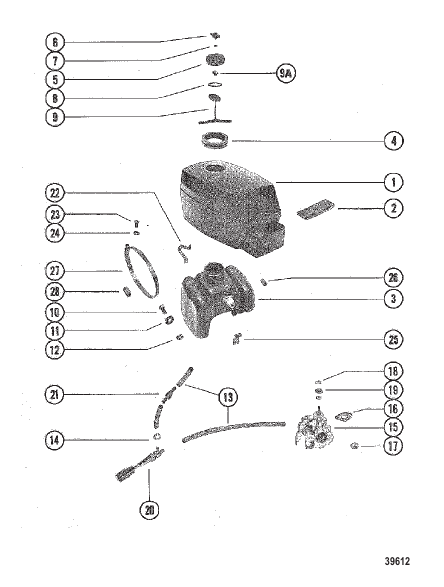

TOP COWL, FUEL TANK AND CARBURETOR
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 88139A79 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 7926 |
ВЕРХНИЙ КОЖУХ В СБОРЕ [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below TOP COWL ASSEMBLY [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
1 | superseded |
| 1 | 8158A1 |
ВЕРХНИЙ КОЖУХ В СБОРЕ [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up TOP COWL ASSEMBLY [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| 10 | 76630 |
ВИНТ (0.250-20 x 1.00) FUEL TANK TO POWERHEAD SCREW (.250-20 x 1.00) FUEL TANK TO POWERHEAD |
2 | superseded |
| 11 | 20346 |
ШАЙБА FUEL TANK SCREW WASHER FUEL TANK SCREW |
6 | superseded |
| 12 | 29031 |
ГАЙКА (1/4-20) FUEL TANK SCREW NUT (1/4-20) FUEL TANK SCREW |
2 | discontinued |
| 13 | 8950433 |
ТРУБОПРОВОД Топливо (12" AND 3 1/4") LINE Fuel (12" AND 3 1/4") |
3 | superseded |
| 14 | 68424 |
ЗАЖИМ FUEL LINE ATTACHING CLAMP FUEL LINE ATTACHING |
5 | discontinued |
| 15 | 7568 |
КАРБЮРАТОР CARBURETOR |
1 | discontinued |
| 16 | 70417 |
ПРОКЛАДКА CARBURETOR GASKET CARBURETOR |
2 | discontinued |
| 17 | 30406 |
ГАЙКА CARBURETOR ATTACHING NUT CARBURETOR ATTACHING |
2 | discontinued |
| 18 | 88223 |
ТОЛКАТЕЛЬ Кулачок FOLLOWER Cam |
1 | discontinued |
| 19 | 4002027 |
ГАЙКА CAM FOLLOWER TO CARBURETOR NUT CAM FOLLOWER TO CARBURETOR |
2 | discontinued |
| 2 | 87747 |
КРЫШКА CARBURETOR (TOP COWL) [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below COVER CARBURETOR (TOP COWL) [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
1 | superseded |
| 2 | 94108A1 |
КРЫШКА CARBURETOR (TOP COWL) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up COVER CARBURETOR (TOP COWL) [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| 20 | 89398 |
КЛАПАН FUEL SHUT-OFF VALVE FUEL SHUT-OFF |
1 | discontinued |
| 21 | 76934 |
ФИЛЬТР Топливо FILTER Fuel |
1 | |
| 22 | 90502 |
КРОНШТЕЙН FUEL TANK-REAR BRACKET FUEL TANK-REAR |
1 | superseded |
| 23 | 90565 |
ВИНТ (0.250-20 x 0.310) FUEL TANK CLAMP SCREW (.250-20 x .310) FUEL TANK CLAMP |
1 | discontinued |
| 24 | 53705 |
ШАЙБА FUEL TANK SCREW WASHER FUEL TANK SCREW |
1 | superseded |
| 25 | 90501 |
КРОНШТЕЙН FUEL TANK-FRONT BRACKET FUEL TANK-FRONT |
1 | discontinued |
| 26 | 90396 |
УПОР FUEL TANK BUMPER FUEL TANK |
2 | discontinued |
| 27 | 90497 |
ЗАЖИМ FUEL TANK ATTACHING CLAMP FUEL TANK ATTACHING |
1 | discontinued |
| 28 | 714933 |
ЛИТЬЕ TRIM-FUEL TANK CLAMP MOLDING TRIM-FUEL TANK CLAMP |
1 | discontinued |
| 3 | 7526 |
БАК Топливо [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below TANK Fuel [US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
1 | superseded |
| 3 | 8082 |
БАК Топливо [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up TANK Fuel [US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
1 | discontinued |
| 4 | 92882 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО TOP COWL GROMMET TOP COWL |
1 | superseded |
| 5 | 87615A1 |
КОЛПАЧОК В СБОРЕ Топливо CAP ASSEMBLY Fuel |
1 | superseded |
| 6 | 88297 |
ВИНТ VENT SCREW VENT |
1 | discontinued |
| 7 | 69643 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО VENT SCREW O-RING VENT SCREW |
1 | discontinued |
| 8 | 26722 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО FUEL CAP O-RING FUEL CAP |
1 | |
| 9 | 88298 |
ФИКСАТОР FUEL CAP RETAINER FUEL CAP |
1 | discontinued |
| 9 | 91925 |
ГАЙКА ТОЛКАТЕЛЯ SPEED-FUEL CAP RETAINER PUSH NUT SPEED-FUEL CAP RETAINER |
1 |
