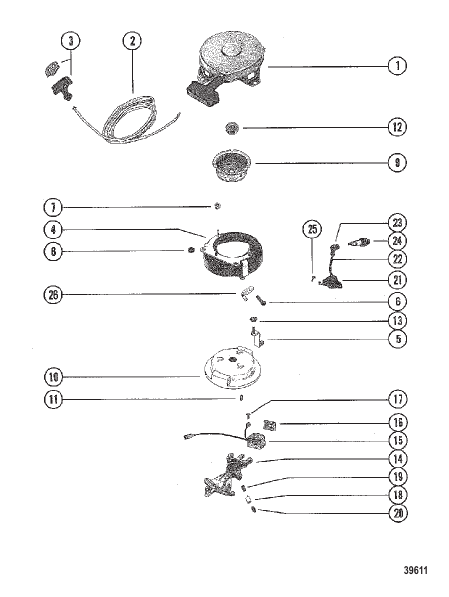

RECOIL STARTER AND FLYWHEEL
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 87622 |
СТАРТЕР В СБОРЕ Обратный ход STARTER ASSEMBLY Recoil |
1 | superseded |
| 10 | 7530 |
МАХОВИК FLYWHEEL |
1 | discontinued |
| 11 | 20094 |
КЛЮЧ Сегментная шпонка FLYWHEEL DRIVE KEY Woodruff FLYWHEEL DRIVE |
1 | |
| 12 | 20696 |
ГАЙКА FLYWHEEL TO CRANKSHAFT NUT FLYWHEEL TO CRANKSHAFT |
1 | discontinued |
| 13 | 20346 |
ШАЙБА RECOIL STARTER STUD WASHER RECOIL STARTER STUD |
4 | superseded |
| 14 | 88305 |
КОРПУС IGNITION MODULE HOUSING IGNITION MODULE |
1 | discontinued |
| 15 | 88182 |
БЛОК ЗАЖИГАНИЯ IGNITION MODULE |
1 | discontinued |
| 16 | 88306 |
ФИКСАТОР IGNITION MODULE RETAINER IGNITION MODULE |
1 | discontinued |
| 17 | 88307 |
ВИНТ WIRE TO HOUSING (5/16") SCREW WIRE TO HOUSING (5/16") |
1 | discontinued |
| 18 | 88188 |
КНОПКА FRICITON-HOUSING BUTTON FRICITON-HOUSING |
1 | discontinued |
| 19 | 90304 |
ПРУЖИНА COMPRESSION-FRICTION BUTTON SPRING COMPRESSION-FRICTION BUTTON |
1 | discontinued |
| 2 | 89141 |
ТРОС STARTER ROPE STARTER |
1 | superseded |
| 20 | 88186 |
ВИНТ (0.312-24 x 0.500) SET-FRICTION BUTTON SCREW (.312-24 x .500) SET-FRICTION BUTTON |
1 | discontinued |
| 21 | 87885 |
КАТУШКА Зажигание COIL Ignition |
1 | discontinued |
| 22 | 63212A2 |
ЖИЛА В СБОРЕ LEAD ASSEMBLY |
1 | superseded |
| 23 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ SPARK PLUG BOOT/TERMINAL KIT SPARK PLUG |
1 | |
| 24 | 88088 |
СВЕЧА ЗАЖИГАНИЯ (CHAMPION #L81Y) SPARK PLUG (CHAMPION #L81Y) |
1 | superseded |
| 24 | 88090 |
СВЕЧА ЗАЖИГАНИЯ (CHAMPION #QL81Y) CANADA AND BELGIUM SPARK PLUG (CHAMPION #QL81Y) CANADA AND BELGIUM |
1 | discontinued |
| 25 | 60605 |
ВИНТ (№10-16 x 0.750) IGNITION COIL SCREW (#10-16 x .750) IGNITION COIL |
2 | |
| 26 | 88221 |
ТРАНЦЕВАЯ ПЛИТА IDLE STOP TAB IDLE STOP |
1 | discontinued |
| 3 | 79470A1 |
КОМПЛЕКТ ФИКСАТОРОВ Трос RETAINER KIT Rope |
1 | |
| 4 | 93498A1 |
КРОНШТЕЙН В СБОРЕ FLYWHEEL GUARD BRACKET ASSEMBLY FLYWHEEL GUARD |
1 | superseded |
| 5 | 87934 |
НОЖКА BRACKET LEG BRACKET |
1 | discontinued |
| 6 | 54615 |
ВИНТ (0.250-20 x 0.625) BRACKET AND LEG ATTACHING SCREW (.250-20 x .625) BRACKET AND LEG ATTACHING |
3 | discontinued |
| 7 | 28941 |
ГАЙКА RECOIL STARTER ATTACHING NUT RECOIL STARTER ATTACHING |
4 | superseded |
| 8 | 90329 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BRACKET GROMMET BRACKET |
2 | |
| 9 | 87886 |
КОЛПАЧОК STARTER CUP STARTER |
1 | discontinued |
