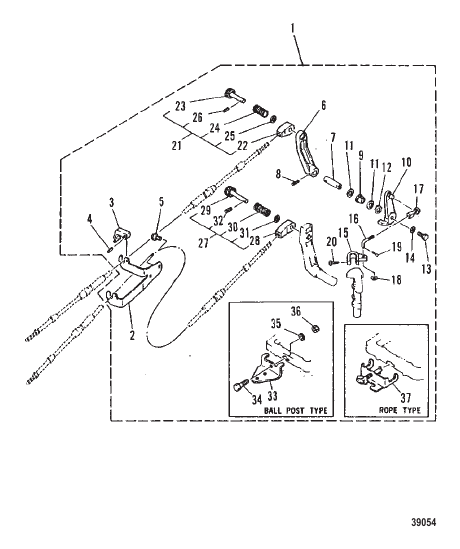

REMOTE CONTROL ATTACHING KIT
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 11661A1 |
КОМПЛЕКТ КРЕПЕЖА (BALL POST TYPE) ATTACHING KIT (BALL POST TYPE) |
1 | discontinued |
| 10 | 11665M |
РЫЧАГ MAGNETO CONTROL LEVER MAGNETO CONTROL |
1 | discontinued |
| 11 | 81846M |
ШАЙБА WASHER |
2 | discontinued |
| 12 | 11666M |
ШАЙБА WAVE WASHER WAVE |
1 | discontinued |
| 13 | 82879M |
БОЛТ BOLT |
1 | discontinued |
| 14 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 11667M |
РЫЧАГ MAGNETO CONTROL LEVER MAGNETO CONTROL |
1 | discontinued |
| 16 | 11668M |
ШТОК ROD |
1 | discontinued |
| 17 | 81225M |
ОКОНЕЧНЫЙ END |
1 | superseded |
| 18 | 83768M |
ШАЙБА WASHER |
1 | discontinued |
| 19 | 82129M |
ШТИФТ COTTER PIN COTTER |
1 | superseded |
| 2 | 11662M |
КРОНШТЕЙН REMOTE CONTROL BRACKET REMOTE CONTROL |
1 | discontinued |
| 20 | 11669M |
ВИНТ SCREW |
1 | discontinued |
| 21 | 84109M |
КОНЦЕВАЯ ЧАСТЬ В СБОРЕ Кабель (THROTTLE) END ASSEMBLY Cable (THROTTLE) |
1 | discontinued |
| 22 | 84110M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | discontinued |
| 23 | 83726M |
КРЮК CABLE HOOK CABLE |
1 | superseded |
| 24 | 83725M |
ПРУЖИНА SPRING |
1 | discontinued |
| 25 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 26 | 82146M |
ШТИФТ PIN |
1 | discontinued |
| 27 | 84106M |
КОНЦЕВАЯ ЧАСТЬ В СБОРЕ Кабель (SHIFT) END ASSEMBLY Cable (SHIFT) |
1 | discontinued |
| 28 | 84107M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | discontinued |
| 29 | 83722M |
КРЮК CABLE HOOK CABLE |
1 | superseded |
| 3 | 84113M |
ЗАЖИМ CABLE CLAMP CABLE |
2 | discontinued |
| 30 | 83721M |
ПРУЖИНА SPRING |
1 | discontinued |
| 31 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 32 | 82146M |
ШТИФТ PIN |
1 | discontinued |
| 33 | 11670M |
КРОНШТЕЙН STEERING (BALL POST TYPE) BRACKET STEERING (BALL POST TYPE) |
1 | superseded |
| 34 | 91636M |
БОЛТ BOLT |
1 | discontinued |
| 35 | 82220M |
ШАЙБА WASHER |
1 | discontinued |
| 36 | 81785M |
КОНТРГАЙКА SELF LOCKING LOCKNUT SELF LOCKING |
1 | discontinued |
| 37 | 83727M |
КРОНШТЕЙН STEERING (ROPE TYPE) BRACKET STEERING (ROPE TYPE) |
OPT | discontinued |
| 4 | 82146M |
ШТИФТ SPRING PIN SPRING |
2 | discontinued |
| 5 | 95456M |
БОЛТ BOLT |
2 | discontinued |
| 6 | 11663M |
РЫЧАГ MAGNETO CONTROL LEVER MAGNETO CONTROL |
1 | discontinued |
| 7 | 11664M |
ВАЛ SHAFT |
1 | discontinued |
| 8 | 82155M |
ШТИФТ PIN |
1 | discontinued |
| 9 | 81946M |
ВТУЛКА BUSHING |
1 | discontinued |
