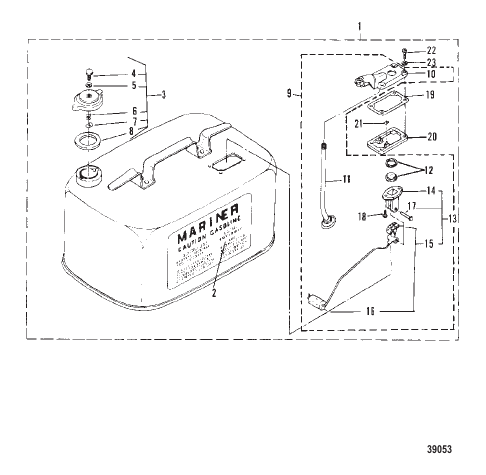

FUEL TANK (NOT ORIGINAL EQUIPMENT TANK)
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 1529A26 |
БАК В СБОРЕ Топливо COMPLETE (6 GALLON) TANK ASSEMBLY Fuel COMPLETE (6 GALLON) |
1 | superseded |
| 10 | 64841A3 |
КРЫШКА FUEL TANK COVER FUEL TANK |
1 | superseded |
| 11 | 75239 |
ТРУБА TUBE |
1 | discontinued |
| 12 | 98542A1 |
ОКНО В СБОРЕ FUEL GAUGE WINDOW ASSEMBLY FUEL GAUGE |
1 | discontinued |
| 13 | 28897A2 |
ДАТЧИК В СБОРЕ Топливо COMPLETE GAUGE ASSEMBLY Fuel COMPLETE |
1 | discontinued |
| 14 | 20430 |
ФИКСАТОР FUEL GAUGE RETAINER FUEL GAUGE |
1 | discontinued |
| 15 | 28897A1 |
ИНДИКАТОР И ПОПЛАВОК В СБОРЕ INDICATOR AND FLOAT ASSEMBLY |
1 | discontinued |
| 16 | 99274 |
ПОПЛАВОК FUEL GAUGE FLOAT FUEL GAUGE |
1 | discontinued |
| 17 | 20426 |
ЗАКЛЕПКА INDICATOR TO RETAINER RIVET INDICATOR TO RETAINER |
1 | discontinued |
| 18 | 62568 |
ВИНТ (№10-16 x 0.375) RETAINER TO FUEL TANK COVER SCREW (#10-16 x .375) RETAINER TO FUEL TANK COVER |
2 | |
| 19 | 28862 |
ПРОКЛАДКА COVER ASSEMBLY TO FRAME GASKET COVER ASSEMBLY TO FRAME |
1 | |
| 2 | 99734A1 |
НАКЛЕЙКА FUEL TANK DECAL FUEL TANK |
1 | superseded |
| 20 | 28860 |
РАМА RETAINING-FUEL TANK COVER FRAME RETAINING-FUEL TANK COVER |
1 | discontinued |
| 21 | 28903 |
ГАЙКА RETAINING FRAME TO FUEL TANK NUT RETAINING FRAME TO FUEL TANK |
2 | discontinued |
| 22 | 20411 |
ВИНТ (0.190-24 x 0.62) FUEL TANK COVER TO FUEL TANK SCREW (.190-24 x .62) FUEL TANK COVER TO FUEL TANK |
4 | discontinued |
| 23 | 29070 |
ШАЙБА FUEL TANK COVER FASTENING SCREW WASHER FUEL TANK COVER FASTENING SCREW |
4 | discontinued |
| 3 | 99734A1 |
НАКЛЕЙКА DECAL |
1 | superseded |
| 4 | 25575 |
ВИНТ VENT-FILLER CAP SCREW VENT-FILLER CAP |
1 | discontinued |
| 5 | 492211 |
ШАЙБА VENT SCREW WASHER VENT SCREW |
1 | superseded |
| 6 | 22227 |
ПРУЖИНА TENSION-VENT SCREW SPRING TENSION-VENT SCREW |
1 | discontinued |
| 7 | 28587 |
ГАЙКА SPEED-SPRING RETAINER NUT SPEED-SPRING RETAINER |
1 | discontinued |
| 8 | 41065 |
ПРОКЛАДКА FILLER CAP TO FUEL TANK GASKET FILLER CAP TO FUEL TANK |
1 | discontinued |
| 9 | 64841A1 |
СОЕДИНИТЕЛЬ/ДАТЧИК В СБОРЕ COMPLETE CONNECTOR/GAUGE ASSEMBLY COMPLETE |
1 | discontinued |
