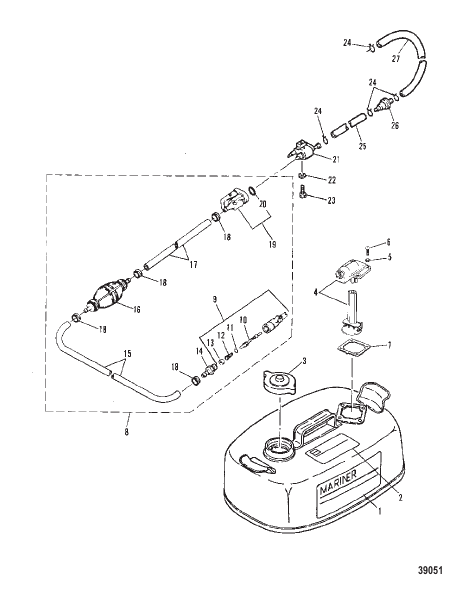

FUEL TANK AND FUEL LINES (ORIGINAL)(14 LITRE)
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 95539M |
НАКЛЕЙКА SIDE (ENGLISH) DECAL SIDE (ENGLISH) |
1 | discontinued |
| 1 | 95540M |
НАКЛЕЙКА SIDE (FRENCH) DECAL SIDE (FRENCH) |
1 | discontinued |
| 10 | 30187 |
ШТОК BAYONET BODY STEM BAYONET BODY |
1 | discontinued |
| 11 | 20415 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BAYONET BODY STEM O-RING BAYONET BODY STEM |
1 | superseded |
| 12 | 30189 |
ПРУЖИНА BAYONET BODY ASS'Y SPRING BAYONET BODY ASS'Y |
1 | |
| 13 | 30188 |
ШАЙБА CAP WASHER CAP |
1 | |
| 14 | 63187 |
ФИТИНГ Ниппель (0.250-18) FUEL LINE FITTING Barb (.250-18) FUEL LINE |
1 | |
| 15 | 16571M |
РУКАВ FUEL TANK TO PRIMER BULB HOSE FUEL TANK TO PRIMER BULB |
1 | discontinued |
| 16 | 17149M |
ЛАМПА BULB |
1 | superseded |
| 17 | 16573M |
РУКАВ HOSE |
1 | superseded |
| 18 | 16574M |
ЗАЖИМ HOSE CLAMP HOSE |
4 | discontinued |
| 19 | 16609M |
СОЕДИНИТЕЛЬ Топливо ENGINE FUEL CONNECTOR CONNECTOR Fuel ENGINE FUEL CONNECTOR |
1 | superseded |
| 2 | 95489M |
НАКЛЕЙКА TOP (ENGLISH) DECAL TOP (ENGLISH) |
1 | discontinued |
| 2 | 95503M |
НАКЛЕЙКА TOP (FRENCH) DECAL TOP (FRENCH) |
1 | discontinued |
| 20 | 82789M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО ENGINE FUEL CONNECTOR HOUSING O-RING ENGINE FUEL CONNECTOR HOUSING |
1 | discontinued |
| 21 | 14187M |
СОЕДИНИТЕЛЬ FUEL LINE CONNECTOR FUEL LINE |
1 | |
| 22 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 23 | 82405M |
БОЛТ BOLT |
1 | discontinued |
| 24 | 82047M |
ЗАЖИМ CLAMP |
4 | discontinued |
| 25 | 94806M |
РУКАВ HOSE |
1 | superseded |
| 26 | 80365M |
ФИЛЬТР FUEL FILTER FUEL |
1 | |
| 27 | 97129M |
РУКАВ HOSE |
1 | superseded |
| 3 | 14223M |
КОЛПАЧОК В СБОРЕ Топливный бак CAP ASSEMBLY Fuel Tank |
1 | superseded |
| 4 | 95541M |
КОРПУС В СБОРЕ FUEL CONNECTOR HOUSING ASSEMBLY FUEL CONNECTOR |
1 | discontinued |
| 5 | 95501M |
УПЛОТНЕНИЕ SEAL |
4 | discontinued |
| 6 | 95502M |
ВИНТ SCREW |
4 | discontinued |
| 7 | 95500M |
ПРОКЛАДКА HOUSING ASS'Y GASKET HOUSING ASS'Y |
1 | discontinued |
| 8 | 16570M |
ТРУБОПРОВОД В СБОРЕ Топливо LINE ASSEMBLY Fuel |
1 | superseded |
| 9 | 30185A3 |
ШТЫК В СБОРЕ Топливо BAYONET ASSEMBLY Fuel |
1 | superseded |
