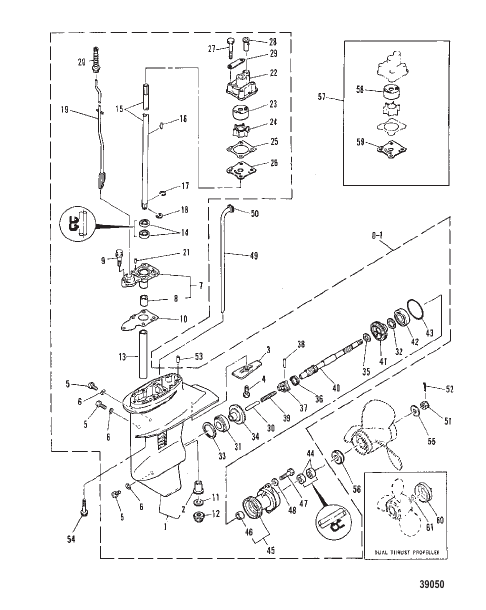

GEARHOUSING ASSEMBLY
Parts (78)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11655M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| - | 11656M |
РЕМОНТНЫЙ КОМПЛЕКТ REPAIR KIT |
1 | superseded |
| 0-1 | 9314M |
КАРТЕР РЕДУКТОРА В СБОРЕ (SHORT SHAFT) GEAR HOUSING ASSEMBLY (SHORT SHAFT) |
1 | discontinued |
| 0-1 | 9315M |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG SHAFT) GEAR HOUSING ASSEMBLY (LONG SHAFT) |
1 | discontinued |
| 1 | 9316M |
КАРТЕР РЕДУКТОРА В СБОРЕ Basic GEAR HOUSING ASSEMBLY Basic |
1 | discontinued |
| 10 | 11574M |
ПРОКЛАДКА LOWER CASING GASKET LOWER CASING |
1 | discontinued |
| 11 | 11575M |
ШАЙБА THRUST (0.8MM) WASHER THRUST (0.8MM) |
1 | discontinued |
| 11 | 11576M |
ШАЙБА THRUST (1.0MM) WASHER THRUST (1.0MM) |
1 | discontinued |
| 11 | 11577M |
ШАЙБА THRUST (1.2MM) WASHER THRUST (1.2MM) |
1 | discontinued |
| 11 | 11578M |
ШАЙБА THRUST (1.4MM) WASHER THRUST (1.4MM) |
1 | discontinued |
| 12 | 11579M |
ПЕРЕДАЧА PINION GEAR PINION |
1 | discontinued |
| 13 | 11580M |
ВТУЛКА COLLAR |
1 | discontinued |
| 14 | 11464M |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | discontinued |
| 15 | 11581M |
ВЕДУЩИЙ ВАЛ (SHORT) DRIVESHAFT (SHORT) |
1 | discontinued |
| 15 | 11582M |
ВЕДУЩИЙ ВАЛ (LONG) DRIVESHAFT (LONG) |
1 | discontinued |
| 15 | 11583M |
ВЕДУЩИЙ ВАЛ (ULTRA LONG) DRIVESHAFT (ULTRA LONG) |
1 | discontinued |
| 16 | 81912M |
КЛЮЧ WATER PUMP KEY WATER PUMP |
1 | discontinued |
| 17 | 11584M |
ЗАЖИМ CLIP |
1 | discontinued |
| 18 | 82331M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 19 | 14206M |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ В СБОРЕ (SHORT) SHIFT CAM ASSEMBLY (SHORT) |
1 | discontinued |
| 19 | 14207M |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ В СБОРЕ (LONG) SHIFT CAM ASSEMBLY (LONG) |
1 | discontinued |
| 19 | 14208M |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ В СБОРЕ (ULTRA LONG) SHIFT CAM ASSEMBLY (ULTRA LONG) |
1 | discontinued |
| 2 | 11570M |
ВТУЛКА DRIVE SHAFT BUSHING DRIVE SHAFT |
1 | discontinued |
| 20 | 15304M |
ЧЕХОЛ SHIFT ROD BOOT SHIFT ROD |
1 | discontinued |
| 21 | 82354M |
ШТИФТ DOWEL PIN DOWEL |
2 | discontinued |
| 22 | 11588M |
КОРПУС WATER PUMP HOUSING WATER PUMP |
1 | superseded |
| 23 | 11589M |
ВСТАВКА CARTRIDGE INSERT CARTRIDGE |
1 | discontinued |
| 24 | 11590M |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 25 | 11591M |
ПРОКЛАДКА WATER PUMP GASKET WATER PUMP |
1 | superseded |
| 26 | 11592M |
НАРУЖНАЯ ПЛАСТИНА CARTRIDGE OUTER PLATE CARTRIDGE |
1 | discontinued |
| 27 | 92536M |
БОЛТ BOLT |
4 | superseded |
| 28 | 80532M |
РЕЗИНА WATER SEAL RUBBER WATER SEAL |
1 | discontinued |
| 29 | 11593M |
ПЛАСТИНА PLATE |
2 | discontinued |
| 3 | 14205M |
АНОД ANODE |
1 | discontinued |
| 30 | 11594M |
ПЛУНЖЕР SHIFT PLUNGER SHIFT |
1 | discontinued |
| 31 | 84805M |
ПОДШИПНИК FOWARD GEAR BEARING FOWARD GEAR |
1 | superseded |
| 32 | 80543M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА GEAR ADJUST (0.1MM) SHIM GEAR ADJUST (0.1MM) |
AR | discontinued |
| 33 | 81638M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА GEAR ADJUST (0.3MM) SHIM GEAR ADJUST (0.3MM) |
AR | discontinued |
| 33 | 81639M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА GEAR ADJUST (0.5MM) SHIM GEAR ADJUST (0.5MM) |
AR | discontinued |
| 33 | 81640M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА GEAR ADJUST (0.1MM) SHIM GEAR ADJUST (0.1MM) |
AR | superseded |
| 33 | 81641M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА GEAR ADJUST (0.3MM) SHIM GEAR ADJUST (0.3MM) |
AR | superseded |
| 33 | 81642M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА GEAR ADJUST (0.5MM) SHIM GEAR ADJUST (0.5MM) |
AR | superseded |
| 34 | 11595M |
РЕДУКТОР В СБОРЕ FOWARD GEAR ASSEMBLY FOWARD |
1 | discontinued |
| 35 | 11596M |
ШАЙБА WASHER |
1 | discontinued |
| 36 | 81013M |
КОЛЬЦО CROSS PIN RING CROSS PIN |
1 | discontinued |
| 37 | 11597M |
МУФТА СЦЕПЛЕНИЯ DOG CLUTCH DOG |
1 | discontinued |
| 38 | 11598M |
ШТИФТ CROSS PIN CROSS |
1 | discontinued |
| 39 | 14209M |
ПРУЖИНА SPRING |
1 | discontinued |
| 4 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 40 | 11599M |
ВАЛ PROPELLER SHAFT PROPELLER |
1 | discontinued |
| 41 | 11647M |
РЕДУКТОР В СБОРЕ REVERSE GEAR ASSEMBLY REVERSE |
1 | discontinued |
| 42 | 95475M |
ПОДШИПНИК REVERSE GEAR BEARING REVERSE GEAR |
1 | superseded |
| 43 | 82281M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 44 | 82226M |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | |
| 45 | 11648M |
ПРОБКА LOWER CASING CAP LOWER CASING |
1 | discontinued |
| 46 | 11649M |
ВТУЛКА BUSHING |
1 | discontinued |
| 47 | 91725M |
БОЛТ BOLT |
2 | superseded |
| 48 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 49 | 11650M |
ТРУБА WATER (SHORT - 373MM) TUBE WATER (SHORT - 373MM) |
1 | discontinued |
| 49 | 11651M |
ТРУБА WATER (LONG - 513MM) TUBE WATER (LONG - 513MM) |
1 | discontinued |
| 49 | 11652M |
ТРУБА WATER (ULTRA LONG - 563MM) TUBE WATER (ULTRA LONG - 563MM) |
1 | discontinued |
| 5 | 81924M |
ПРОБКА PLUG |
3 | discontinued |
| 50 | 11653M |
УПЛОТНЕНИЕ Вода SEAL Water |
1 | superseded |
| 51 | 84087M |
ГАЙКА PROPELLER NUT PROPELLER |
1 | superseded |
| 52 | 99046M |
ШТИФТ COTTER PIN COTTER |
1 | superseded |
| 53 | 82354M |
ШТИФТ DOWEL PIN DOWEL |
2 | discontinued |
| 54 | 11561M |
БОЛТ BOLT |
4 | discontinued |
| 55 | 84275M |
ШАЙБА WASHER |
1 | superseded |
| 56 | 11654M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 57 | 11657M |
КОМПЛЕКТ НАСОСА Хромированный PUMP KIT Chrome |
1 | discontinued |
| 58 | 11658M |
ВСТАВКА CARTRIDGE INSERT CARTRIDGE |
1 | discontinued |
| 59 | 11659M |
НАРУЖНАЯ ПЛАСТИНА CARTRIDGE OUTER PLATE CARTRIDGE |
1 | discontinued |
| 6 | 81987M |
ПРОКЛАДКА GASKET |
3 | superseded |
| 60 | 11599M |
ВАЛ PROPELLER (FOR DUAL THRUST PROP.) SHAFT PROPELLER (FOR DUAL THRUST PROP.) |
1 | discontinued |
| 61 | 84974M |
ШАЙБА (FOR DUAL THRUST PROP.) WASHER (FOR DUAL THRUST PROP.) |
1 | discontinued |
| 7 | 11572M |
КОРПУС BEARING HOUSING BEARING |
1 | discontinued |
| 8 | 11573M |
ВТУЛКА BUSHING |
1 | discontinued |
| 9 | 92523M |
БОЛТ BOLT |
1 | superseded |
