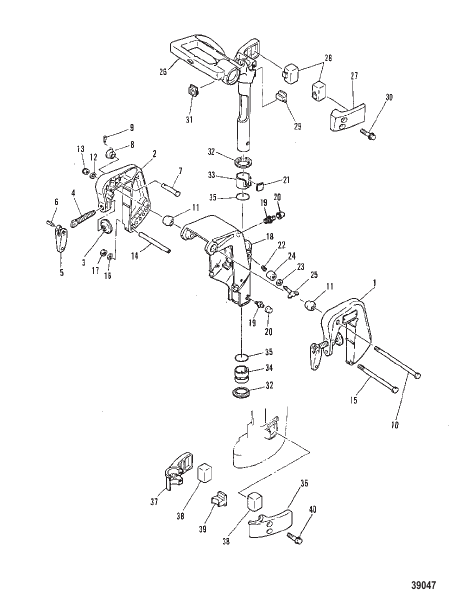

CLAMP AND SWIVEL BRACKET
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9309M |
КРОНШТЕЙН CLAMP (PORT) BRACKET CLAMP (PORT) |
1 | discontinued |
| 10 | 11530M |
БОЛТ BOLT |
1 | discontinued |
| 11 | 11531M |
КОМП. FRICTION PIECE FRICTION |
2 | discontinued |
| 12 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 13 | 84295M |
ГАЙКА SELF-LOCKING NUT SELF-LOCKING |
1 | discontinued |
| 14 | 94568M |
ВТУЛКА COLLAR |
1 | discontinued |
| 15 | 11532M |
БОЛТ BOLT |
1 | discontinued |
| 16 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 17 | 82389M |
ГАЙКА NUT |
1 | discontinued |
| 18 | 9311M |
КРОНШТЕЙН SWIVEL BRACKET SWIVEL |
1 | discontinued |
| 19 | 82369M |
ФИТИНГ GREASE FITTING GREASE |
2 | |
| 2 | 9310M |
КРОНШТЕЙН CLAMP (STARBOARD) BRACKET CLAMP (STARBOARD) |
1 | discontinued |
| 20 | 81439M |
ПРОБКА GREASE FITTING CAP GREASE FITTING |
2 | discontinued |
| 21 | 11533M |
ПЛАСТИНА FRICTION PLATE FRICTION |
1 | discontinued |
| 22 | 83488M |
ПРУЖИНА COMPRESSION SPRING COMPRESSION |
1 | discontinued |
| 23 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 24 | 11534M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 25 | 11535M |
ВИНТ FRICTION PIECE SCREW FRICTION PIECE |
1 | discontinued |
| 26 | 15437M |
КРОНШТЕЙН STEERING BRACKET STEERING |
1 | discontinued |
| 27 | 11537M |
КРЫШКА UPPER MOUNT COVER UPPER MOUNT |
1 | discontinued |
| 28 | 11538M |
КРЕПЛЕНИЕ UPPER SIDE MOUNT UPPER SIDE |
2 | discontinued |
| 29 | 11539M |
КРЕПЛЕНИЕ UPPER FRONT MOUNT UPPER FRONT |
1 | discontinued |
| 3 | 80638M |
НАКЛАДКА TRANSOM CLAMP PAD TRANSOM CLAMP |
2 | discontinued |
| 30 | 91788M |
БОЛТ BOLT |
2 | discontinued |
| 31 | 11540M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 32 | 11541M |
ШАЙБА THRUST WASHER THRUST |
2 | discontinued |
| 33 | 11542M |
ВТУЛКА PIVOT SHAFT BUSHING PIVOT SHAFT |
1 | discontinued |
| 34 | 11543M |
ВТУЛКА PIVOT SHAFT BUSHING PIVOT SHAFT |
1 | discontinued |
| 35 | 11544M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 36 | 11545M |
КОРПУС LOWER MOUNT HOUSING LOWER MOUNT |
1 | discontinued |
| 37 | 11546M |
КОРПУС LOWER MOUNT HOUSING LOWER MOUNT |
1 | discontinued |
| 38 | 11547M |
КРЕПЛЕНИЕ LOWER SIDE MOUNT LOWER SIDE |
2 | discontinued |
| 39 | 11548M |
КРЕПЛЕНИЕ LOWER SIDE MOUNT LOWER SIDE |
1 | discontinued |
| 4 | 11529M |
ВИНТ TRANSOM CLAMP SCREW TRANSOM CLAMP |
2 | superseded |
| 40 | 91788M |
БОЛТ BOLT |
2 | discontinued |
| 5 | 91784M |
РУКОЯТКА TRANSOM CLAMP HANDLE TRANSOM CLAMP |
2 | |
| 6 | 41267M |
ШТИФТ PIN |
2 | superseded |
| 7 | 84835M |
ВАЛ STOPPER SHAFT STOPPER |
1 | discontinued |
| 8 | 95650M |
РУЧКА STOPPER KNOB STOPPER |
1 | discontinued |
| 9 | 82148M |
ШТИФТ SPRING PIN SPRING |
1 | discontinued |
