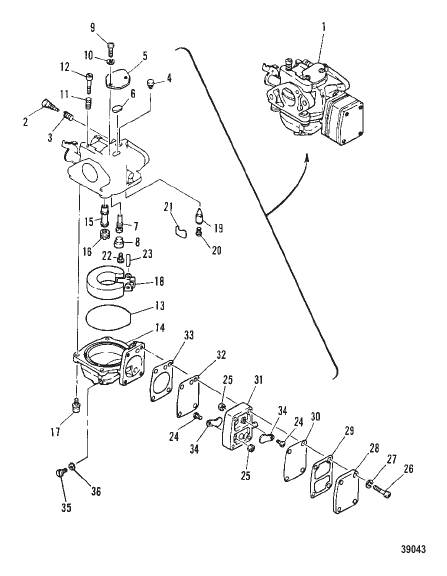

CARBURETOR
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11502M |
РЕМОНТНЫЙ КОМПЛЕКТ REPAIR KIT |
1 | |
| 1 | 9692M |
КАРБЮРАТОР В СБОРЕ (8M) CARBURETOR ASSEMBLY (8M) |
1 | discontinued |
| 1 | 9693M |
КАРБЮРАТОР В СБОРЕ (6M - 6H8) CARBURETOR ASSEMBLY (6M - 6H8) |
1 | discontinued |
| 1 | 9694M |
КАРБЮРАТОР В СБОРЕ (6M - 6H6) CARBURETOR ASSEMBLY (6M - 6H6) |
1 | discontinued |
| 10 | 82184M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | superseded |
| 11 | 82080M |
ПРУЖИНА SPRING |
1 | discontinued |
| 12 | 81277M |
ВИНТ STOP SCREW STOP |
1 | discontinued |
| 13 | 11483M |
ПРОКЛАДКА FLAOT CHAMBER GASKET FLAOT CHAMBER |
1 | discontinued |
| 14 | 17358M |
КОРПУС FLOAT CHAMBER BODY FLOAT CHAMBER |
1 | discontinued |
| 15 | 11485M |
ШТУЦЕР MAIN (8M) NOZZLE MAIN (8M) |
1 | discontinued |
| 15 | 11486M |
ШТУЦЕР MAIN (6M - 6H8) NOZZLE MAIN (6M - 6H8) |
1 | discontinued |
| 15 | 17359M |
ШТУЦЕР MAIN (6M - 6H6) NOZZLE MAIN (6M - 6H6) |
1 | discontinued |
| 16 | 11487M |
ВОДОМЕТНЫЙ MAIN (#98) (8M) JET MAIN (#98) (8M) |
1 | discontinued |
| 16 | 11488M |
ВОДОМЕТНЫЙ MAIN (#100) (6M - 6H8) JET MAIN (#100) (6M - 6H8) |
1 | discontinued |
| 16 | 17360M |
ВОДОМЕТНЫЙ MAIN (#98) (6M - 6H6) JET MAIN (#98) (6M - 6H6) |
1 | discontinued |
| 17 | 83373M |
ВИНТ WITH WASHER SCREW WITH WASHER |
4 | superseded |
| 18 | 11489M |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 19 | 11490M |
КЛАПАН FLOAT VALVE FLOAT |
1 | discontinued |
| 2 | 83889M |
ВИНТ ADJUSTING SCREW ADJUSTING |
1 | discontinued |
| 20 | 92639M |
ШТИФТ Поплавок VALVE PIN Float VALVE |
1 | |
| 21 | 82781M |
ЗАЖИМ CLIP |
1 | superseded |
| 22 | 82500M |
ВИНТ (M4 x 8) SCREW (M4 x 8) |
1 | discontinued |
| 23 | 97730M |
ШТИФТ ARM PIN ARM |
1 | discontinued |
| 24 | 11492M |
ВИНТ SCREW |
2 | discontinued |
| 25 | 11493M |
ГАЙКА NUT |
2 | discontinued |
| 26 | 11494M |
ВИНТ SCREW |
4 | discontinued |
| 27 | 82184M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | superseded |
| 28 | 11495M |
КРЫШКА PUMP COVER PUMP |
1 | discontinued |
| 29 | 11496M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 3 | 94499M |
ПРУЖИНА SPRING |
1 | discontinued |
| 30 | 11497M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 31 | 11498M |
КОРПУС PUMP BODY PUMP |
1 | discontinued |
| 32 | 11499M |
ДИАФРАГМА DIAPHRAGM |
1 | superseded |
| 33 | 11500M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 34 | 11501M |
КЛАПАН CHECK VALVE CHECK |
2 | discontinued |
| 35 | 17361M |
ВИНТ DRAIN SCREW DRAIN |
1 | discontinued |
| 36 | 17362M |
ШАЙБА WASHER |
1 | discontinued |
| 4 | 11477M |
ПРОБКА CAP |
1 | discontinued |
| 5 | 11478M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 6 | 11479M |
УПАКОВКА PACKING |
1 | discontinued |
| 7 | 11480M |
ВОДОМЕТНЫЙ SLOW (#45) JET SLOW (#45) |
1 | discontinued |
| 8 | 83369M |
ПРОБКА CAP |
1 | superseded |
| 9 | 82509M |
ВИНТ SCREW |
2 | superseded |
