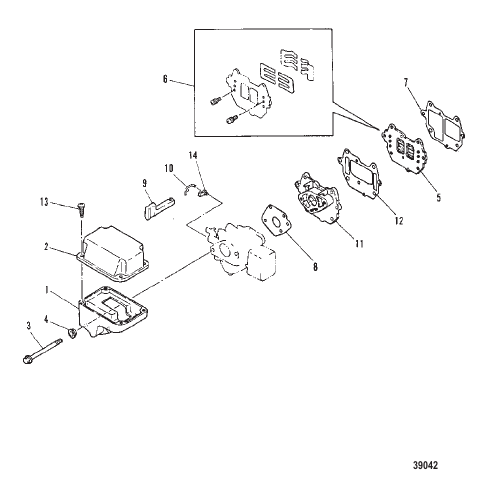

INTAKE MANIFOLD
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11434M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 11465M |
КРЫШКА AIR INTAKE (OUTER) COVER AIR INTAKE (OUTER) |
1 | discontinued |
| 10 | 11474M |
ШТОК CHOKE LINK ROD CHOKE LINK |
1 | discontinued |
| 11 | 11475M |
КОЛЛЕКТОР INTAKE MANIFOLD INTAKE |
1 | discontinued |
| 12 | 11476M |
ПРОКЛАДКА INTAKE MANIFOLD GASKET INTAKE MANIFOLD |
1 | discontinued |
| 13 | 96610M |
ВИНТ SCREW |
4 | discontinued |
| 14 | 81191M |
КРОНШТЕЙН CHOKE ROD BRACKET CHOKE ROD |
1 | superseded |
| 2 | 11466M |
КРЫШКА AIR INTAKE (INNER) COVER AIR INTAKE (INNER) |
1 | discontinued |
| 3 | 11467M |
ВИНТ SCREW |
2 | discontinued |
| 4 | 17044M |
ВТУЛКА BUSHING |
2 | discontinued |
| 5 | 11469M |
ПЛАСТИНЧАТЫЙ КЛАПАН В СБОРЕ REED VALVE ASSEMBLY |
1 | discontinued |
| 6 | 11470M |
НАБОР ПЛАСТИНЧАТЫХ КЛАПАНОВ (REED STOPS NOT INCLUDED) REED SET (REED STOPS NOT INCLUDED) |
1 | discontinued |
| 7 | 11471M |
ПРОКЛАДКА REED VALVE GASKET REED VALVE |
1 | discontinued |
| 8 | 11472M |
ПРОКЛАДКА CARBURETOR GASKET CARBURETOR |
1 | discontinued |
| 9 | 11473M |
РУЧКА CHOKE KNOB CHOKE |
1 | discontinued |
