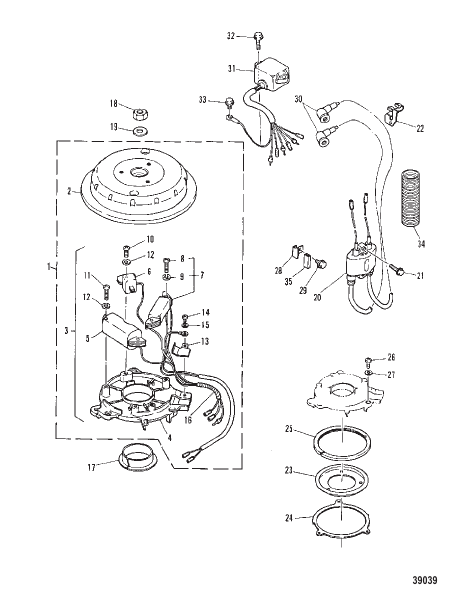

C.D.I. MAGNETO
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9302M |
ИНДУКТОР В СБОРЕ MAGNETO ASSEMBLY |
1 | discontinued |
| 10 | 95178M |
ВИНТ SCREW |
1 | discontinued |
| 11 | 95174M |
ВИНТ SCREW |
2 | superseded |
| 12 | 82208M |
ШАЙБА WASHER |
3 | superseded |
| 13 | 11437M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 14 | 82513M |
ВИНТ SCREW |
1 | superseded |
| 15 | 82184M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | superseded |
| 16 | 11439M |
ПРОВОД LEAD WIRE LEAD |
1 | discontinued |
| 17 | 11440M |
ВТУЛКА BUSHING |
1 | discontinued |
| 18 | 81769M |
ГАЙКА NUT |
1 | discontinued |
| 19 | 81805M |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 9303M |
РОТОР В СБОРЕ ROTOR ASSEMBLY |
1 | discontinued |
| 20 | 11441M |
КАТУШКА В СБОРЕ Зажигание COIL ASSEMBLY Ignition |
1 | discontinued |
| 21 | 11945M |
БОЛТ BOLT |
2 | discontinued |
| 22 | 11442M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 23 | 11443M |
ФИКСАТОР MAGNETO BASE RETAINER MAGNETO BASE |
1 | discontinued |
| 24 | 11444M |
ФИКСАТОР MAGNETO BASE RETAINER MAGNETO BASE |
1 | discontinued |
| 25 | 92572M |
ПЛАСТИНА BASE FRICTION PLATE BASE FRICTION |
1 | discontinued |
| 26 | 83523M |
ВИНТ SCREW |
3 | discontinued |
| 27 | 82211M |
ШАЙБА WASHER |
3 | discontinued |
| 28 | 11445M |
СТОПОР MAGNETO BASE STOPPER MAGNETO BASE |
1 | discontinued |
| 29 | 95456M |
БОЛТ BOLT |
1 | discontinued |
| 3 | 11435M |
ОСНОВАНИЕ В СБОРЕ BASE AAS'Y |
1 | discontinued |
| 30 | 82788M |
КОЛПАЧОК В СБОРЕ Свеча зажигания CAP ASSEMBLY Spark Plug |
2 | superseded |
| 31 | 41305M |
РАСПРЕДЕЛИТЕЛЬНАЯ КОРОБКА В СБОРЕ SWITCHBOX ASSEMBLY |
1 | discontinued |
| 32 | 91674M |
БОЛТ BOLT |
2 | discontinued |
| 33 | 95456M |
БОЛТ BOLT |
1 | discontinued |
| 34 | 11446M |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 35 | 11447M |
ПРОБКА CAP |
1 | discontinued |
| 4 | 11436M |
БАЗА MAGNETO BASE MAGNETO |
1 | discontinued |
| 5 | 41829M |
КАТУШКА В СБОРЕ Нагнетание воздуха COIL ASSEMBLY Charge |
1 | superseded |
| 6 | 41830M |
КАТУШКА В СБОРЕ Импульсный генератор COIL ASSEMBLY Pulser |
1 | discontinued |
| 7 | 41866M |
КАТУШКА В СБОРЕ Зарядка (SEE NOTE) COIL ASSEMBLY Lighting (SEE NOTE) |
1 | discontinued |
| 8 | 82521M |
ВИНТ SCREW |
2 | superseded |
| 9 | 82208M |
ШАЙБА WASHER |
2 | superseded |
