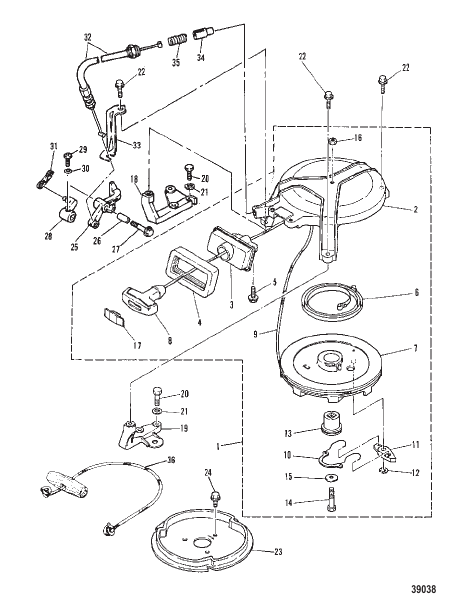

RECOIL STARTER
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9300M |
СТАРТЕР В СБОРЕ Обратный ход STARTER ASSEMBLY Recoil |
1 | discontinued |
| 10 | 11425M |
ПРУЖИНА PAWL DRIVE SPRING PAWL DRIVE |
1 | discontinued |
| 11 | 83252M |
СТОПОР DRIVE PAWL DRIVE |
1 | |
| 12 | 84895M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 13 | 11426M |
ВТУЛКА BUSHING |
1 | discontinued |
| 14 | 83285M |
БОЛТ BOLT |
1 | discontinued |
| 15 | 92564M |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 82380M |
ГАЙКА NUT |
1 | superseded |
| 17 | 41882M |
КРЫШКА COVER |
1 | discontinued |
| 18 | 11427M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 19 | 11428M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 2 | 9301M |
КОРОБКА STARTER CASE STARTER |
1 | discontinued |
| 20 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | superseded |
| 21 | 82214M |
ШАЙБА WASHER |
4 | discontinued |
| 22 | 91674M |
БОЛТ BOLT |
3 | discontinued |
| 23 | 11429M |
ШКИВ STARTER PULLEY STARTER |
1 | discontinued |
| 24 | 11430M |
БОЛТ BOLT |
3 | discontinued |
| 25 | 17365M |
ARM (6M) ARM (6M) |
1 | discontinued |
| 25 | 11943M |
ARM (8M) ARM (8M) |
1 | discontinued |
| 26 | 11944M |
ВТУЛКА COLLAR |
1 | discontinued |
| 27 | 11945M |
БОЛТ BOLT |
1 | discontinued |
| 28 | 11946M |
РЫЧАГ Шток переключения передач LEVER Shift Rod |
1 | discontinued |
| 29 | 83356M |
ВИНТ SCREW |
1 | discontinued |
| 3 | 11422M |
НАПРАВЛЯЮЩАЯ STARTER ROPE GUIDE STARTER ROPE |
1 | discontinued |
| 30 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
| 31 | 11947M |
СОЕДИНИТЕЛЬ LINK |
1 | discontinued |
| 32 | 11941M |
КАБЕЛЬ STARTER STOP CABLE STARTER STOP |
1 | discontinued |
| 33 | 11942M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 34 | 81106M |
ПЛУНЖЕР STARTER STOP PLUNGER STARTER STOP |
1 | discontinued |
| 35 | 82079M |
ПРУЖИНА COMPRESSION SPRING COMPRESSION |
1 | discontinued |
| 36 | 47341A1 |
КОМПЛЕКТ ТРОСА И РУКОЯТКИ Ручной/аварийный запуск ROPE AND HANDLE KIT Manual/Emergency Start |
1 | superseded |
| 4 | 11423M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 5 | 91686M |
БОЛТ BOLT |
2 | discontinued |
| 6 | 95484M |
ПРУЖИНА SPRING |
1 | |
| 7 | 11424M |
БАК SHEAVE DRUM SHEAVE |
1 | discontinued |
| 8 | 95468M |
РУКОЯТКА STARTER HANDLE STARTER |
1 | discontinued |
| 9 | 79629A1 |
ТРОС Стартер ROPE Starter |
1 | superseded |
