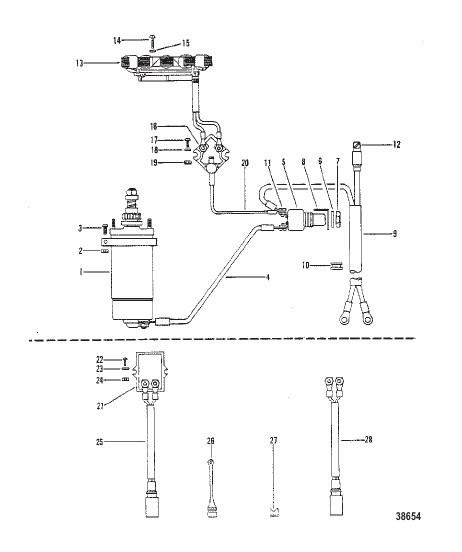

ELECTRIC COMPONENTS
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 78011 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | discontinued |
| 10 | 86361 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BATTERY CABLE GROMMET BATTERY CABLE |
1 | |
| 11 | 45742 |
ВИНТ (0.190-32 x 0.312) BATTERY CABLE ATTACHING SCREW (.190-32 x .312) BATTERY CABLE ATTACHING |
1 | |
| 12 | 98253 |
ВИНТ (0.250-20 x 0.500) BATTERY CABLE ATTACHING SCREW (.250-20 x .500) BATTERY CABLE ATTACHING |
1 | |
| 13 | 74367A12 |
СТАТОР ЗАЖИГАНИЯ В СБОРЕ LIGHTING STATOR ASSEMBLY |
1 | superseded |
| 13 | 74367A12 |
СТАТОР ЗАЖИГАНИЯ В СБОРЕ BELGIUM LIGHTING STATOR ASSEMBLY BELGIUM |
1 | superseded |
| 14 | 73696 |
ВИНТ LIGHTING STATOR ATTACHING (1-5/8") SCREW LIGHTING STATOR ATTACHING (1-5/8") |
2 | discontinued |
| 15 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LIGHTING STATOR SCREW LOCKWASHER (#10) Stainless Steel LIGHTING STATOR SCREW |
2 | |
| 16 | 62351A2 |
ВЫПРЯМИТЕЛЬ В СБОРЕ RECTIFIER ASSEMBLY |
1 | superseded |
| 17 | 48408 |
ВИНТ (№10-16 x 0.500) RECTIFIER SCREW (#10-16 x .500) RECTIFIER |
2 | |
| 18 | 62769 |
ПРОСТАВКА RECTIFIER SCREW SPACER RECTIFIER SCREW |
1 | discontinued |
| 19 | 45076 |
ГАЙКА (№10-32), латунь RECTIFIER TERMINAL NUT (#10-32) Brass RECTIFIER TERMINAL |
3 | |
| 2 | 55511 |
ВИНТ (0.312-18 x 1.500) SCREW (.312-18 x 1.500) |
2 | discontinued |
| 20 | 61393A9 |
ПРОВОД В СБОРЕ WIRE ASSEMBLY |
1 | discontinued |
| 21 | 95845 |
РЕГУЛЯТОР Напряжение BELGIUM REGULATOR Voltage BELGIUM |
1 | superseded |
| 22 | 92799 |
ВИНТ (№10-16 x 1.12) BELGIUM SCREW (#10-16 x 1.12) BELGIUM |
2 | |
| 23 | 62769 |
ПРОСТАВКА VOLTAGE REGULATOR SCREW BELGIUM SPACER VOLTAGE REGULATOR SCREW BELGIUM |
2 | discontinued |
| 24 | 45076 |
ГАЙКА (№10-32), латунь VOLTAGE REGULATOR TERMINAL BELGIUM NUT (#10-32) Brass VOLTAGE REGULATOR TERMINAL BELGIUM |
2 | |
| 25 | 74725A2 |
ЖГУТ ПРОВОДОВ В СБОРЕ (BLACK/RED) BELGIUM HARNESS ASSEMBLY (BLACK/RED) BELGIUM |
1 | |
| 26 | 71663 |
ПРОБКА HARNESS BELGIUM PLUG HARNESS BELGIUM |
1 | |
| 27 | 74361 |
ПРОБКА HARNESS TO BOTTOM COWL BELGIUM PLUG HARNESS TO BOTTOM COWL BELGIUM |
1 | |
| 28 | 65017A4 |
ЖГУТ ПРОВОДОВ В СБОРЕ LIGHTING (EXTERNAL) BELGIUM HARNESS ASSEMBLY LIGHTING (EXTERNAL) BELGIUM |
1 | discontinued |
| 3 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) STARTER MOTOR SCREW LOCKWASHER (.312) STARTER MOTOR SCREW |
2 | superseded |
| 4 | 76741A1 |
ПРОВОД В СБОРЕ STARTING SWITCH (YELLOW) WIRE ASSEMBLY STARTING SWITCH (YELLOW) |
1 | discontinued |
| 5 | 73883 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Система запуска SWITCH ASSEMBLY Starting |
1 | discontinued |
| 6 | 30516 |
ШАЙБА STARTING SWITCH WASHER STARTING SWITCH |
1 | discontinued |
| 7 | 74394 |
ГАЙКА STARTING SWITCH NUT STARTING SWITCH |
1 | discontinued |
| 8 | 74515 |
ЗАЩИТНОЕ ПРИСПОСОБЛЕНИЕ STARTING SWITCH PROTECTOR STARTING SWITCH |
1 | discontinued |
| 9 | 72535A4 |
КАБЕЛЬ В СБОРЕ BATTERY CABLE ASSEMBLY BATTERY |
1 |
