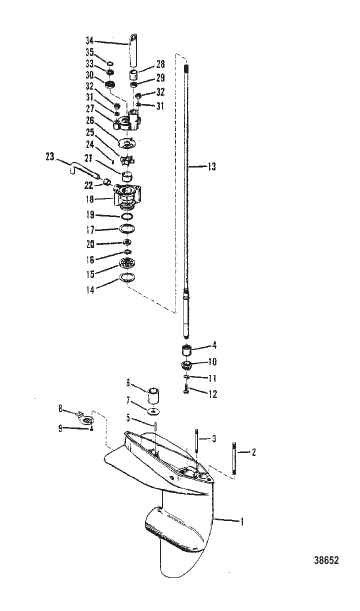

GEAR HOUSING (DRIVESHAFT)
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 7360A12 |
КАРТЕР РЕДУКТОРА В СБОРЕ (SHORT) [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below GEAR HOUSING ASSEMBLY (SHORT) [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below |
1 | discontinued |
| - | 7360A13 |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG) [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below GEAR HOUSING ASSEMBLY (LONG) [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below |
1 | discontinued |
| - | 7360A29 |
КАРТЕР РЕДУКТОРА В СБОРЕ (SHORT) [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up GEAR HOUSING ASSEMBLY (SHORT) [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | discontinued |
| - | 7360A30 |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG) [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up GEAR HOUSING ASSEMBLY (LONG) [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | discontinued |
| - | 89014A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| - | 77066A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Водяной насос SEAL KIT Water Pump |
1 | |
| - | 70941A3 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос (Use with 47-89981 Impeller) REPAIR KIT Water Pump (Use with 47-89981 Impeller) |
1 | |
| - | 92970A5 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос (Use with 47-89980 Impeller) REPAIR KIT Water Pump (Use with 47-89980 Impeller) |
1 | discontinued |
| 1 | 7360A11 |
КАРТЕР РЕДУКТОРА В СБОРЕ GEAR HOUSING ASSEMBLY |
1 | discontinued |
| 10 | 98696 |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | discontinued |
| 11 | 30377 |
ЛЕПЕСТКОВАЯ ШАЙБА PINION GEAR SCREW TAB WASHER PINION GEAR SCREW |
1 | discontinued |
| 12 | 30376 |
ВИНТ (№12-28 x 0.750) PINION GEAR TO DRIVE SHAFT SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT |
1 | discontinued |
| 13 | 75034 |
ВЕДУЩИЙ ВАЛ (SHORT) USE WITH 47-89981 IMPELLER [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below DRIVESHAFT (SHORT) USE WITH 47-89981 IMPELLER [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below |
1 | discontinued |
| 13 | 75033 |
ВЕДУЩИЙ ВАЛ (LONG) USE WITH 47-89981 IMPELLER [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below DRIVESHAFT (LONG) USE WITH 47-89981 IMPELLER [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below |
1 | discontinued |
| 13 | 95873A1 |
ВЕДУЩИЙ ВАЛ (SHORT) USE WITH 47-89980 IMPELLER [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up DRIVESHAFT (SHORT) USE WITH 47-89980 IMPELLER [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | discontinued |
| 13 | 95874A1 |
ВЕДУЩИЙ ВАЛ (LONG) USE WITH 47-89980 IMPELLER [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up DRIVESHAFT (LONG) USE WITH 47-89980 IMPELLER [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | discontinued |
| 14 | 30527A1 |
ПРОКЛАДКА В СБОРЕ BALL BEARING (.002-3-5-10) SHIM ASSEMBLY BALL BEARING (.002-3-5-10) |
AR | discontinued |
| 15 | 70944 |
ПОДШИПНИК Шарик DRIVE SHAFT BEARING Ball DRIVE SHAFT |
1 | |
| 16 | 30523 |
КОЛЬЦО Стопор BALL BEARING TO DRIVE SHAFT RING Retaining BALL BEARING TO DRIVE SHAFT |
1 | discontinued |
| 17 | 30527A1 |
ПРОКЛАДКА В СБОРЕ BALL BEARING (.002-2-5-10) SHIM ASSEMBLY BALL BEARING (.002-2-5-10) |
AR | discontinued |
| 18 | 70941A1 |
КОРПУС В СБОРЕ Водяной насос (USE WITH 47-89981 IMPELLER) HOUSING ASSEMBLY Water Pump (USE WITH 47-89981 IMPELLER) |
1 | superseded |
| 18 | 92970A1 |
КОРПУС В СБОРЕ Водяной насос (USE WITH 47-89980 IMPELLER) HOUSING ASSEMBLY Water Pump (USE WITH 47-89980 IMPELLER) |
1 | |
| 19 | 29439 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 2 | 58138 |
ШПИЛЬКА GEAR HOUSING (3-7/16") STUD GEAR HOUSING (3-7/16") |
1 | discontinued |
| 20 | 30900 |
УПЛОТНЕНИЕ Масло (USE WITH 47-89981 IMPELLER) SEAL Oil (USE WITH 47-89981 IMPELLER) |
1 | superseded |
| 20 | 96063 |
УПЛОТНЕНИЕ Масло (USE WITH 47-89980 IMPELLER) SEAL Oil (USE WITH 47-89980 IMPELLER) |
1 | superseded |
| 21 | 70977 |
ВСТАВКА INSERT |
1 | superseded |
| 22 | 33613 |
УПЛОТНЕНИЕ WATER INTAKE TUBE SEAL WATER INTAKE TUBE |
1 | |
| 23 | 34293 |
ТРУБА WATER INTAKE TUBE WATER INTAKE |
1 | discontinued |
| 24 | 56655 |
КЛЮЧ IMPELLER DRIVE KEY IMPELLER DRIVE |
1 | superseded |
| 25 | 89981 |
КРЫЛЬЧАТКА (MOLDED 47-89981 - .456 I.D.) IMPELLER (MOLDED 47-89981 - .456 I.D.) |
1 | |
| 25 | 89980 |
КРЫЛЬЧАТКА (MOLDED 47-89980 - .438 I.D.) IMPELLER (MOLDED 47-89980 - .438 I.D.) |
1 | |
| 26 | 46895 |
ЦИФЕРБЛАТ WATER PUMP FACE PLATE WATER PUMP |
1 | |
| 27 | 93224A1 |
КРЫШКА В СБОРЕ Водяной насос COVER ASSEMBLY Water Pump |
1 | |
| 28 | 36558 |
УПЛОТНЕНИЕ WATER PUMP COVER SEAL WATER PUMP COVER |
1 | |
| 29 | 86214 |
ПОДШИПНИК NYLON - WATER PUMP COVER BEARING NYLON - WATER PUMP COVER |
1 | superseded |
| 3 | 58136 |
ШПИЛЬКА WATER PUMP (2-3/4") STUD WATER PUMP (2-3/4") |
2 | discontinued |
| 30 | 30913 |
УПЛОТНЕНИЕ Масло WATER PUMP COVER SEAL Oil WATER PUMP COVER |
1 | |
| 31 | 20533 |
ШАЙБА WATER PUMP STUDS WASHER WATER PUMP STUDS |
2 | |
| 32 | 20361 |
ГАЙКА (0.250-28) WATER PUMP STUDS NUT (.250-28) WATER PUMP STUDS |
2 | superseded |
| 33 | 30526 |
КОЛЬЦО RUBBER RING RUBBER |
1 | |
| 34 | 31792 |
РУКАВ GUIDE - WATER INLET TUBE SLEEVE GUIDE - WATER INLET TUBE |
1 | superseded |
| 35 | 62704 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.362 x 0.103) DRIVE SHAFT [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up O-RING (.362 x .103) DRIVE SHAFT [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | |
| 4 | 22756 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 5 | 20032 |
ШТИФТ Штифт PIN Dowel |
1 | discontinued |
| 6 | 33613 |
УПЛОТНЕНИЕ RUBBER SEAL RUBBER |
1 | |
| 7 | 86215 |
ПОДШИПНИК NYLON BEARING NYLON |
1 | |
| 8 | 33425 |
ЭКРАН INTAKE SCREEN INTAKE |
1 | discontinued |
| 9 | 28642 |
ВИНТ (№2 x 0.25) INTAKE SCREEN SCREW (#2 x 0.25) INTAKE SCREEN |
1 |
