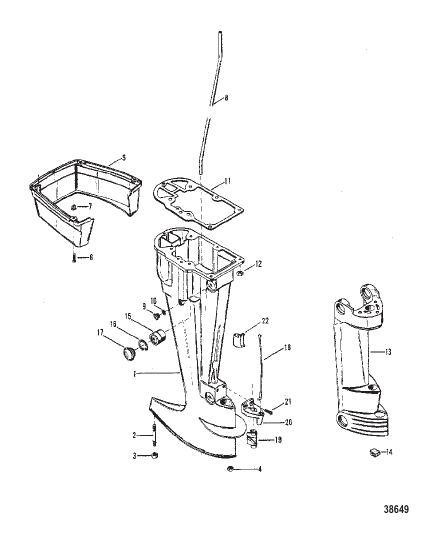

DRIVESHAFT HOUSING ASSEMBLY
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 89014A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 8451A1 |
КОРПУС В СБОРЕ Карданный вал (SHORT SHAFT) HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) |
1 | discontinued |
| 1 | 8453A1 |
КОРПУС В СБОРЕ Карданный вал (LONG SHAFT) HOUSING ASSEMBLY Driveshaft (LONG SHAFT) |
1 | discontinued |
| 10 | 20260 |
ШАЙБА SEALING - FLUSH SCREW WASHER SEALING - FLUSH SCREW |
1 | superseded |
| 11 | 39050 |
ПРОКЛАДКА GASKET |
1 | |
| 12 | 24652 |
ГАЙКА (0.250-28) NUT (.250-28) |
6 | discontinued |
| 13 | 8448A2 |
СЕДЛО В СБОРЕ SADDLE ASSEMBLY |
1 | discontinued |
| 14 | 64076 |
УПОР THRUST - SADDLE BUMPER THRUST - SADDLE |
1 | discontinued |
| 15 | 79896A1 |
КРЕПЛЕНИЕ LOWER AND UPPER (SHORT SHAFT) MOUNT LOWER AND UPPER (SHORT SHAFT) |
4 | discontinued |
| 15 | 79896A1 |
КРЕПЛЕНИЕ UPPER (LONG SHAFT) MOUNT UPPER (LONG SHAFT) |
2 | discontinued |
| 15 | 79895A1 |
КРЕПЛЕНИЕ LOWER (LONG SHAFT) MOUNT LOWER (LONG SHAFT) |
2 | discontinued |
| 16 | 26406 |
КОЛЬЦО RETAINING - UPPER AND LOWER MOUNT RING RETAINING - UPPER AND LOWER MOUNT |
4 | |
| 17 | 79907 |
КРЫШКА LOWER MOUNT COVER LOWER MOUNT |
2 | discontinued |
| 18 | 71057 |
СТЕРЖЕНЬ ТЯГИ REVERSE LOCK LINK ROD REVERSE LOCK |
1 | discontinued |
| 19 | 65216 |
КУЛАЧОК REVERSE LOCK CAM REVERSE LOCK |
1 | discontinued |
| 2 | 66373 |
ШПИЛЬКА STUD |
1 | discontinued |
| 20 | 72007 |
ФИКСАТОР REVERSE LOCK CAM RETAINER REVERSE LOCK CAM |
1 | discontinued |
| 21 | 65414 |
ВИНТ CAM RETAINER (3/4") SCREW CAM RETAINER (3/4") |
2 | discontinued |
| 22 | 93145 |
БЛОК DRIVE SHAFT (LONG SHAFT) BLOCK DRIVE SHAFT (LONG SHAFT) |
1 | discontinued |
| 3 | 35814 |
ГАЙКА (0.312-24), нержавеющая сталь NUT (.312-24) Stainless Steel |
1 | superseded |
| 4 | 34863 |
ГАЙКА (.375-24) NUT (.375-24) |
1 | superseded |
| 5 | 96515 |
КРЫШКА TRIM COVER TRIM |
1 | superseded |
| 6 | 69013 |
ВИНТ (№10-16 x 0.880) TRIM COVER SCREW (#10-16 x .880) TRIM COVER |
4 | |
| 7 | 92012 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО TRIM COVER SCREW GROMMET TRIM COVER SCREW |
4 | discontinued |
| 8 | 39061 |
ТРУБА WATER (SHORT SHAFT) TUBE WATER (SHORT SHAFT) |
1 | discontinued |
| 8 | 39062 |
ТРУБА WATER (LONG SHAFT) TUBE WATER (LONG SHAFT) |
1 | discontinued |
| 9 | 79953 |
ВИНТ (0.375-16 x 0.250) FLUSH - DRIVE SHAFT HOUSING SCREW (.375-16 x .250) FLUSH - DRIVE SHAFT HOUSING |
1 | superseded |
