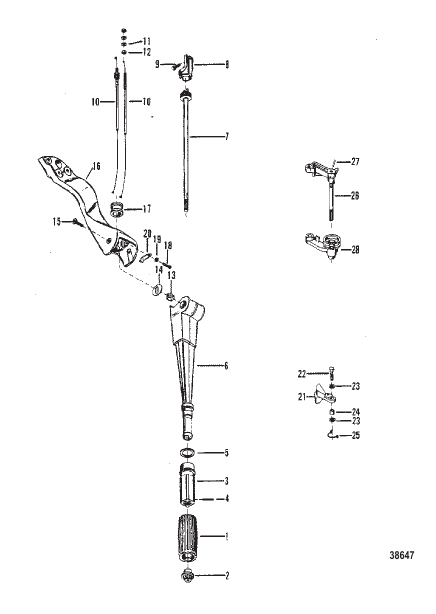

STEERING HANDLE AND THROTTLE LINKAGE
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 77194A2 |
РУКОЯТКА В СБОРЕ Рулевой механизм HANDLE ASSEMBLY Steering |
1 | discontinued |
| 1 | 60854 |
РУКОЯТКА HANDLE GRIP HANDLE |
1 | discontinued |
| 10 | 86210 |
КАБЕЛЬ THROTTLE CABLE THROTTLE |
2 | |
| 11 | 37998 |
ШАЙБА THROTTLE CABLE WASHER THROTTLE CABLE |
4 | |
| 12 | 21825 |
ГАЙКА (0.250-28) THROTTLE CABLE NUT (.250-28) THROTTLE CABLE |
4 | |
| 13 | 48003 |
ШАРНИР STEERING HANDLE TO BRACKET PIVOT STEERING HANDLE TO BRACKET |
2 | discontinued |
| 14 | 48002015 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (.015) SHIM (.015) |
AR | discontinued |
| 15 | 96138 |
ВИНТ (0.250-28 x 620) SCREW (.250-28 x .620) |
2 | discontinued |
| 16 | 96432 |
КРОНШТЕЙН STEERING ARM BRACKET STEERING ARM |
1 | superseded |
| 17 | 67272 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО STEERING ARM BRACKET GROMMET STEERING ARM BRACKET |
1 | discontinued |
| 18 | 62233 |
ВИНТ (№10-16 x 0.625) SCREW (#10-16 x .625) |
2 | discontinued |
| 19 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь DETENT SPRING WASHER (.192 x .375 x .0312) Stainless Steel DETENT SPRING |
4 | |
| 2 | 77237 |
ПРОБКА HANDLE CAP HANDLE |
1 | discontinued |
| 20 | 72847 |
ПРУЖИНА DETENT - STEERING HANDLE SPRING DETENT - STEERING HANDLE |
2 | discontinued |
| 21 | 86212 |
ТОЛКАТЕЛЬ OVER - SPEED LIMITER FOLLOWER OVER - SPEED LIMITER |
1 | discontinued |
| 22 | 20653 |
ВИНТ (0.250-28 x 1.00) SCREW (.250-28 x 1.00) |
1 | discontinued |
| 23 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь SPEED LIMITER FOLLOWER SCREW WASHER (.281 x .500 x .060) Stainless Steel SPEED LIMITER FOLLOWER SCREW |
2 | superseded |
| 24 | 63320 |
ВТУЛКА SPEED LIMITER FOLLOWER SCREW BUSHING SPEED LIMITER FOLLOWER SCREW |
1 | discontinued |
| 25 | 39042 |
ПРУЖИНА NEUTRAL SPEED LIMITER FOLLOWER SPRING NEUTRAL SPEED LIMITER FOLLOWER |
1 | discontinued |
| 26 | 66374A2 |
РЫЧАГ В СБОРЕ THROTTLE CONTROL LEVER ASSEMBLY THROTTLE CONTROL |
1 | discontinued |
| 27 | 76207 |
ШТИФТ Ролик THROTTLE CONTROL LEVER PIN Roll THROTTLE CONTROL LEVER |
1 | discontinued |
| 28 | 86070 |
ЗОЛОТНИК THROTTLE SPOOL THROTTLE |
1 | discontinued |
| 3 | 77238A1 |
РУКОЯТКА THROTTLE SHAFT HANDLE THROTTLE SHAFT |
1 | discontinued |
| 4 | 31656 |
ШТИФТ STEERING HANDLE PIN STEERING HANDLE |
1 | discontinued |
| 5 | 62252 |
ШАЙБА THROTTLE HANDLE TO STEERING ARM WASHER THROTTLE HANDLE TO STEERING ARM |
1 | discontinued |
| 6 | 77194 |
ARM STEERING HANDLE ARM STEERING HANDLE |
1 | discontinued |
| 7 | 97379 |
ВАЛ THROTTLE SHAFT THROTTLE |
1 | discontinued |
| 7 | 973791 |
ВАЛ Дроссельная заслонка (180 cc SailPower) SHAFT Throttle (180 cc SailPower) |
discontinued | |
| 8 | 77203 |
БЛОК CABLE GUIDE BLOCK CABLE GUIDE |
1 | discontinued |
| 9 | 69069 |
ВИНТ (0.250-28 x 0.750) BLOCK TO STEERING ARM SCREW (.250-28 x .750) BLOCK TO STEERING ARM |
1 | discontinued |
