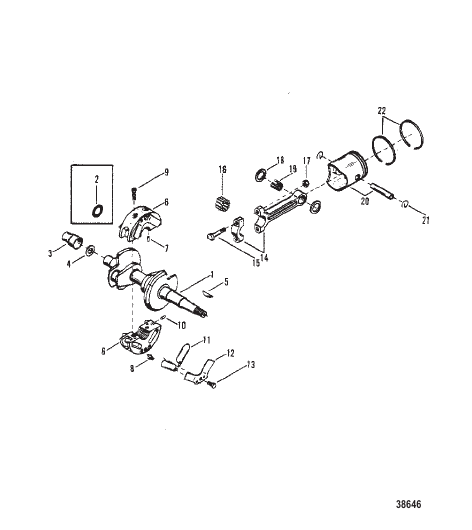

CRANKSHAFT, PISTONS AND CONNECTING RODS
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 75376A79 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (7.5) [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below POWERHEAD ASSEMBLY (7.5) [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below |
1 | discontinued |
| - | 87123A80 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (7.5) [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up POWERHEAD ASSEMBLY (7.5) [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | discontinued |
| - | 75380A79 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (9.8) [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below POWERHEAD ASSEMBLY (9.8) [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below |
1 | discontinued |
| - | 87181A80 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (9.8) [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up POWERHEAD ASSEMBLY (9.8) [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | discontinued |
| 1 | 5275 |
КОЛЕНЧАТЫЙ ВАЛ [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below CRANKSHAFT [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below |
1 | discontinued |
| 1 | 7271A2 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up CRANKSHAFT ASSEMBLY [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | discontinued |
| 10 | 20032 |
ШТИФТ Штифт MAIN BEARING TO BLOCK PIN Dowel MAIN BEARING TO BLOCK |
1 | discontinued |
| 11 | 31942A1 |
НАБОР ПЛАСТИНЧАТЫХ КЛАПАНОВ MATCHED - MAIN BEARING REED SET MATCHED - MAIN BEARING |
1 | discontinued |
| 12 | 20053 |
СТОП Пластинчатый клапан MAIN BEARING REED VALVES STOP Reed MAIN BEARING REED VALVES |
4 | discontinued |
| 13 | 27304 |
ВИНТ REED STOP MOUNTING SCREW REED STOP MOUNTING |
4 | discontinued |
| 14 | 7395A2 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ CONNECTING ROD ASSEMBLY |
2 | discontinued |
| 15 | 87374 |
ВИНТ (0.250-28 x 1.030) CONNECTING ROD SCREW (.250-28 x 1.030) CONNECTING ROD |
4 | discontinued |
| 16 | 26815 |
ПОДШИПНИК Игла CRANKPIN BEARING Needle CRANKPIN |
58 | discontinued |
| 17 | 20061 |
ГАЙКА CONNECTING ROD SCREW NUT CONNECTING ROD SCREW |
4 | discontinued |
| 18 | 65967 |
ШАЙБА NEEDLE BEARING RETAINING WASHER NEEDLE BEARING RETAINING |
4 | discontinued |
| 19 | 31505 |
ПОДШИПНИК Игла PISTON PIN BEARING Needle PISTON PIN |
40 | discontinued |
| 2 | 72793 |
УПЛОТНЕНИЕ CRANKSHAFT [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below SEAL CRANKSHAFT [USA-5306000/Aus-8060794/Bel-9227030/Can-7134412] & Below |
1 | discontinued |
| 20 | 7391A3 |
ПОРШЕНЬ В СБОРЕ (2 RING) PISTON ASSEMBLY (2 RING) |
2 | superseded |
| 21 | 21666 |
СТОПОРНОЕ КОЛЬЦО PISTON PIN LOCK RING PISTON PIN |
4 | discontinued |
| 22 | 21665A12 |
НАБОР КОЛЕЦ Поршень RING SET Piston |
1 | discontinued |
| 3 | 79952A1 |
СТАКАН В СБОРЕ [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up CARRIER ASSEMBLY [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | discontinued |
| 4 | 79960 |
ШАЙБА FELT [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up WASHER FELT [USA-5306001/Aus-8060795/Bel-9227031/Can-7134413] & Up |
1 | discontinued |
| 5 | 20094 |
КЛЮЧ Сегментная шпонка CRANKSHAFT KEY Woodruff CRANKSHAFT |
1 | |
| 6 | 8122A5 |
БЛОК ПОДШИПНИКА Главный (VALVE TYPE) BEARING ASSEMBLY Main (VALVE TYPE) |
1 | discontinued |
| 7 | 20032 |
ШТИФТ Штифт MAIN BEARING PIN Dowel MAIN BEARING |
2 | discontinued |
| 8 | 65855 |
ШТИФТ Штифт REED LOCATING PIN Dowel REED LOCATING |
8 | discontinued |
| 9 | 56781 |
ВИНТ MAIN BEARING CLAMPING SCREW MAIN BEARING CLAMPING |
2 | discontinued |
