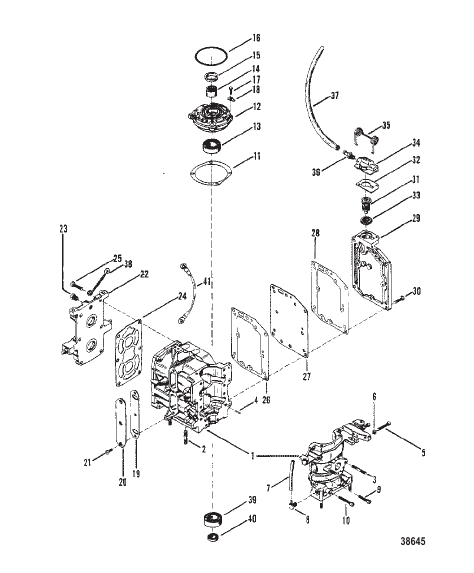

CYLINDER BLOCK AND CRANKCASE
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 7693A2 |
БЛОК ЦИЛИНДРА В СБОРЕ (MERC 7.5) CYLINDER BLOCK ASSEMBLY (MERC 7.5) |
1 | discontinued |
| 1 | 7694A2 |
БЛОК ЦИЛИНДРОВ В СБОРЕ (MERC 9.8) CYLINDER BLOCK ASSEMLBY (MERC 9.8) |
1 | discontinued |
| 10 | 73280 |
ВИНТ CRANKCASE TO CYLINDER BLOCK SCREW CRANKCASE TO CYLINDER BLOCK |
2 | discontinued |
| 11 | 31412A1 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
AR | discontinued |
| 12 | 6413A1 |
КОРПУС В СБОРЕ Подшипник UPPER HOUSING ASSEMBLY Bearing UPPER |
1 | discontinued |
| 13 | 72961 |
ПОДШИПНИК Шарик UPPER BEARING HOUSING BEARING Ball UPPER BEARING HOUSING |
1 | |
| 14 | 31410 |
ПОДШИПНИК Ролик UPPER BEARING HOUSING BEARING Roller UPPER BEARING HOUSING |
1 | discontinued |
| 15 | 66301 |
УПЛОТНЕНИЕ Масло UPPER BEARING HOUSING SEAL Oil UPPER BEARING HOUSING |
1 | |
| 16 | 20863 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО UPPER BEARING HOUSING O-RING UPPER BEARING HOUSING |
1 | |
| 17 | 76611 |
ВИНТ (0.216-24 x 0.500) UPPER BEARING HOUSING SCREW (.216-24 x .500) UPPER BEARING HOUSING |
4 | discontinued |
| 18 | 78102 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
4 | discontinued |
| 19 | 78032 |
ПРОКЛАДКА INTAKE COVER [USA-5524659/Aus-8063634/Bel-9246205/Can-7143037] & Below GASKET INTAKE COVER [USA-5524659/Aus-8063634/Bel-9246205/Can-7143037] & Below |
1 | superseded |
| 19 | 43336 |
ПРОКЛАДКА INTAKE COVER [USA-5524660/Aus-8063635/Bel-9246206/Can-7143038] & Up GASKET INTAKE COVER [USA-5524660/Aus-8063635/Bel-9246206/Can-7143038] & Up |
1 | discontinued |
| 2 | 72809 |
ШПИЛЬКА (0.250-20/0.250-28 x 1.620) BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING STUD (.250-20/.250-28 x 1.620) BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING |
6 | superseded |
| 20 | 78033 |
КРЫШКА INTAKE COVER INTAKE |
1 | discontinued |
| 21 | 26537 |
ВИНТ (№10-24 x 0.500) INTAKE COVER TO CYLINDER BLOCK SCREW (#10-24 x .500) INTAKE COVER TO CYLINDER BLOCK |
3 | discontinued |
| 22 | 7465A1 |
КРЫШКА В СБОРЕ CYLINDER BLOCK COVER ASSEMBLY CYLINDER BLOCK |
1 | discontinued |
| 23 | 32802 |
ПРОБКА Труба (0.125-27) CYLINDER COVER (THERMOSTAT ENGINES) PLUG Pipe (.125-27) CYLINDER COVER (THERMOSTAT ENGINES) |
1 | superseded |
| 23 | 99664 |
КОЛЕНЧАТЫЙ CYLINDER COVER (NON-THERMOSTAT ENGINES) ELBOW CYLINDER COVER (NON-THERMOSTAT ENGINES) |
1 | superseded |
| 24 | 41382 |
ПРОКЛАДКА CYLINDER BLOCK COVER GASKET CYLINDER BLOCK COVER |
1 | |
| 25 | 76630 |
ВИНТ (0.250-20 x 1.00) SCREW (.250-20 x 1.00) |
6 | superseded |
| 26 | 41383 |
ПРОКЛАДКА CYLINDER BLOCK TO BAFFLE PLATE GASKET CYLINDER BLOCK TO BAFFLE PLATE |
1 | |
| 27 | 85935 |
ПЛАСТИНА BAFFLE - EXHAUST MANIFOLD PLATE BAFFLE - EXHAUST MANIFOLD |
1 | |
| 28 | 41383 |
ПРОКЛАДКА BAFFLE PLATE (NON-THERMOSTAT ENGINES) GASKET BAFFLE PLATE (NON-THERMOSTAT ENGINES) |
1 | |
| 28 | 89014 |
ПРОКЛАДКА BAFFLE PLATE (THERMOSTAT ENGINES) GASKET BAFFLE PLATE (THERMOSTAT ENGINES) |
1 | |
| 29 | 74919 |
КРЫШКА EXHAUST MANIFOLD (NON-THERMOSTAT ENGINES) COVER EXHAUST MANIFOLD (NON-THERMOSTAT ENGINES) |
1 | superseded |
| 29 | 89013A1 |
КРЫШКА EXHAUST MANIFOLD (THERMOSTAT ENGINES) COVER EXHAUST MANIFOLD (THERMOSTAT ENGINES) |
1 | discontinued |
| 3 | 66357 |
ШПИЛЬКА (0.250-28 x 1.00) CARBURETOR MOUNTING STUD (.250-28 x 1.00) CARBURETOR MOUNTING |
2 | superseded |
| 30 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
8 | |
| 31 | 75692 |
ТЕРМОСТАТ (THERMOSTAT ENGINES) THERMOSTAT (THERMOSTAT ENGINES) |
1 | |
| 32 | 88346 |
ПРОКЛАДКА THERMOSTAT COVER (THERMOSTAT ENGINES) GASKET THERMOSTAT COVER (THERMOSTAT ENGINES) |
1 | |
| 33 | 62386 |
ПРОКЛАДКА THERMOSTAT (THERMOSTAT ENGINES) GASKET THERMOSTAT (THERMOSTAT ENGINES) |
1 | superseded |
| 34 | 85920 |
КРЫШКА THERMOSTAT (THERMOSTAT ENGINES) COVER THERMOSTAT (THERMOSTAT ENGINES) |
1 | discontinued |
| 35 | 88464 |
ПРУЖИНА RETAINER - THERMOSTAT COVER (THERMOSTAT ENGINES) SPRING RETAINER - THERMOSTAT COVER (THERMOSTAT ENGINES) |
1 | discontinued |
| 36 | 29111 |
СОЕДИНИТЕЛЬ THERMOSTAT COVER (THERMOSTAT ENGINES) CONNECTOR THERMOSTAT COVER (THERMOSTAT ENGINES) |
1 | superseded |
| 37 | 34395A1 |
РУКАВ TELL-TALE HOSE TELL-TALE |
1 | superseded |
| 38 | 46933A1 |
ПРОВОД ЗАЗЕМЛЕНИЯ GROUND WIRE |
1 | discontinued |
| 39 | 72961 |
ПОДШИПНИК Шарик (LOWER) BEARING Ball (LOWER) |
1 | |
| 4 | 85500 |
ШТИФТ Штифт (0.187 x 0.530) CRANKCASE TO CYLINDER BLOCK PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK |
2 | superseded |
| 40 | 66301 |
УПЛОТНЕНИЕ Масло CRANKCASE (LOWER) SEAL Oil CRANKCASE (LOWER) |
1 | |
| 41 | 63415A6 |
ПРОВОД В СБОРЕ BLACK (ELECTRIC) WIRE ASSEMBLY BLACK (ELECTRIC) |
1 | discontinued |
| 5 | 54467 |
ВИНТ ADJ - THROTTLE CONTROL (1-1/4") SCREW ADJ - THROTTLE CONTROL (1-1/4") |
2 | superseded |
| 6 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь THROTTLE CONTROL ADJUSTING SCREW NUT (#10-32) Stainless Steel THROTTLE CONTROL ADJUSTING SCREW |
2 | |
| 7 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) BLEED DRAIN (4") TUBING (20.00 Feet Bulk) BLEED DRAIN (4") |
1 | superseded |
| 8 | 42863 |
ОБРАТНЫЙ КЛАПАН BLEED - CRANKCASE (BOTTOM) CHECK VALVE BLEED - CRANKCASE (BOTTOM) |
1 | discontinued |
| 9 | 76621 |
ВИНТ CRANKCASE TO CYLINDER BLOCK SCREW CRANKCASE TO CYLINDER BLOCK |
8 | discontinued |
