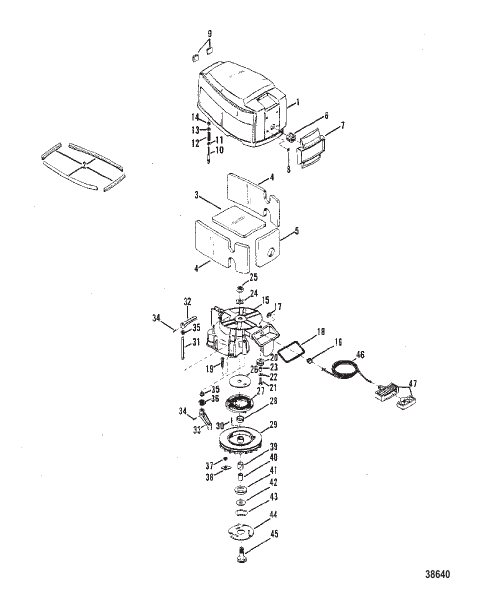

TOP COWL AND STARTER ASSEMBLY
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 7264A10 |
ВЕРХНИЙ КОЖУХ В СБОРЕ TOP COWL ASSEMBLY |
1 | discontinued |
| 10 | 72856 |
ШТИФТ TOP COWL CATCH PIN TOP COWL CATCH |
1 | discontinued |
| 11 | 98500 |
ШАЙБА TOP COWL CATCH (LOWER) WASHER TOP COWL CATCH (LOWER) |
1 | discontinued |
| 12 | 79351 |
ПРУЖИНА COMPRESSION -- COWL CATCH SPRING COMPRESSION -- COWL CATCH |
1 | discontinued |
| 13 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь TOP COWL CATCH (UPPER) WASHER (.265 x .750 x .048) Stainless Steel TOP COWL CATCH (UPPER) |
1 | |
| 14 | 20184 |
ГАЙКА (1/4-28X7/32) COWL CATCH TO TOP COWL NUT (1/4-28X7/32) COWL CATCH TO TOP COWL |
1 | superseded |
| 15 | 91871A1 |
КОРПУС В СБОРЕ Стартер HOUSING ASSEMBLY Starter |
1 | discontinued |
| 16 | 77859A1 |
НАПРАВЛЯЮЩАЯ ТРОСА (ALUMINUM) ROPE GUIDE (ALUMINUM) |
1 | discontinued |
| 16 | 58657 |
НАПРАВЛЯЮЩАЯ ТРОСА (PLASTIC) ROPE GUIDE (PLASTIC) |
1 | discontinued |
| 17 | 77860 |
КОЛЬЦО RETAINING - ROPE GUIDE (ALUMINUM) RING RETAINING - ROPE GUIDE (ALUMINUM) |
1 | discontinued |
| 17 | 72168 |
КОЛЬЦО RETAINING - ROPE GUIDE (PLASTIC) RING RETAINING - ROPE GUIDE (PLASTIC) |
1 | discontinued |
| 18 | 654991 |
УПЛОТНЕНИЕ STARTER HOUSING TO TOP COWL SEAL STARTER HOUSING TO TOP COWL |
1 | discontinued |
| 19 | 72862 |
ВИНТ (0.250-28 x 1.00) STARTER HOUSING TO CRANKCASE SCREW (.250-28 x 1.00) STARTER HOUSING TO CRANKCASE |
discontinued | |
| 2 | 654893 |
УПЛОТНЕНИЕ TOP COWL (16-1/2") SEAL TOP COWL (16-1/2") |
5 | discontinued |
| 20 | 93695 |
ШКИВ STARTER CABLE PULLEY STARTER CABLE |
1 | discontinued |
| 21 | 28789 |
ВИНТ (0.190-24 x 750) CABLE PULLERY SCREW (.190-24 x .750) CABLE PULLERY |
1 | discontinued |
| 22 | 22887 |
ШАЙБА CABLE PULLEY SCREW WASHER CABLE PULLEY SCREW |
1 | discontinued |
| 23 | 30977 |
ПРОСТАВКА CABLE PULLEY SPACER CABLE PULLEY |
1 | superseded |
| 24 | 20165 |
ЛЕПЕСТКОВАЯ ШАЙБА SHEAVE SHAFT NUT TAB WASHER SHEAVE SHAFT NUT |
1 | discontinued |
| 25 | 20166 |
ГАЙКА SHEAVE SHAFT (LEFT HAND THREAD) NUT SHEAVE SHAFT (LEFT HAND THREAD) |
1 | discontinued |
| 26 | 20155 |
ФИКСАТОР STARTER SPRING RETAINER STARTER SPRING |
1 | discontinued |
| 27 | 29340A1 |
ПРУЖИНА STARTER REWIND SPRING STARTER REWIND |
1 | superseded |
| 28 | 28912 |
ВТУЛКА STARTER SPRING GUIDE BUSHING STARTER SPRING GUIDE |
1 | discontinued |
| 29 | 93696A2 |
РОЛИК В СБОРЕ Стартер SHEAVE ASSEMBLY Starter |
1 | discontinued |
| 3 | 66942 |
ПОКРЫТИЕ SOUND - TOP EARLY STYLE ENGINE BLANKET SOUND - TOP EARLY STYLE ENGINE |
1 | discontinued |
| 30 | 22896 |
ШТИФТ RETAINER - STARTER CABLE PIN RETAINER - STARTER CABLE |
1 | discontinued |
| 31 | 74359 |
ВАЛ INTERLOCK SHAFT INTERLOCK |
1 | discontinued |
| 32 | 74353 |
РЫЧАГ LOCK LEVER LOCK |
1 | discontinued |
| 33 | 74351 |
РЫЧАГ FOLLOWER LEVER FOLLOWER |
1 | discontinued |
| 34 | 38489 |
ШТИФТ Ролик INTERLOCK SHAFT PIN Roll INTERLOCK SHAFT |
2 | |
| 35 | 26856 |
ВТУЛКА NYLON - INTERLOCK SHAFT BUSHING NYLON - INTERLOCK SHAFT |
2 | |
| 36 | 74347 |
ПРУЖИНА TORSION - INTERLOCK SHAFT SPRING TORSION - INTERLOCK SHAFT |
1 | discontinued |
| 37 | 36206 |
ВОЛНИСТАЯ ШАЙБА STARTER PAWL WAVE WASHER STARTER PAWL |
3 | discontinued |
| 38 | 30596 |
СТОПОР STARTER PAWL STARTER |
3 | discontinued |
| 39 | 28919 |
ВТУЛКА NYLON - SHEAVE SHAFT SPACER BUSHING NYLON - SHEAVE SHAFT SPACER |
1 | discontinued |
| 4 | 85544 |
ПОКРЫТИЕ SOUND - SIDE EARLY STYLE ENGINE BLANKET SOUND - SIDE EARLY STYLE ENGINE |
2 | discontinued |
| 40 | 61005 |
ПРОСТАВКА SHEAVE SHAFT SPACER SHEAVE SHAFT |
1 | discontinued |
| 41 | 26179 |
ФИКСАТОР SHEAVE SHAFT TO STARTER SHEAVE RETAINER SHEAVE SHAFT TO STARTER SHEAVE |
1 | discontinued |
| 42 | 35559 |
ШАЙБА SHEAVE SHAFT RETAINER WASHER SHEAVE SHAFT RETAINER |
1 | |
| 43 | 20160 |
ВОЛНИСТАЯ ШАЙБА RETAINER TENSION WAVE WASHER RETAINER TENSION |
1 | |
| 44 | 30595 |
ПЛАСТИНА RETAINER - STARTER PAWL PLATE RETAINER - STARTER PAWL |
1 | discontinued |
| 45 | 35558 |
ВАЛ Шкив SHAFT Sheave |
1 | discontinued |
| 46 | 28985A2 |
КАБЕЛЬ В СБОРЕ Стартер CABLE ASSEMBLY Starter |
1 | superseded |
| 47 | 79470A1 |
КОМПЛЕКТ ФИКСАТОРОВ Трос RETAINER KIT Rope |
1 | |
| 5 | 69522 |
ПОКРЫТИЕ SOUND - FRONT EARLY STYLE ENGINE BLANKET SOUND - FRONT EARLY STYLE ENGINE |
1 | discontinued |
| 6 | 39086 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО COWL LATCH - TOP COWL GROMMET COWL LATCH - TOP COWL |
1 | discontinued |
| 7 | 71502 |
КРЫШКА FRONT COVER FRONT |
2 | discontinued |
| 8 | 65517 |
ГАЙКА SPEED - FRONT COVER TO TOP COWL NUT SPEED - FRONT COVER TO TOP COWL |
4 | discontinued |
| 9 | 69346 |
УПОР COWL - REAR BUMPER COWL - REAR |
2 | discontinued |
