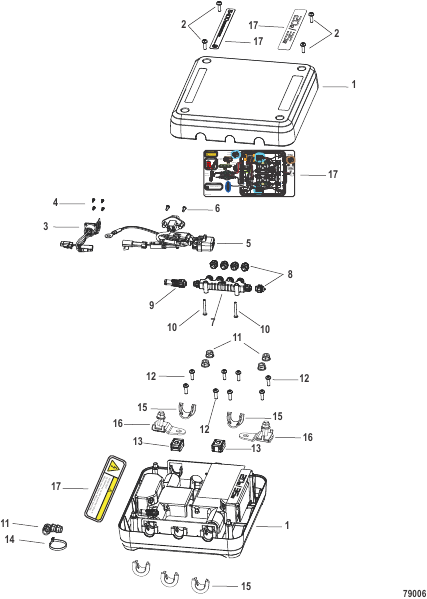

Power Center Components 5400 Wh, 20e/35e Models
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0223940 |
CORE KIT 5400 Wh, Single Battery CORE KIT 5400 Wh, Single Battery |
1 | |
| - | 8M0223941 |
CORE KIT 5400 Wh, Dual, Triple, Quadruple Battery CORE KIT 5400 Wh, Dual, Triple, Quadruple Battery |
1 | |
| 1 | 8M0219904 |
POWER CENTER 5400 Wh POWER CENTER 5400 Wh |
1 | |
| 10 | 66687 |
ВИНТ (№10-32 x 1.50) SCREW (#10-32 x 1.50) |
2 | |
| 11 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием NUT (M10) Brass/Nickel Plated |
8 | |
| 12 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
8 | |
| 13 | 8M0224242 |
FUSE ZCase, M10 70 amp FUSE ZCase, M10 70 amp |
2 | |
| 14 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 15 | 8M0230987 |
BUSHING Bracket BUSHING Bracket |
5 | |
| 16 | 8M0230990 |
HOLDER Fuse Z Case HOLDER Fuse Z Case |
2 | |
| 17 | 8M0230988 |
DECAL SET Power Center, 5400 Wh DECAL SET Power Center, 5400 Wh |
1 | |
| 2 | 8M0080651 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | |
| 3 | 8M0219927 |
HARNESS ASSEMBLY Charger HARNESS ASSEMBLY Charger |
1 | |
| 4 | 8M0221252 |
SCREW M3 x 10 FLT HD SCREW M3 x 10 FLT HD |
4 | |
| 5 | 8M0221253 |
HARNESS Fuse HARNESS Fuse |
1 | |
| 6 | 95700 |
ВИНТ (№10-16 x 0.50) SCREW (#10-16 x .50) |
2 | |
| 7 | 8M0210401 |
T-JUNCTION BOX T-JUNCTION BOX |
1 | |
| 8 | 8M0210412 |
WEATHERCAP Female WEATHERCAP Female |
5 | |
| 8 | 8M0224239 |
CAP Weather, X-Lok CAP Weather, X-Lok |
AR | |
| 9 | 8M0210400 |
TERMINATOR 6 POS XLOK CAP TERMINATOR 6 POS XLOK CAP |
1 |
