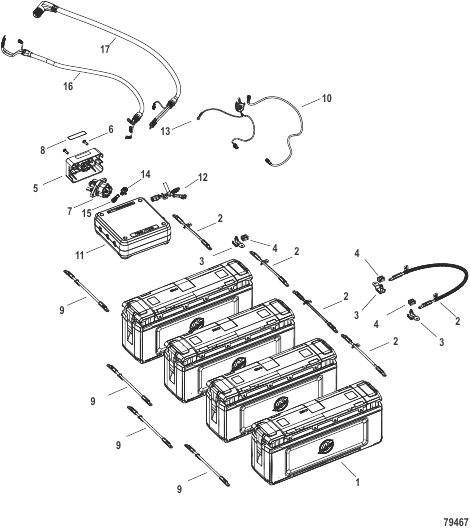

Battery and Power Components Multi 5400 Wh Battery, 20e/35e Models
Parts (53)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0223941 |
CORE KIT 5400 Wh, Dual, Triple, Quadruple Battery CORE KIT 5400 Wh, Dual, Triple, Quadruple Battery |
1 | |
| - | 8M6012728 |
BATTERY CHARGER 520W for 5400 Wh BATTERY CHARGER 520W for 5400 Wh |
AR | |
| - | 8M6013542 |
BATTERY CHARGER 1050W for 5400 Wh BATTERY CHARGER 1050W for 5400 Wh |
AR | |
| - | 8M0221527 |
PLUG ADAPTER US/AU 520W PLUG ADAPTER US/AU 520W |
1 | |
| 1 | 8M6011591 |
BATTERY 5400 Wh BATTERY 5400 Wh |
AR | |
| 10 | 8M0210404 |
HARNESS Signal Extension .5M Battery CAN HARNESS Signal Extension .5M Battery CAN |
AR | |
| 10 | 8M0210405 |
HARNESS Signal Extension 1M Battery CAN HARNESS Signal Extension 1M Battery CAN |
AR | |
| 10 | 8M0210406 |
HARNESS Signal Extension 2M Battery CAN HARNESS Signal Extension 2M Battery CAN |
AR | |
| 10 | 8M0210407 |
HARNESS Signal Extension 3M Battery CAN HARNESS Signal Extension 3M Battery CAN |
AR | |
| 10 | 8M0210408 |
HARNESS Signal Extension 4M Battery CAN HARNESS Signal Extension 4M Battery CAN |
AR | |
| 10 | 8M0210409 |
HARNESS Signal Extension 5M Battery CAN HARNESS Signal Extension 5M Battery CAN |
AR | |
| 11 | 8M0219904 |
POWER CENTER 5400 Wh POWER CENTER 5400 Wh |
AR | |
| 12 | 8M0224537 |
HARNESS Breakout 6 pin to 2 pin HARNESS Breakout 6 pin to 2 pin |
AR | |
| 13 | 8M0218481 |
HARNESS Extension 1M System Box to Switch Panel/Single Wire Fuse Harness HARNESS Extension 1M System Box to Switch Panel/Single Wire Fuse Harness |
AR | |
| 13 | 8M0218482 |
HARNESS Extension 2M System Box to Switch Panel/Single Wire Fuse Harness HARNESS Extension 2M System Box to Switch Panel/Single Wire Fuse Harness |
AR | |
| 13 | 8M0218483 |
HARNESS Extension 3M System Box to Switch Panel/Single Wire Fuse Harness HARNESS Extension 3M System Box to Switch Panel/Single Wire Fuse Harness |
AR | |
| 13 | 8M0218484 |
HARNESS Extension 4M System Box to Switch Panel/Single Wire Fuse Harness HARNESS Extension 4M System Box to Switch Panel/Single Wire Fuse Harness |
AR | |
| 14 | 8M0210361 |
ADAPTER-TEE ADAPTER-TEE |
AR | |
| 15 | 8M0224239 |
CAP Weather, X-Lok CAP Weather, X-Lok |
AR | |
| 16 | 8M0210393 |
HARNESS Jacketed, RC Post to Power Center, 1M Remote Control Models HARNESS Jacketed, RC Post to Power Center, 1M Remote Control Models |
1 | |
| 16 | 8M0210394 |
HARNESS Jacketed, RC Post to Power Center, 1.5M Remote Control Models HARNESS Jacketed, RC Post to Power Center, 1.5M Remote Control Models |
1 | |
| 16 | 8M0210395 |
HARNESS Jacketed, RC Post to Power Center, 2M Remote Control Models HARNESS Jacketed, RC Post to Power Center, 2M Remote Control Models |
1 | |
| 16 | 8M0210396 |
HARNESS Jacketed, RC Post to Power Center, 2.5M Remote Control Models HARNESS Jacketed, RC Post to Power Center, 2.5M Remote Control Models |
1 | |
| 16 | 8M0210397 |
HARNESS Jacketed, RC Post to Power Center, 3M Remote Control Models HARNESS Jacketed, RC Post to Power Center, 3M Remote Control Models |
1 | |
| 16 | 8M0210398 |
HARNESS Jacketed, RC Post to Power Center, 4M Remote Control Models HARNESS Jacketed, RC Post to Power Center, 4M Remote Control Models |
1 | |
| 17 | 8M0210362 |
HARNESS Jacketed, Cowl to Power Center, 1M Tiller Handle Models HARNESS Jacketed, Cowl to Power Center, 1M Tiller Handle Models |
1 | |
| 17 | 8M0210363 |
HARNESS Jacketed, Cowl to Power Center, 1.5M Tiller Handle Models HARNESS Jacketed, Cowl to Power Center, 1.5M Tiller Handle Models |
1 | |
| 17 | 8M0210364 |
HARNESS Jacketed, Cowl to Power Center, 2M Tiller Handle Models HARNESS Jacketed, Cowl to Power Center, 2M Tiller Handle Models |
1 | |
| 17 | 8M0210365 |
HARNESS Jacketed, Cowl to Power Center, 2.5M Tiller Handle Models HARNESS Jacketed, Cowl to Power Center, 2.5M Tiller Handle Models |
1 | |
| 17 | 8M0210366 |
HARNESS Jacketed, Cowl to Power Center, 3M Tiller Handle Models HARNESS Jacketed, Cowl to Power Center, 3M Tiller Handle Models |
1 | |
| 17 | 8M0210367 |
HARNESS Jacketed, Cowl to Power Center, 4M Tiller Handle Models HARNESS Jacketed, Cowl to Power Center, 4M Tiller Handle Models |
1 | |
| 2 | 8M0223176 |
CABLE, POSITIVE 2 AWG, 10 Inches (.25m) Battery to: Battery/Power Center/Junction Housing CABLE, POSITIVE 2 AWG, 10 Inches (.25m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 2 | 8M0223177 |
CABLE, POSITIVE 2 AWG, 20 Inches (.5m) Battery to: Battery/Power Center/Junction Housing CABLE, POSITIVE 2 AWG, 20 Inches (.5m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 2 | 8M0223178 |
CABLE, POSITIVE 2 AWG, 30 Inches (.75m) Battery to: Battery/Power Center/Junction Housing CABLE, POSITIVE 2 AWG, 30 Inches (.75m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 2 | 8M0223179 |
CABLE, POSITIVE 2 AWG, 50 Inches (1.25m) Battery to: Battery/Power Center/Junction Housing CABLE, POSITIVE 2 AWG, 50 Inches (1.25m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 2 | 8M0223180 |
CABLE, POSITIVE 2 AWG, 70 Inches (1.75m) Battery to: Battery/Power Center/Junction Housing CABLE, POSITIVE 2 AWG, 70 Inches (1.75m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 2 | 8M0223181 |
CABLE, POSITIVE 2 AWG, 118 Inches (3m) Battery to: Battery/Power Center/Junction Housing CABLE, POSITIVE 2 AWG, 118 Inches (3m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 2 | 8M0223182 |
CABLE, POSITIVE 2 AWG, 158 Inches (4m) Battery to: Battery/Power Center/Junction Housing CABLE, POSITIVE 2 AWG, 158 Inches (4m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 2 | 8M0223183 |
CABLE, POSITIVE 2 AWG, 196 Inches (5m) Battery to: Battery/Power Center/Junction Housing CABLE, POSITIVE 2 AWG, 196 Inches (5m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 3 | 8M0224240 |
HOLDER ZCase Fuse Battery HOLDER ZCase Fuse Battery |
AR | |
| 4 | 8M0219929 |
FUSE ZCase, M10, 150amp Battery to: Battery/Outboard/Power Center FUSE ZCase, M10, 150amp Battery to: Battery/Outboard/Power Center |
AR | |
| 5 | 8M0227049 |
SWITCH MOUNTING HOUSING 200A SWITCH MOUNTING HOUSING 200A |
1 | |
| 6 | 8M0199924 |
SCREW M8 x 25 TRUSS HEAD SCREW M8 x 25 TRUSS HEAD |
2 | |
| 7 | 8M0219906 |
SWITCH Battery, 200A SWITCH Battery, 200A |
1 | |
| 8 | 8M0230988 |
DECAL SET Power Center, 5400 Wh Decal Set Includes Caution Decal DECAL SET Power Center, 5400 Wh Decal Set Includes Caution Decal |
1 | |
| 9 | 8M0223184 |
CABLE, NEGATIVE 2 AWG, 10 Inches (.25m) Battery to: Battery/Power Center/Junction Housing CABLE, NEGATIVE 2 AWG, 10 Inches (.25m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 9 | 8M0223185 |
CABLE, NEGATIVE 2 AWG, 20 Inches (.5m) Battery to: Battery/Power Center/Junction Housing CABLE, NEGATIVE 2 AWG, 20 Inches (.5m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 9 | 8M0223186 |
CABLE, NEGATIVE 2 AWG, 30 Inches (.75m) Battery to: Battery/Power Center/Junction Housing CABLE, NEGATIVE 2 AWG, 30 Inches (.75m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 9 | 8M0223187 |
CABLE, NEGATIVE 2 AWG, 50 Inches (1.25m) Battery to: Battery/Power Center/Junction Housing CABLE, NEGATIVE 2 AWG, 50 Inches (1.25m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 9 | 8M0223188 |
CABLE, NEGATIVE 2 AWG, 70 Inches (1.75m) Battery to: Battery/Power Center/Junction Housing CABLE, NEGATIVE 2 AWG, 70 Inches (1.75m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 9 | 8M0223189 |
CABLE, NEGATIVE 2 AWG, 118 Inches (3m) Battery to: Battery/Power Center/Junction Housing CABLE, NEGATIVE 2 AWG, 118 Inches (3m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 9 | 8M0223190 |
CABLE, NEGATIVE 2 AWG, 158 Inches (4m) Battery to: Battery/Power Center/Junction Housing CABLE, NEGATIVE 2 AWG, 158 Inches (4m) Battery to: Battery/Power Center/Junction Housing |
AR | |
| 9 | 8M0223191 |
CABLE, NEGATIVE 2 AWG, 196 Inches (5m) Battery to: Battery/Power Center/Junction Housing CABLE, NEGATIVE 2 AWG, 196 Inches (5m) Battery to: Battery/Power Center/Junction Housing |
AR |
