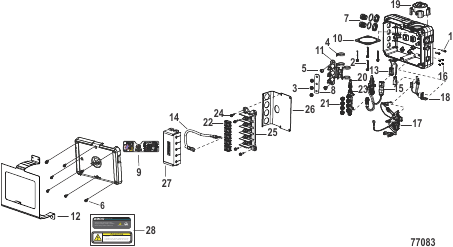

Power Center Components 2300 Wh
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0204291 |
POWER CENTER 2300 Wh POWER CENTER 2300 Wh |
1 | |
| - | 8M0224239 |
CAP Weather, X-Lok CAP Weather, X-Lok |
1 | |
| 1 | 69570 |
ВИНТ (№10-16 x 0.750) SCREW (#10-16 x .750) |
2 | |
| 10 | 8M0221248 |
SEAL Switch SEAL Switch |
1 | |
| 11 | 8M0221249 |
STUD Ground STUD Ground |
1 | |
| 12 | 8M0221250 |
BRACKET Mounting, Switchbox BRACKET Mounting, Switchbox |
1 | |
| 13 | 8M0215405 |
HARNESS KIT Mate Detect HARNESS KIT Mate Detect |
1 | |
| 14 | 8M0221251 |
CABLE Power, 14 IN CABLE Power, 14 IN |
1 | |
| 15 | 8M0210402 |
HARNESS T Adapt HARNESS T Adapt |
1 | |
| 16 | 8M0221252 |
SCREW M3 x 10 FLT HD SCREW M3 x 10 FLT HD |
4 | |
| 17 | 8M0221253 |
HARNESS Fuse HARNESS Fuse |
1 | |
| 18 | 8M0219927 |
HARNESS ASSEMBLY Charger HARNESS ASSEMBLY Charger |
1 | |
| 19 | 8M0219907 |
SWITCH Battery SWITCH Battery |
1 | |
| 2 | 88552550 |
ВИНТ (M6 x 50 мм), нержавеющая сталь SCREW (M6 x 50 MM) Stainless Steel |
4 | |
| 20 | 8M0210400 |
TERMINATOR 6 POS XLOK CAP TERMINATOR 6 POS XLOK CAP |
1 | |
| 21 | 8M0210412 |
WEATHERCAP Female WEATHERCAP Female |
AR | |
| 21 | 8M0210413 |
WEATHERCAP Male WEATHERCAP Male |
AR | |
| 22 | 8M0219929 |
FUSE ZCase, M10, 150amp FUSE ZCase, M10, 150amp |
5 | |
| 23 | 8M0210401 |
T-JUNCTION BOX T-JUNCTION BOX |
1 | |
| 24 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | |
| 25 | 8M0221255 |
HOLDER Fuse HOLDER Fuse |
1 | |
| 26 | 8M0221256 |
BRACKET Battery Cable BRACKET Battery Cable |
1 | |
| 27 | 8M0221257 |
COVER Fuse Holder COVER Fuse Holder |
1 | |
| 28 | 8M0221939 |
DECAL SET Power Center, 2300 Wh DECAL SET Power Center, 2300 Wh |
1 | |
| 3 | 826365 |
ГАЙКА (M8) NUT (M8) |
3 | |
| 4 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
4 | |
| 5 | 8M0144417 |
ВИНТ SCREW (M6 x 16) |
2 | |
| 6 | 8M0080651 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
7 | |
| 7 | 8M0210415 |
PLUG KIT Plug, Gasket, Nut PLUG KIT Plug, Gasket, Nut |
AR | |
| 8 | 8M0221246 |
BUS BAR M8 HOLES BUS BAR M8 HOLES |
1 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО DECAL - ELECTRIC SCHEMATIC 2300 Wh NOT SOLD SEPARATE DECAL - ELECTRIC SCHEMATIC 2300 Wh |
1 |
