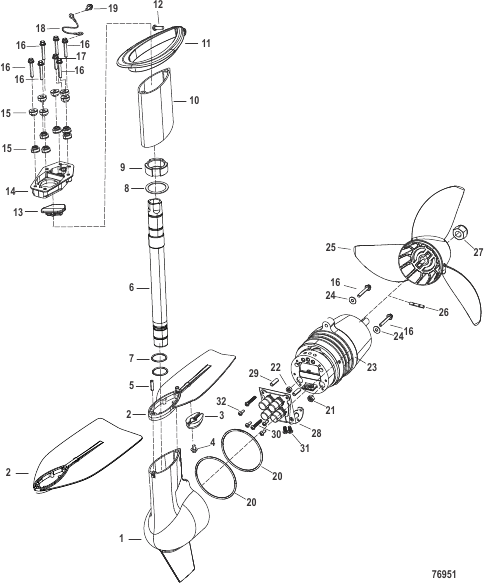

Motor Lower Unit
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0220195 |
MOTOR LOWER UNIT Complete, Short 20e MOTOR LOWER UNIT Complete, Short 20e |
1 | |
| - | 8M0220196 |
MOTOR LOWER UNIT Complete, Long 20e MOTOR LOWER UNIT Complete, Long 20e |
1 | |
| - | 8M0220197 |
MOTOR LOWER UNIT Complete, XLong 20e MOTOR LOWER UNIT Complete, XLong 20e |
1 | |
| - | 8M0220199 |
MOTOR LOWER UNIT Complete, Short 35e MOTOR LOWER UNIT Complete, Short 35e |
1 | |
| - | 8M0220200 |
MOTOR LOWER UNIT Complete, Long 35e MOTOR LOWER UNIT Complete, Long 35e |
1 | |
| - | 8M0220207 |
MOTOR LOWER UNIT Complete, XLong 35e MOTOR LOWER UNIT Complete, XLong 35e |
1 | |
| 1 | 8M0204409 |
LEG Motor Lower Unit LEG Motor Lower Unit |
1 | |
| 10 | 8M0204416 |
SPACER Short SPACER Short |
1 | |
| 10 | 8M0204421 |
SPACER Long SPACER Long |
1 | |
| 10 | 8M0204423 |
SPACER Xlong SPACER Xlong |
1 | |
| 11 | 8M0220729 |
SPLASH GUARD SPLASH GUARD |
1 | |
| 12 | 8M0063490 |
ВИНТ (M4 x 0.7 x 16 MM) SCREW (M4 X .7 X 16 MM) |
1 | |
| 13 | 8M0220732 |
GROMMET Adapter Plate GROMMET Adapter Plate |
1 | |
| 14 | 8M0204408 |
ADAPTER PLATE ASSEMBLY ADAPTER PLATE ASSEMBLY |
1 | |
| 15 | 8M0219672 |
ISOLATOR ASSEMBLY ISOLATOR ASSEMBLY |
12 | |
| 16 | 8M0103809 |
ВИНТ (M6 x 40 мм), нержавеющая сталь SCREW (M6 x 40 mm) Stainless Steel |
8 | |
| 17 | 8M0103808 |
ВИНТ (M6 x 30 ММ), нержавеющая сталь SCREW (M6 x 30 mm) Stainless Steel |
1 | |
| 18 | 8M0214907 |
CABLE ASSEMBLY CABLE ASSEMBLY |
1 | |
| 19 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 2 | 8M0204414 |
PLATE Anti-Ventilation 20e PLATE Anti-Ventilation 20e |
1 | |
| 2 | 8M0230430 |
PLATE Anti Ventilation 35e PLATE Anti Ventilation 35e |
1 | |
| 20 | 8M0204413 |
ORING ID 100.3 x 3.53 ORING ID 100.3 x 3.53 |
2 | |
| 21 | 8M0204514 |
NUT .312-18 HEX Bronze NUT .312-18 HEX Bronze |
1 | |
| 22 | 8M0204412 |
NUT .250-20, HEX, BRONZE NUT .250-20, HEX, BRONZE |
1 | |
| 23 | 8M0204512 |
MOTOR LOWER UNIT 20e MOTOR LOWER UNIT 20e |
1 | |
| 23 | 8M0204513 |
MOTOR LOWER UNIT 35e MOTOR LOWER UNIT 35e |
1 | |
| 24 | 8M0214930 |
WASHER 6.60 x 17.0 x 1.5 WASHER 6.60 x 17.0 x 1.5 |
2 | |
| 25 | 8M0199620 |
PROPELLER 3 Blade, 7 Pitch Standard PROPELLER 3 Blade, 7 Pitch Standard |
1 | |
| 25 | 8M0199621 |
PROPELLER 3 Blade, 9 Pitch Optional PROPELLER 3 Blade, 9 Pitch Optional |
AR | |
| 25 | 8M0199622 |
PROPELLER 3 Blade, 11 Pitch Optional PROPELLER 3 Blade, 11 Pitch Optional |
AR | |
| 26 | 8M0215660 |
PIN Shear 6 x 36 PIN Shear 6 x 36 |
1 | |
| 27 | 896602 |
ГАЙКА (M14) NUT (M14) |
1 | |
| 3 | 8M0204411 |
ANODE ANODE |
1 | |
| 4 | 4010610 |
ВИНТ (M6 x 10), нержавеющая сталь SCREW (M6 x 10) Stainless Steel |
1 | |
| 5 | 8M0204417 |
DOWEL Pin Slotted, M6 x 24 SS DOWEL Pin Slotted, M6 x 24 SS |
1 | |
| 6 | 8M0204415 |
CONDUIT Wire Harness, Short CONDUIT Wire Harness, Short |
1 | |
| 6 | 8M0204420 |
CONDUIT Wire Harness, Long CONDUIT Wire Harness, Long |
1 | |
| 6 | 8M0204422 |
CONDUIT Wire Harness, Xlong CONDUIT Wire Harness, Xlong |
1 | |
| 7 | 8M0204418 |
ORING 29.82 x 2.62 ORING 29.82 x 2.62 |
2 | |
| 8 | 8M0204406 |
WASHER FLAT 50.8 OD x 40.5 ID WASHER FLAT 50.8 OD x 40.5 ID |
1 | |
| 9 | 8M0204407 |
NUT TRUNION M38 NUT TRUNION M38 |
1 |
