Parts Catalog

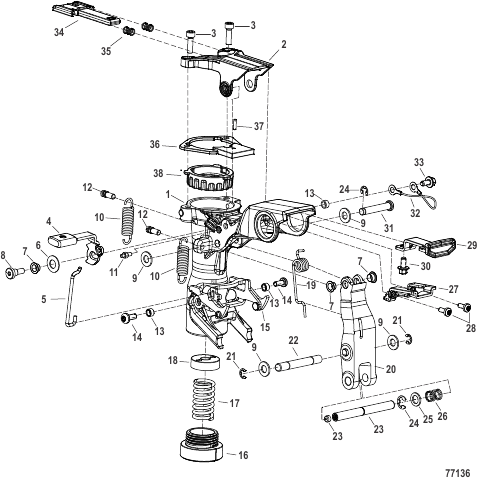

Swivel Bracket Tiller Handle Models

Parts (38)

#	Part Number	Description	Qty	Status
1	8M0204457	SWIVEL BRACKET SWIVEL BRACKET	1
10	8M0220011	SPRING Reverse Lock SPRING Reverse Lock	2
11	8M0204442	PIN Reverse Hook Stop PIN Reverse Hook Stop	1
12	8M0204445	PIN Reverse Hook Spring PIN Reverse Hook Spring	2
13	8M0204462	SPACER Reverse Hook SPACER Reverse Hook	3
14	8M0177539	SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD	2
15	8M0204458	REVERSE HOOK ASSEMBLY REVERSE HOOK ASSEMBLY	1
16	8M0204450	RETAINER SPRING RETAINER SPRING	1
17	8M0204465	SPRING Lift Assist SPRING Lift Assist	1
18	8M0204455	SPRING CUP Lift Assist SPRING CUP Lift Assist	1
19	8M0204447	SPRING TORSION Tilt Bracket SPRING TORSION Tilt Bracket	1
2	8M0221435	BRACKET Quick Release BRACKET Quick Release	1
20	8M0221436	BRACKET Tilt BRACKET Tilt	1
21	8M0204451	RETAINING RING RETAINING RING	3
22	8M0204439	PIN Reverse Lock PIN Reverse Lock	1
23	8M0223118	PIN CAP ASSEMBLY Tilt Position PIN CAP ASSEMBLY Tilt Position	1
24	8M0204443	RETAINING RING E-Style 9MM- 12 RETAINING RING E-Style 9MM- 12	1
25	37828	ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь WASHER (.390 x .625 x .062) Stainless Steel	1
26	8M0204444	SPRING SPRING	1
27	8M0204466	BRACKET Lock Retainer BRACKET Lock Retainer	1
28	8M0142918	ВИНТ (M5 x 12) SCREW (M5 x 12)	2
29	8M0204474	BRACKET Probe Lock BRACKET Probe Lock	1
3	8M0142829	ВИНТ (M6 x 20) SCREW (M6 x 20)	2
30	8M0103804	ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel	1
31	8M0204437	TILT PIN TILT PIN	1
32	8M0214907	CABLE ASSEMBLY Ground CABLE ASSEMBLY Ground	1
33	8M0177539	SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD	1
34	8M0221439	LOCK Probe LOCK Probe	1
35	8M0221440	SPRING OD 7.8 x 22.35 SPRING OD 7.8 x 22.35	2
36	8M0221441	PLATE Anti-Rotation PLATE Anti-Rotation	1
37	8M0221442	DOWEL PIN 3 x 12 LG DOWEL PIN 3 x 12 LG	1
38	8M0221446	BEARING Anti-Rotation BEARING Anti-Rotation	1
4	8M0204441	LEVER ASSEMBLY LEVER ASSEMBLY	1
5	8M0204461	WIRE FORM Reverse Hook WIRE FORM Reverse Hook	1
6	12024	ШАЙБА (0.402 x 0.787 x 0.039, Bellevi) WASHER (.402 x .787 x .039 Bellevi)	1
7	8M0204370	BEARING FLANGE (8 MM x 9 MM) BEARING FLANGE (8 MM x 9 MM)	3
8	8M0204446	BOLT Shoulder BOLT Shoulder	1
9	8M0204690	WASHER (.344 x .688 x .065) Stainless Steel WASHER (.344 x .688 x .065) Stainless Steel	4
