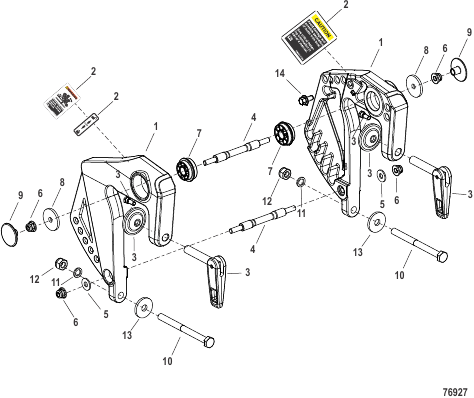

Clamp Brackets Tiller Handle Models
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0208370 |
TRANSOM HARDWARE KIT TRANSOM HARDWARE KIT |
1 | |
| 1 | 8M0220006 |
CLAMP BRACKET Port CLAMP BRACKET Port |
1 | |
| 1 | 8M0220007 |
CLAMP BRACKET Starboard CLAMP BRACKET Starboard |
1 | |
| 10 | 8M0214889 |
SCREW (M8 x 95) HEX HD CAP SCREW (M8 x 95) HEX HD CAP |
2 | |
| 11 | 8M0204931 |
WASHER (M8 x 12.80 x 1.50) WASHER (M8 x 12.80 x 1.50) |
2 | |
| 12 | 401378 |
ГАЙКА (M8) NUT (M8) |
2 | |
| 13 | 43430 |
ШАЙБА WASHER |
2 | |
| 14 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 2 | 8M0215980 |
DECAL SET Transom Set Contains Lock/Unlock Trim decal, Warning Secure Transom decal and Caution Trailering Decal DECAL SET Transom Set Contains Lock/Unlock Trim decal, Warning Secure Transom decal and Caution Trailering Decal |
1 | |
| 3 | 8M0204426 |
THUMB SCREW ASSEMBLY THUMB SCREW ASSEMBLY |
2 | |
| 4 | 8M0204431 |
STUD Transom STUD Transom |
2 | |
| 5 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
2 | |
| 6 | 892233 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
4 | |
| 7 | 8M0204435 |
BUSHING Swivel Bracket BUSHING Swivel Bracket |
2 | |
| 8 | 8M0204433 |
WASHER 29 OD x 6.6 ID x 3 WASHER 29 OD x 6.6 ID x 3 |
2 | |
| 9 | 8M0204434 |
COVER Tilt Pin COVER Tilt Pin |
2 |
