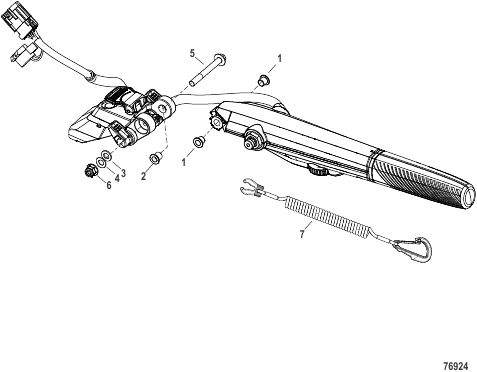

Steering Mounting, Tiller Handle Models
Parts (8)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0204358 |
TILLER HANDLE ASSEMBLY TILLER HANDLE ASSEMBLY |
1 | |
| 1 | 8M0204381 |
BUSHING Flange, 8MM X 10MM BUSHING Flange, 8MM X 10MM |
2 | |
| 2 | 8M0204372 |
SPACER ID 8 x OD 10, FLG OD 15 SPACER ID 8 x OD 10, FLG OD 15 |
1 | |
| 3 | 8M0207778 |
WASHER .344 x .625 x.063 WASHER .344 x .625 x.063 |
1 | |
| 4 | 8M0204373 |
WASHER BELLEVILLE 8.2x16x1.15 WASHER BELLEVILLE 8.2x16x1.15 |
1 | |
| 5 | 8M0221651 |
SCREW M8 x 1.25-65 HEX HD CAP SCREW M8 x 1.25-65 HEX HD CAP |
1 | |
| 6 | 826365 |
ГАЙКА (M8) NUT (M8) |
1 | |
| 7 | 8M0164892 |
LANYARD ASSEMBLY 54 Inches LANYARD ASSEMBLY 54 Inches |
1 | discontinued |
