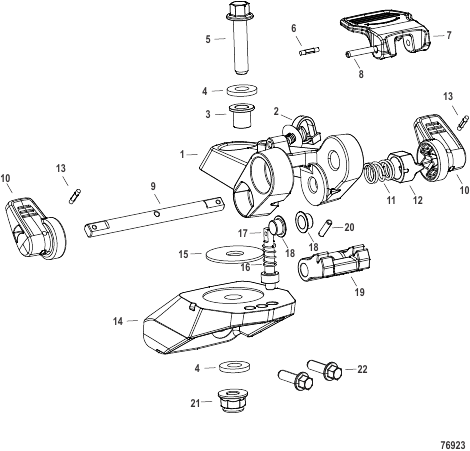

Steering Bracket, Tiller Handle Models
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0204358 |
TILLER HANDLE ASSEMBLY TILLER HANDLE ASSEMBLY |
1 | |
| 1 | 8M0204362 |
BRACKET Tiller Steering BRACKET Tiller Steering |
1 | |
| 10 | 8M0204374 |
TILT LEVER Tilt Lock TILT LEVER Tilt Lock |
2 | |
| 11 | 8M0204364 |
SPRING Throttle Friction SPRING Throttle Friction |
1 | superseded |
| 12 | 8M0204365 |
TILT LEVER Cam Plunger TILT LEVER Cam Plunger |
1 | |
| 13 | 8M0204367 |
PIN Roll PIN Roll |
2 | |
| 14 | 8M0204360 |
BRACKET Tiller Yaw BRACKET Tiller Yaw |
1 | |
| 15 | 8M0204361 |
WASHER Thrust, OD 35 X ID 10 WASHER Thrust, OD 35 X ID 10 |
1 | |
| 16 | 8M0204371 |
SPRING Compression SPRING Compression |
1 | |
| 17 | 8M0204368 |
SHAFT Yaw Release SHAFT Yaw Release |
1 | |
| 18 | 8M0204370 |
BEARING FLANGE (8 MM x 9 MM) BEARING FLANGE (8 MM x 9 MM) |
2 | |
| 19 | 8M0204366 |
LOCK TAB Verticle Tilt LOCK TAB Verticle Tilt |
1 | |
| 2 | 8M0161118 |
CLIP Cable Tie CLIP Cable Tie |
1 | |
| 20 | 8M0214904 |
ROLL PIN ROLL PIN |
1 | |
| 21 | 8M0179913 |
NUT (M8) NUT (M8) |
1 | |
| 22 | 8M0159635 |
SCREW M8 x 25 HEX FLANGE HD SCREW M8 x 25 HEX FLANGE HD |
2 | |
| 3 | 8M0204372 |
SPACER ID 8 x OD 10, FLG OD 15 SPACER ID 8 x OD 10, FLG OD 15 |
1 | |
| 4 | 8M0218997 |
WASHER Nylon WASHER Nylon |
2 | |
| 5 | 8M0103814 |
ВИНТ (M8 x 35 мм) SCREW (M8 x 35 MM) |
1 | |
| 6 | 8M0219946 |
GROOVE PIN Type E GROOVE PIN Type E |
1 | |
| 7 | 8M0204369 |
LEVER Yaw Release LEVER Yaw Release |
1 | |
| 8 | 73194 |
ШТИФТ Ролик (0.125 x 1.12) PIN Roll (.125 x 1.12) |
1 | |
| 9 | 8M0204363 |
SHAFT Verticle Tilt SHAFT Verticle Tilt |
1 |
