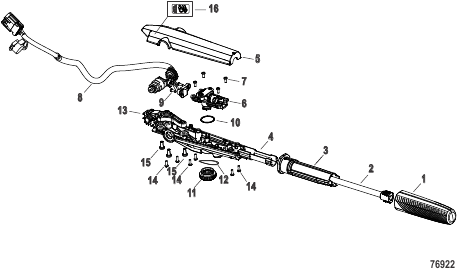

Steering Tiller Handle Models
Parts (17)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0204358 |
TILLER HANDLE ASSEMBLY TILLER HANDLE ASSEMBLY |
1 | |
| 1 | 8M0214872 |
GRIP Outer GRIP Outer |
1 | |
| 10 | 8M0204378 |
SNAP RING External, 29MM Shaft SNAP RING External, 29MM Shaft |
1 | |
| 11 | 8M0204377 |
WHEEL Throttle Friction WHEEL Throttle Friction |
1 | |
| 12 | 8M0221633 |
WASHER Curved, Spring WASHER Curved, Spring |
1 | |
| 13 | 8M0214876 |
LEVER ARM Tiller Handle LEVER ARM Tiller Handle |
1 | |
| 14 | 8M0214877 |
SCREW M4 x 12 SCREW M4 x 12 |
6 | |
| 15 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
3 | |
| 16 | 8M0214894 |
DECAL SET Instruction Set contains Attach Lanyard Decal DECAL SET Instruction Set contains Attach Lanyard Decal |
1 | |
| 2 | 8M0214875 |
SHAFT Throttle SHAFT Throttle |
1 | |
| 3 | 8M0204379 |
GRIP Inner GRIP Inner |
1 | |
| 4 | 8M0204376 |
CHASSIS Tiller Handle CHASSIS Tiller Handle |
1 | |
| 5 | 8M0214874 |
TOP COVER Tiller Handle Decaled with Attach Lanyard Decal TOP COVER Tiller Handle Decaled with Attach Lanyard Decal |
1 | |
| 6 | 8M0204380 |
THROTTLE ASSEMBLY THROTTLE ASSEMBLY |
1 | |
| 7 | 8M0214905 |
SCREW (M4 x .7 x 10) SCREW (M4 x .7 x 10) |
4 | |
| 8 | 8M0204389 |
HARNESS Tiller Handle HARNESS Tiller Handle |
1 | |
| 9 | 87775510 |
ВИНТ (M4 x 10) SCREW (M4 x 10) |
2 |
